Thread: L322 phone cradle mounting point

  1. 24th August 2017, 04:24 PM #1
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0

    L322 phone cradle mounting point

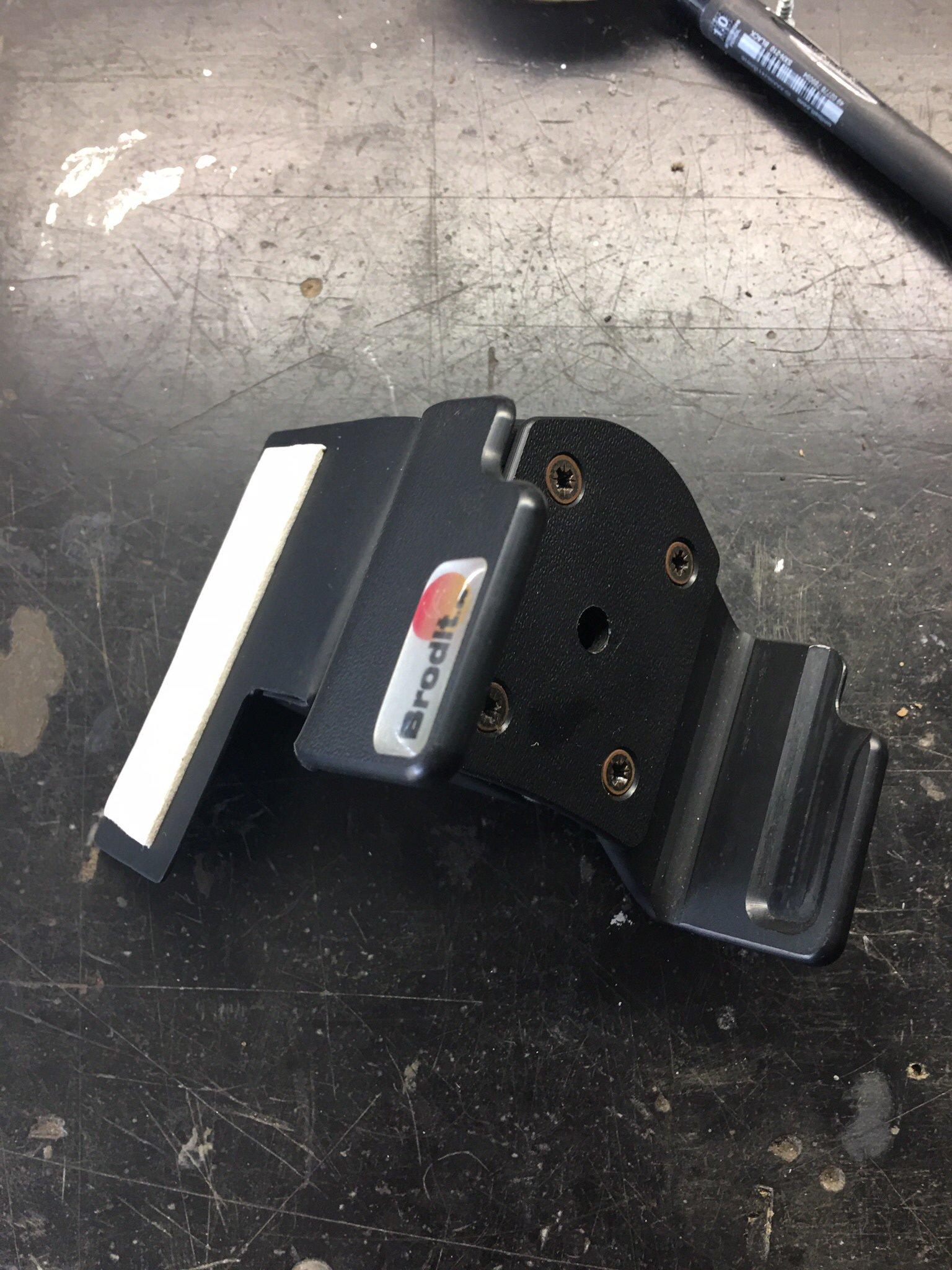

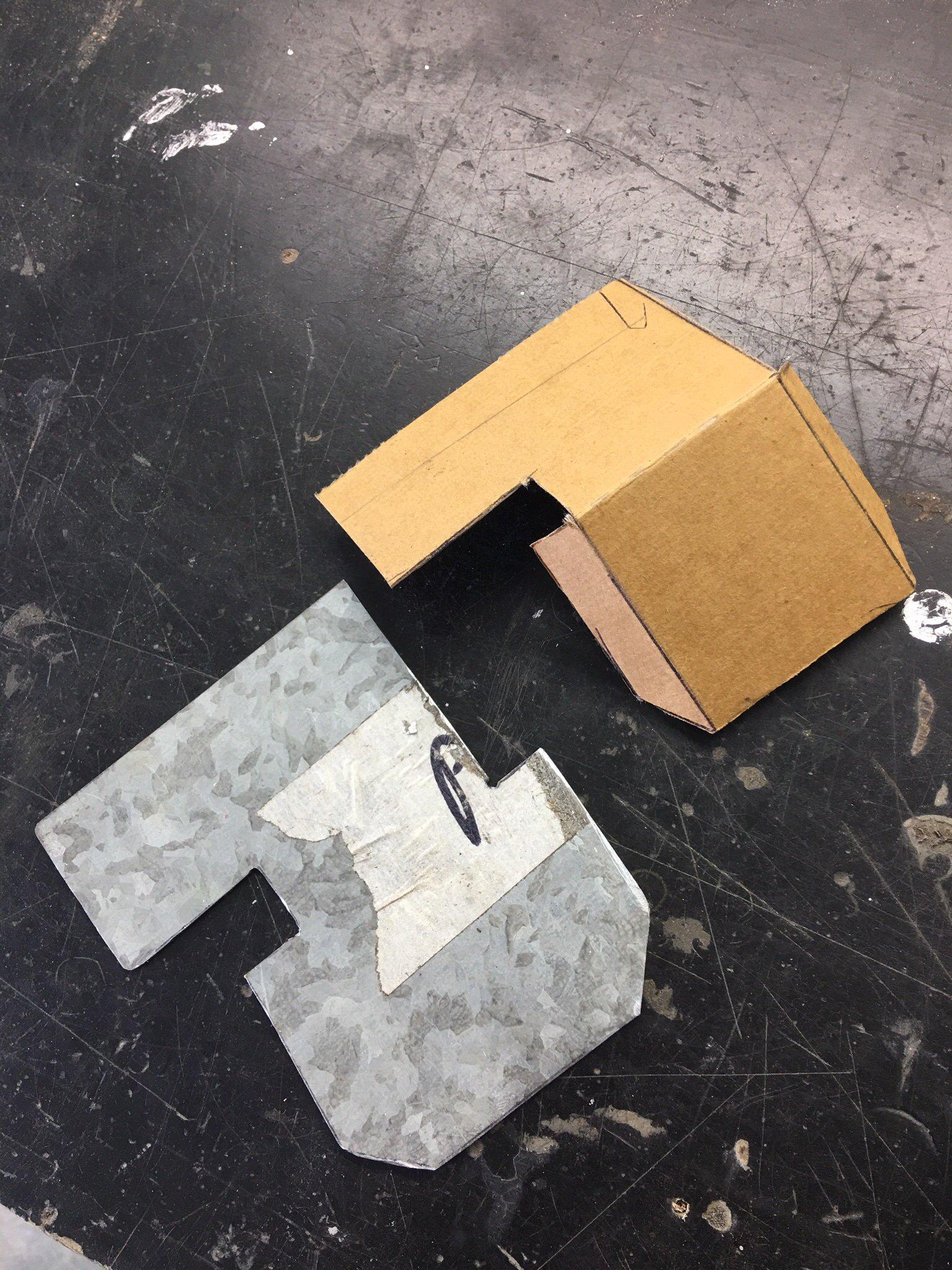

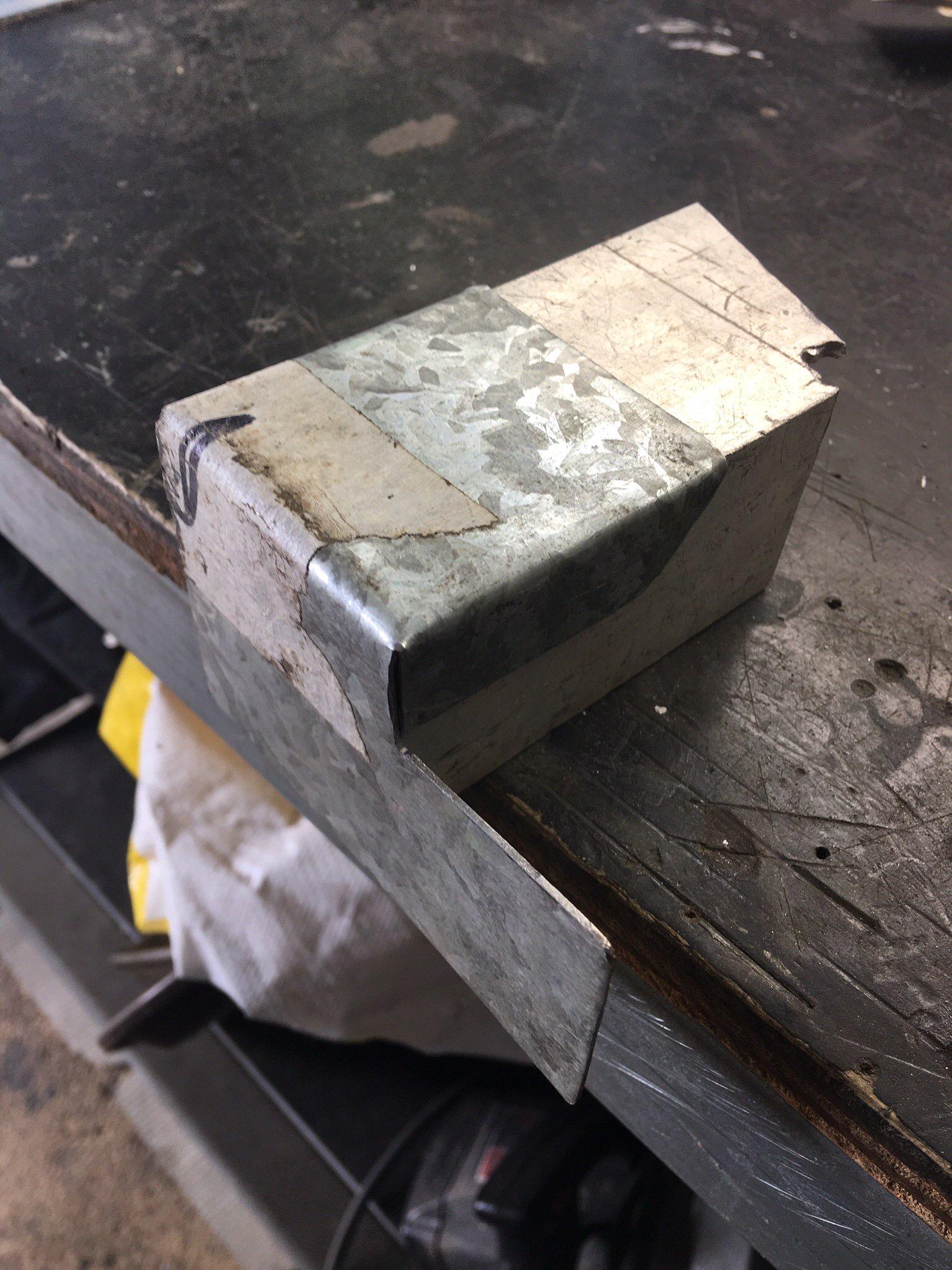

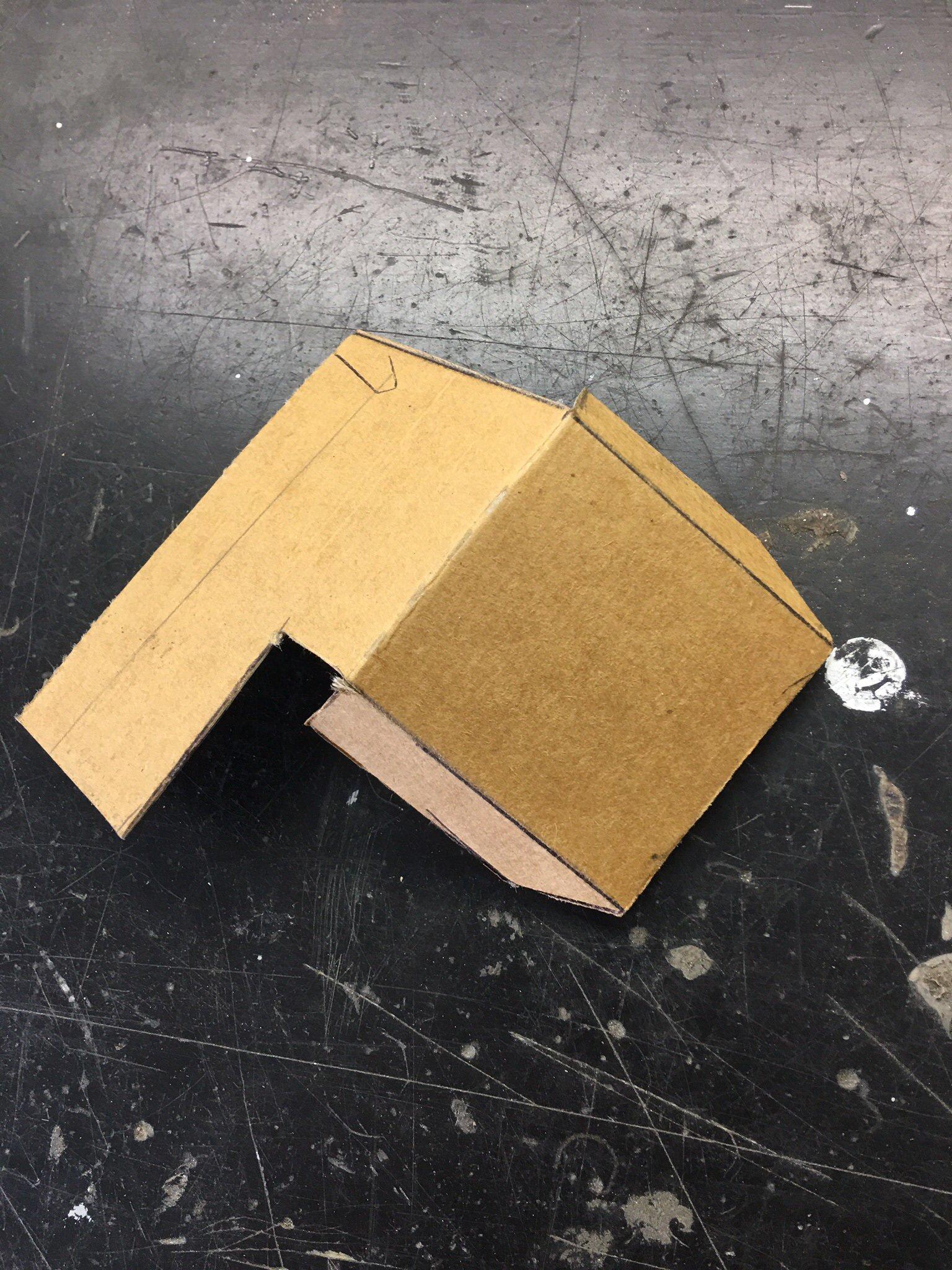

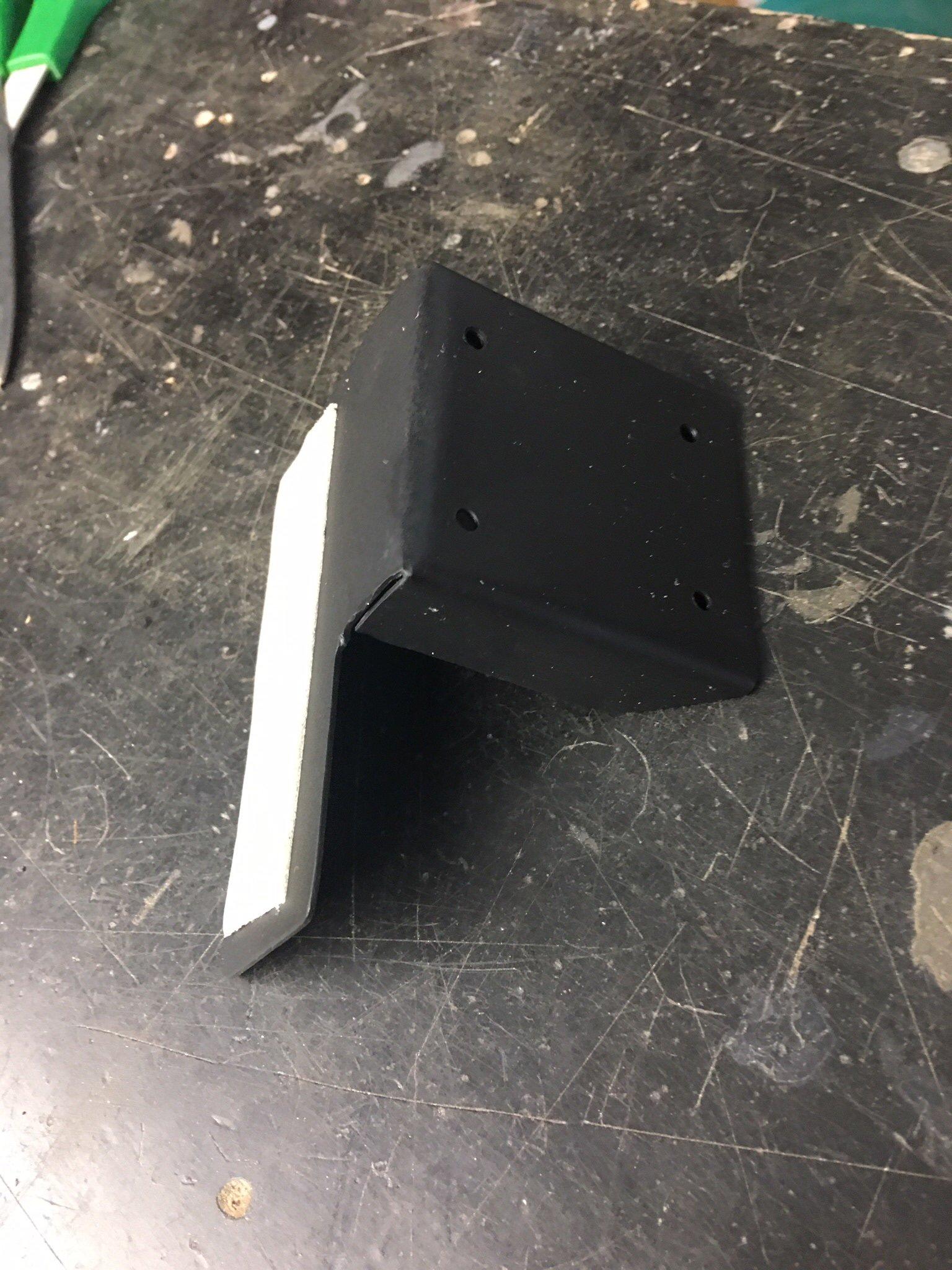

    A few months ago I made this mounting point for a phone cradle. I did this to avoid drilling into the dash anywhere.

    Here are a few pics in case someone wants to do something similar.




    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
  2. 24th August 2017, 04:27 PM #2
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0



    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
  3. 24th August 2017, 04:34 PM #3
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0

    L322 phone cradle mounting point

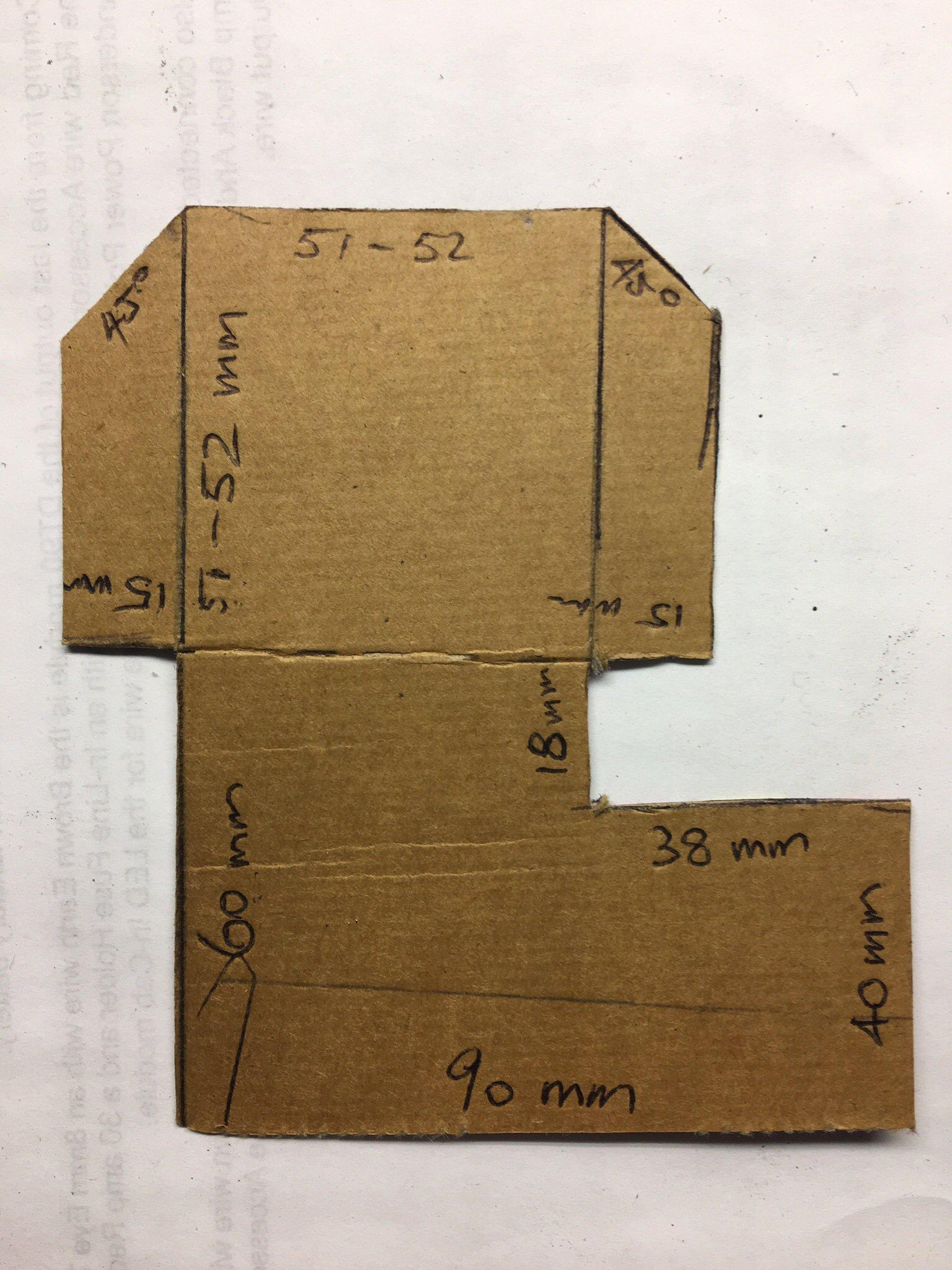

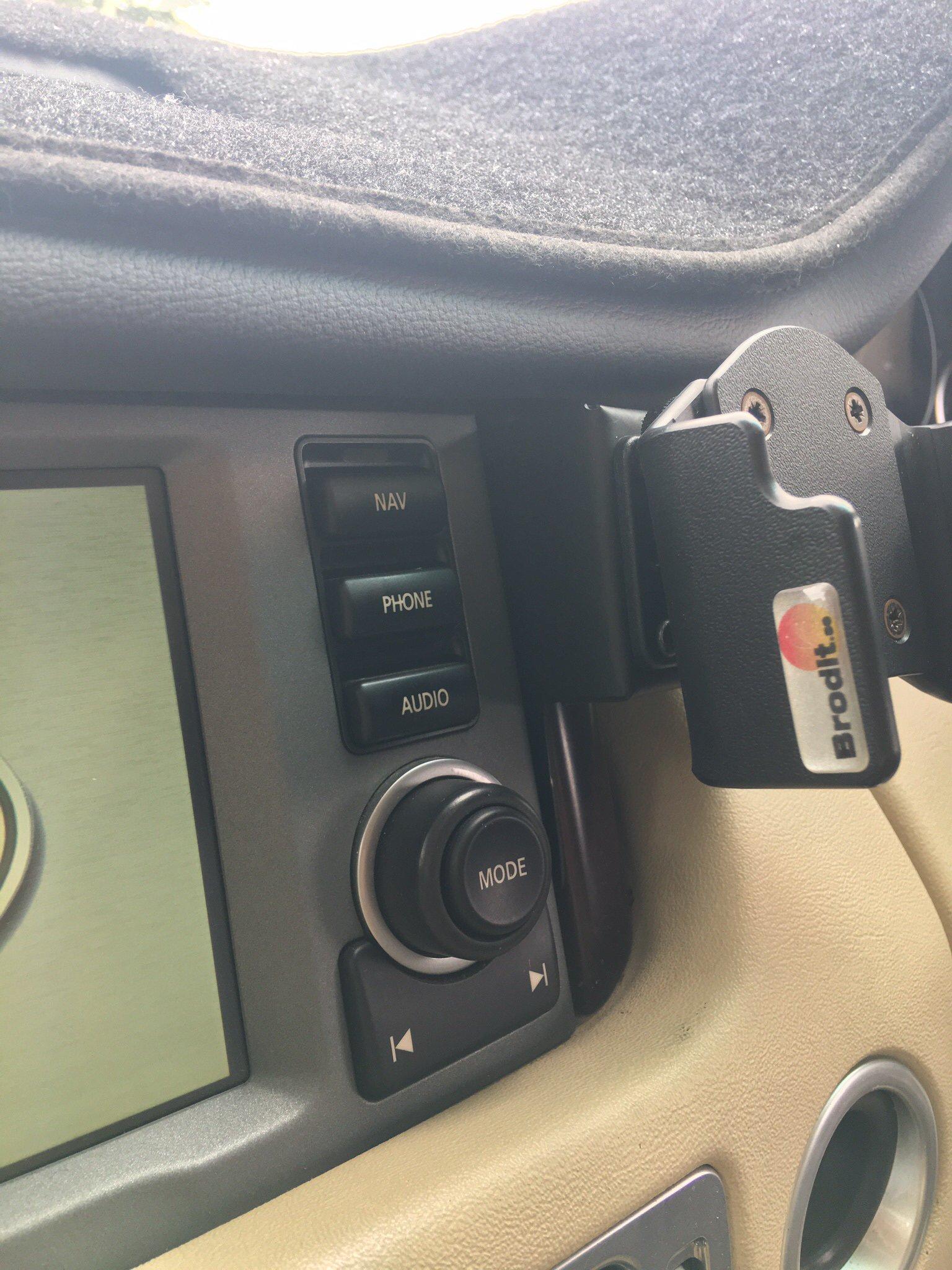

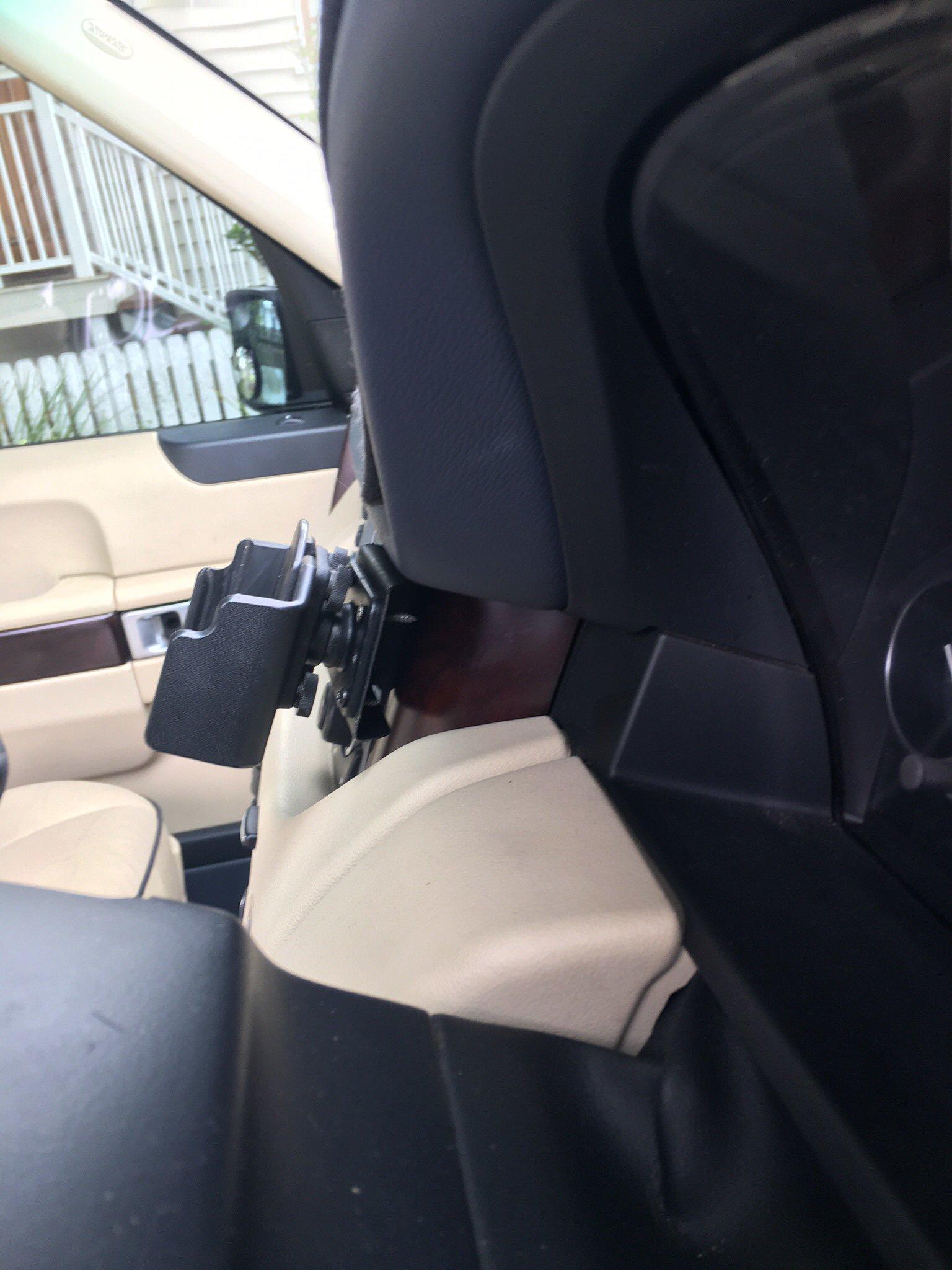

    It's mounted by sliding the 90mm edge (pic above) in between the "wood" trim and radio head unit. I opened a gap using a plastic spatula. I initially tried double side white tape to help secure the mount. But that didn't work well, so smeared a very little bit of silicon onto the mount. When I removed the spatula the gap closed and held the mount firmly in place.
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
  4. 24th August 2017, 04:51 PM #4
    Chrisnussey's Avatar
    Chrisnussey
    Chrisnussey is offline Fossicker Subscriber
    Join Date
    Jan 2014
    Location
    Hodgson Vale
    Posts
    43
    Total Downloaded
    0
    Very similar to the mount I bought online for $50.
    www.holdmyphone.com.au/mounts/car/land-rover/range-rover/range-rover-02-12/centre-mount.html

    Chris
    Reply With Quote Reply With Quote
  5. 24th August 2017, 04:57 PM #5
    Judo's Avatar
    Judo
    Judo is offline ChatterBox Silver Subscriber
    Join Date
    Feb 2012
    Location
    Parkdale, Melbourne
    Posts
    2,919
    Total Downloaded
    0
    Brilliant. What thickness is the sheet metal?

    $50 option is also tempting!
    - Justin

    '95 Disco 300TDI - sold
    '86 County 110 Isuzu
    2006 Range Rover Vogue td6
    Reply With Quote Reply With Quote
  6. 24th August 2017, 05:05 PM #6
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0
    Quote Originally Posted by Chrisnussey View Post
    Very similar to the mount I bought online for $50.
    www.holdmyphone.com.au/mounts/car/land-rover/range-rover/range-rover-02-12/centre-mount.html

    Chris
    Correct.
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
  7. 24th August 2017, 05:13 PM #7
    rar110's Avatar
    rar110
    rar110 is offline ForumSage Subscriber
    Join Date
    Jan 1970
    Location
    Brisbane, Queensland
    Posts
    5,778
    Total Downloaded
    0

    L322 phone cradle mounting point

    Quote Originally Posted by Judo View Post
    Brilliant. What thickness is the sheet metal?

    $50 option is also tempting!
    I'd be guessing. Maybe 0.9mm.

    Things plastic seem to get broken in my car. So a plastic mount didn't appeal.

    The one Chris put up is probably very good quality. I couldn't find one for $50 delivered when looking. From memory about twice that.

    This thing cost a little time, and steel/paint I already had. So not much. Functions perfectly.
    L322 tdv8 poverty pack - wow
    Perentie 110 wagon ARN 49-107 (probably selling) turbo, p/steer, RFSV front axle/trutrack, HF, gullwing windows, double jerrys etc.
    Perentie 110 wagon ARN 48-699 another project
    Track Trailer ARN 200-117
    REMLR # 137
    Reply With Quote Reply With Quote
  8. 24th August 2017, 08:08 PM #8
    rrturboD's Avatar
    rrturboD
    rrturboD is offline Master Subscriber
    Join Date
    Jan 1970
    Location
    Canberra, Australia
    Posts
    786
    Total Downloaded
    0
    I have been using one of the 'holdmyphone' frames since December last year. I used a Quadlock mount and use it for phone or 7" tablet. I have not yet used the supplied double sided tape, so in rough country it does slip down a little, but so far never fallen out.
    Michael T
    2011 L322 Range Rover 4.4 TDV8 Vogue
    Aussie '88 RR Tdi300 (+lpg), Auto (RIP ... now body removed after A pillar, chassis extension to 130 & fire tender tray.)
    Reply With Quote Reply With Quote
  9. 1st September 2017, 11:31 AM #9
    Judo's Avatar
    Judo
    Judo is offline ChatterBox Silver Subscriber
    Join Date
    Feb 2012
    Location
    Parkdale, Melbourne
    Posts
    2,919
    Total Downloaded
    0
    I ordered the one from the link. Straight away got an email saying it's on backorder but should be available within a week which is ok.
    - Justin

    '95 Disco 300TDI - sold
    '86 County 110 Isuzu
    2006 Range Rover Vogue td6
