    If the 2 resistors are joined together without the earth connection then current from a live blinker wire will flow through both resistors to the other blinker wire as the LED blinkers require very little current to operate, much less than that lost (converted to heat) by the resistors.

    I've been mindful of our history since you joined the forum. LY was worse drought than the year before but this year is looking promising.
    MY21.5 L405 D350 Vogue SE with 19s. Produce LLAMS for LR/RR, Jeep GC/Dodge Ram
    VK2HFG and APRS W1 digi, RTK base station using LoRa
    Reply With Quote Reply With Quote
  2. 23rd July 2020, 02:30 PM #32
    Numb Thumbs's Avatar
    Numb Thumbs
    Numb Thumbs is offline Master Supporter
    Join Date
    Nov 2009
    Location
    Melbourne
    Posts
    260
    Total Downloaded
    0
    So, as long as the resistors are connected to earth at one end and to the separate indicator wires at the other, all is well? It is basically the same as wiring in a 21 Watt globe. All earth wires are a common ground, so connecting the two earth wires to the same earth cable is okay?

    But, the switches should be on the indicator side of the resistor? Or doesn't it matter?

    I'll keep my fingers and toes crossed for good rains for you. It was certainly dry along the Darling.

    Cheers
    Numb Thumbs
    Reply With Quote Reply With Quote
  3. 23rd July 2020, 03:14 PM #33
    Graeme
    Graeme is offline Swaggie Vendor
    Join Date
    Jan 1970
    Location
    NSW SW Slopes
    Posts
    12,030
    Total Downloaded
    0
    The switch (pair) can be fitted to either side of the resistors and the earths are common as for 2 globes.

    We may shortly make a quick trip to Wentworth then up the Darling a little, possibly to Menindee. I was last up that way in 96 en-route to the corner, so longing for a revisit.
    MY21.5 L405 D350 Vogue SE with 19s. Produce LLAMS for LR/RR, Jeep GC/Dodge Ram
    VK2HFG and APRS W1 digi, RTK base station using LoRa
    Reply With Quote Reply With Quote
  4. 23rd July 2020, 03:24 PM #34
    Numb Thumbs's Avatar
    Numb Thumbs
    Numb Thumbs is offline Master Supporter
    Join Date
    Nov 2009
    Location
    Melbourne
    Posts
    260
    Total Downloaded
    0
    Thanks, Graeme.

    Here is the link to the writeup from our recent trip:

    A Darling River Run in the times of Covid - Out and about with the Vista - Australia4WD Forum

    Have a great time - we did!

    Cheers
    Numb Thumbs
    Reply With Quote Reply With Quote
  5. 24th July 2020, 12:40 PM #35
    Numb Thumbs's Avatar
    Numb Thumbs
    Numb Thumbs is offline Master Supporter
    Join Date
    Nov 2009
    Location
    Melbourne
    Posts
    260
    Total Downloaded
    0
    Job done. Thank you Graeme and Hugh Jars!

    I have wired up the resistors and they seem to work.

    The wires you are looking for are plain yellow and plain green, as per the Australian Standard.

    Cheers
    Numb Thumbs

    Here are some photos after the effect...

    Overview:



    In a bit closer:



    Wiring:

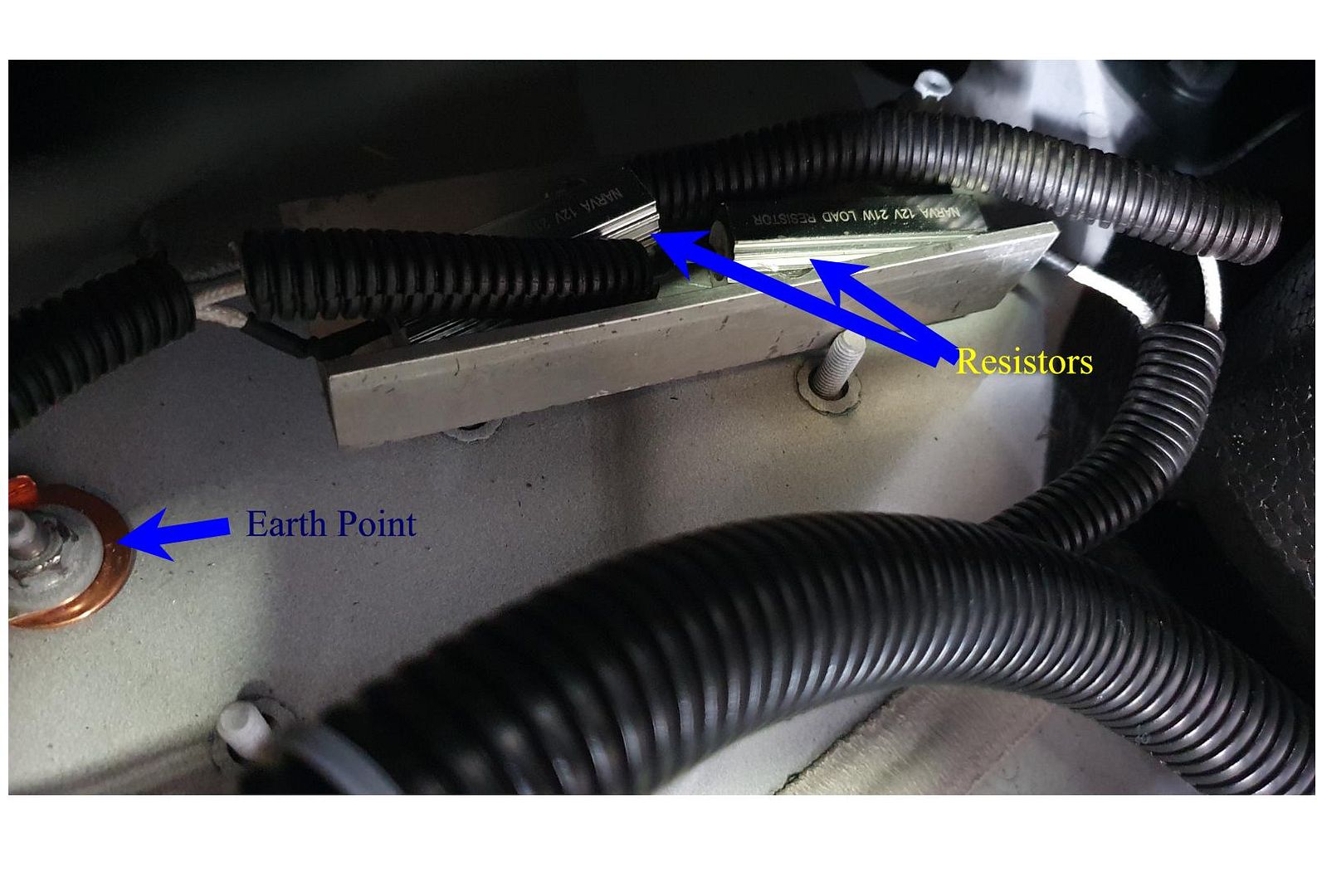

    Resistors closeup:
