Thread: Engine Bay Fuse Panel

  1. 25th November 2019, 12:14 PM #1
    Numb Thumbs's Avatar
    Numb Thumbs
    Numb Thumbs is offline Master Supporter
    Join Date
    Nov 2009
    Location
    Melbourne
    Posts
    260
    Total Downloaded
    0

    Engine Bay Fuse Panel

    My manual assures me I have a fuse panel under the bonnet. I can't find it! Does anyone know where it is?

    I have removed the two covers in front of the windscreen and there are no fuses there.

    Any ideas??? Mine is an SE SD6.

    Cheers
    Numb Thumbs
    Reply With Quote Reply With Quote
  2. 25th November 2019, 02:10 PM #2
    greg-g
    greg-g is offline Master Supporter
    Join Date
    Jan 1970
    Location
    Northern Tasmania
    Posts
    143
    Total Downloaded
    0
    In my MY2017 SE its under a cover that's under a cover on the left back of the engine compartment (Passenger side)
    The attached document shows the LHD position for the front and passenger fuse boxes.
    There is also a lot of other information here for the 2017 models that I expect is still the same that I think really should be in the users handbook. This is from the workshop manual.
    Attached Files Attached Files
    D2a (Sold)
    MY17 D5 SD4 SE (Sold)
    MY19 D5 SD4 SE (with all the options I want)
    Reply With Quote Reply With Quote
  3. 25th November 2019, 02:48 PM #3
    Numb Thumbs's Avatar
    Numb Thumbs
    Numb Thumbs is offline Master Supporter
    Join Date
    Nov 2009
    Location
    Melbourne
    Posts
    260
    Total Downloaded
    0
    greg-g

    Thanks for the response. I looked there and did not see anything - but I will have another look.

    The TD6 and SD6 engine bays are quite different. For example, the main difference is the second air box on the driver's side, like on the supercharged six cylinder petrol models. The engine bay is very full compared to the TD6.

    Cheers
    Numb Thumbs

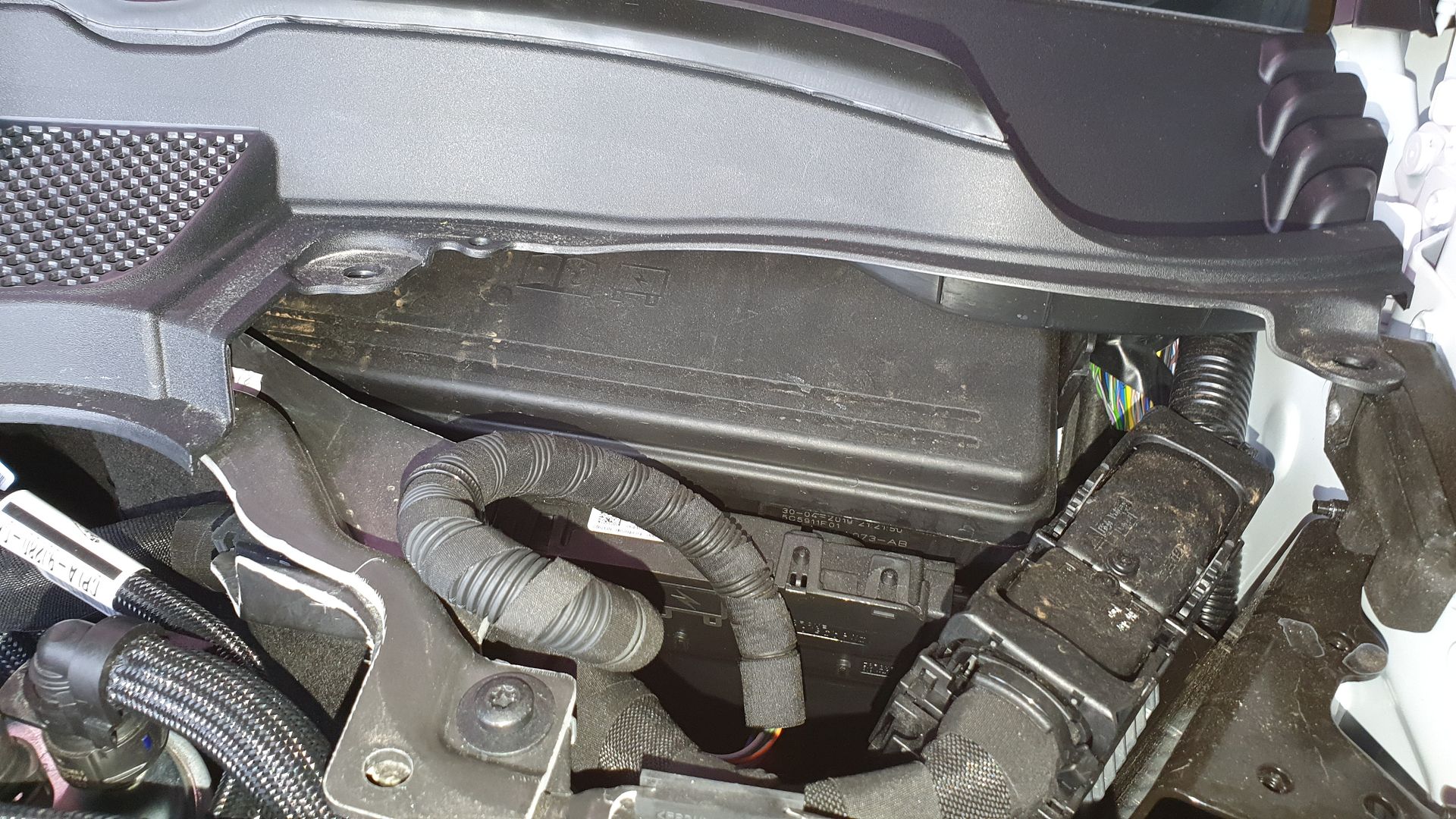

    PS OMG, there is one! To get to it you have to remove the black trim across the whole width of the bottom of the windscreen! You would not want to be in a hurry!!! And, of course, it is marked on the wrong side in the manual...
