Thread: D5 Battery Charging

  1. #1
    Join Date
    Dec 2012
    Location
    Coffs Harbour
    Posts
    4
    Total Downloaded
    0

    D5 Battery Charging

    My D5 is sitting in the shed due to the disease and the battery is weak. The handbook indicates that the battery has to be removed from the vehicle to charge it. What is the easiest way to charge the battery and maintain charge while the vehicle is not being used (we are in lockdown)?
    Thanks,
    Smokey

  2. #2
    Join Date
    Nov 2009
    Location
    Melbourne
    Posts
    260
    Total Downloaded
    0
    A lot of owners, myself included, put a battery charger on the battery every two weeks or so. Some use the jumper terminals under the bonnet but this requires the bonnet to be open. My first battery was replaced under warranty because it had gone flat and wouldn't charge.

    If you have an Anderson plug on the rear for a trailer that is not connected via an isolator - as is my case, directly to the starter battery via a fuse - you can easily charge through that. Some have used a 12 pin trailer plug with the charger connected to the earth and constantly live 12 Volt pins.

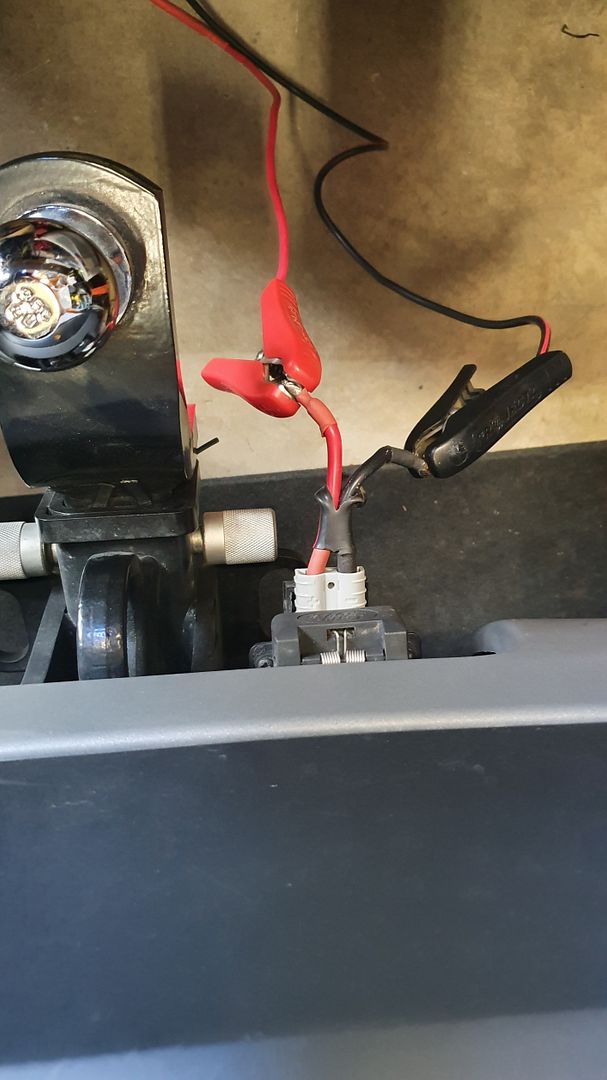

    In my case, I simply soldered a short length of 6B&S cable to an Anderson plug and left the ends of the cables bare and then tinned them. I simply plug the alligator clips of the charger to the cable ends and plug the Anderson plug in to the car.

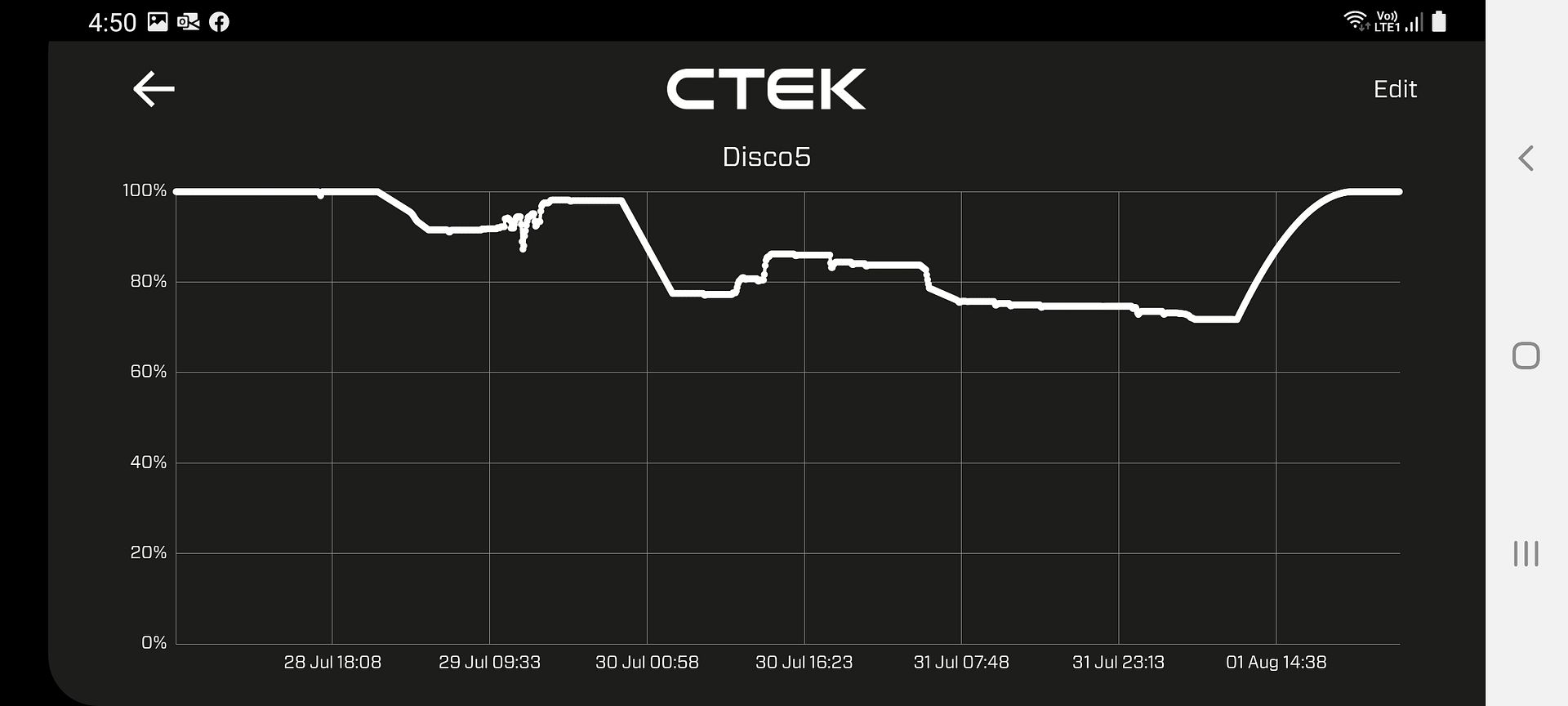

    Works for me! I find if I double lock - press the locking button on the remote twice - the battery stays charged longer as it shuts down the computers in the car better. I have a Voltage monitor on the starter battery and the readout is quite interesting. The battery will stay at 100% SOC for a while, then drop in big steps suddenly.



    I find it bizarre, but I assume it is computers turning on and doing checks. You can see where I plugged the charger in on the evening of the 1st. The 29th was a short drive to the supermarket.

    Cheers from Lockdown
    Numb Thumbs
    Fuji White 2019 SE Sd6

  3. #3
    Join Date
    Dec 2012
    Location
    Coffs Harbour
    Posts
    4
    Total Downloaded
    0
    Thanks for that. Mine is a 2017 and on the original battery which I think is a bit weak anyway. When I enquired at the dealer recently I was told that a replacement battery was $800. I do have a rear Anderson plug but I am pretty sure that it is isolated. Will check that tomorrow. If I charge via the jump terminals with the bonnet open is that likely to damage the computer or other electronics?
    Cheers,
    Smokey

  4. #4
    Join Date
    Nov 2009
    Location
    Melbourne
    Posts
    260
    Total Downloaded
    0
    No, just annoying to have to have the bonnet open.

    Cheers
    Numb Thumbs
    Fuji White 2019 SE Sd6

  5. #5
    Join Date
    Sep 2021
    Location
    Melbourne
    Posts
    11
    Total Downloaded
    0
    Quote Originally Posted by Numb Thumbs View Post
    No, just annoying to have to have the bonnet open.

    Cheers
    Numb Thumbs
    FYI the battery in the MY22 is in the driver's side rear quarter panel. Appears OK to connect charger direct. Refer to US accessories instructions:
    LAND ROVER ACCESSORY FITTING INSTRUCTIONS
    My C-tek is connected that way with no issues.

  6. #6
    Join Date
    Jan 1970
    Location
    Pennant Hills, Sydney
    Posts
    1,415
    Total Downloaded
    0
    I was charging through trailer plug since have fitted a second battery and isolater so now charge through that via solar panels, have both cars, boat and trailer brake break away batteries all getting charged via solar panels of different sizes.
    disco seriesII mods so far:-bullbar,hyd winch,
    detriot locker,lsd front,C.D.L kit,chipped and bigger intercooler,2" lift,rock sliders, lsd in transfer case, modified auto trans.

    In the event of nuclear war,Disregard this message
