Thread: Crump & Cornish

  1. #1
    Join Date
    Apr 2011
    Location
    Wandong,Victoria,Australia
    Posts
    1,602

    Crump & Cornish

    Hi All,

    I've finally started work on my C&C trailer - and I need some help...

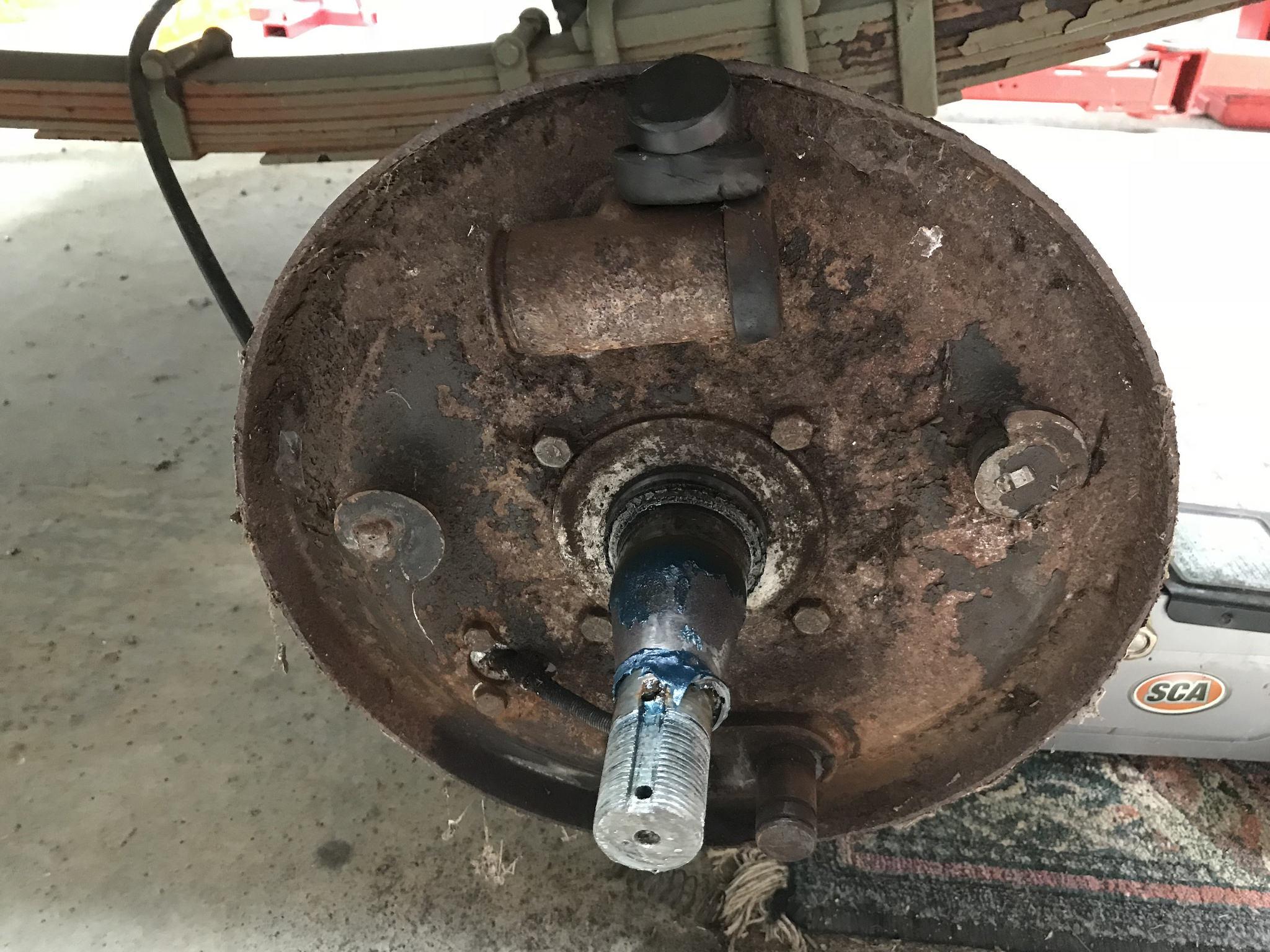

    I managed to remove the drum (thanks to Homestar) and as expected, I don't have any shoes:

    IMG_2007 by Grey Ghost, on Flickr

    Q: Can somebody please provide me with a photo of how the shoes are fitted? And how the handbrake is fitted?

    Q: Can somebody please tell me where I can purchase the shoes from? (What model number, etc?)

    I have been told that the shoes are the same as a Series vehicle - however I test fitted some shoes from a Series II LWB and a Seres 2A LWB - and they don't look like they fit to me...

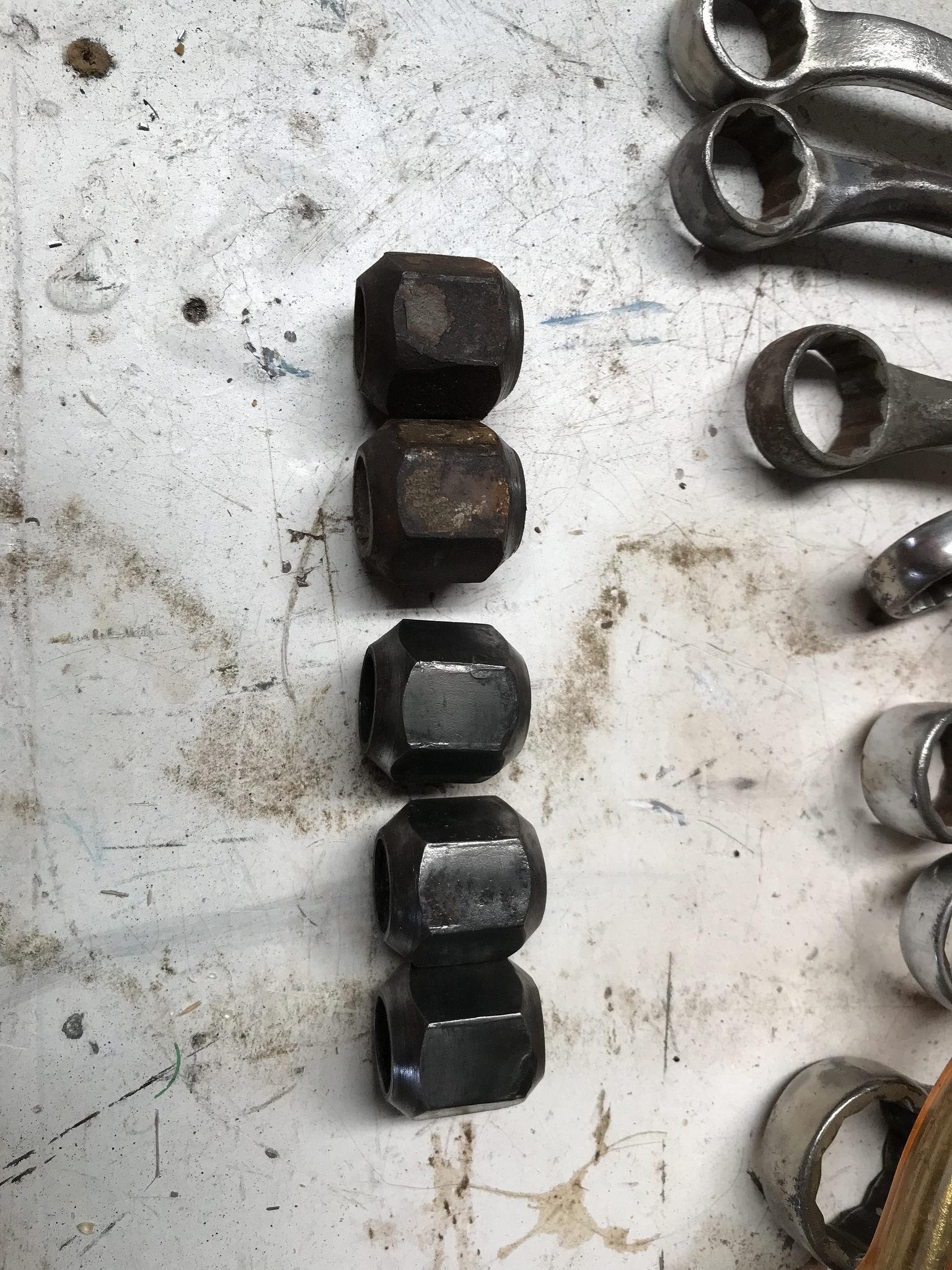

    I've started to clean-up the backing plate. I also started to clean up the wheel nuts..

    IMG_2009 by Grey Ghost, on Flickr

    I would love to get this trailer on the road...

    I will try over in REMLR - but so far I haven't had much luck...

    Cheers,
    GG.
    1990 "Big Red" Range Rover
    1983 "The 101" 101 Forward Control
    1988 "Lizzie" FFR Perentie
    1961 "The Grey Ghost" LWB Series II Ute
    1960 "Roger" SWB Series II
    1976 "Max" 2 Door Range Rover Classic (being restored)
    1983 "Luke" Stage One V8 Station Wagon (next project)

  2. #2
    Mick_Marsh's Avatar
    Mick_Marsh is offline Super Moderator Silver Subscriber
    Join Date
    Nov 2009
    Location
    Western Victoria
    Posts
    14,162
    No. you won't get much luck. I need to get the innards for my BAE Systems trailer.

    I've been meaning to take my backing plates down to a brake place to get them to work it out.

    I'll post up a bit more info later. And pics.
    Unless otherwise stated, this post is the opinion of Mick_Marsh and should be read accordingly.

    Hybrid SIII Stage 1 cab on a RRC chassis

  3. #3
    Join Date
    Oct 2010
    Location
    Perth
    Posts
    1,193

    Time for me to take my wheels off?

    Hmmm. Maybe I'll take the Xmas break chance to take the wheels off mine and have a look?? Might prod me to finish painting the rear light housings and refit/rewire them.

  4. #4
    Join Date
    Oct 2010
    Location
    Perth
    Posts
    1,193
    Did either/both of you guys get your trailer brake shoes sorted? I've just finished one side of mine and about to start the other side (in a drive to get the trailer licensed). I fitted a new hydraulic ring hitch to the draw bar and ran new brake lines, cleaned up the slave cylinder, sand blasted and painted the drum backing plate and drum itself and reassembled - just have to do Sama again.

    If you still need photo's or measurements of the drum internals, please let me know and I'll get some while I've got the thing apart.

    Cheers

  5. #5
    Join Date
    Apr 2011
    Location
    Wandong,Victoria,Australia
    Posts
    1,602
    Hi JayBoRover,
    To date I have failed miserably.. I believe that the master cylinder is a PBR unit, but I have been unable to source shoes or slave clyinders. I bumped into another C&C owner in Corowa (a military show) and he confessed that.... He had no brakes installed.
    My current thoughts are to try and find a trailer builder or repairer, and fit some kind of disc brake system instead. A bit frustrating tbh.
    Cheers,
    GG
    1990 "Big Red" Range Rover
    1983 "The 101" 101 Forward Control
    1988 "Lizzie" FFR Perentie
    1961 "The Grey Ghost" LWB Series II Ute
    1960 "Roger" SWB Series II
    1976 "Max" 2 Door Range Rover Classic (being restored)
    1983 "Luke" Stage One V8 Station Wagon (next project)

  6. #6
    Join Date
    Apr 2011
    Location
    Wandong,Victoria,Australia
    Posts
    1,602
    PS - I now have a Perentie to go with the 101, so 2 vehicles to tow the trailer that I canít use! Crump & Cornish
    1990 "Big Red" Range Rover
    1983 "The 101" 101 Forward Control
    1988 "Lizzie" FFR Perentie
    1961 "The Grey Ghost" LWB Series II Ute
    1960 "Roger" SWB Series II
    1976 "Max" 2 Door Range Rover Classic (being restored)
    1983 "Luke" Stage One V8 Station Wagon (next project)

  7. #7
    Join Date
    Apr 2011
    Location
    Wandong,Victoria,Australia
    Posts
    1,602
    PPS - I asked on REMLR for some help and was pointed towards some American brakes off an old ford, they are available (very expensive) but looked like they would beed modification - I didnít want to spend big $ and risk wasting money without 100% assurance the parts would work.
    1990 "Big Red" Range Rover
    1983 "The 101" 101 Forward Control
    1988 "Lizzie" FFR Perentie
    1961 "The Grey Ghost" LWB Series II Ute
    1960 "Roger" SWB Series II
    1976 "Max" 2 Door Range Rover Classic (being restored)
    1983 "Luke" Stage One V8 Station Wagon (next project)

  8. #8
    Mick_Marsh's Avatar
    Mick_Marsh is offline Super Moderator Silver Subscriber
    Join Date
    Nov 2009
    Location
    Western Victoria
    Posts
    14,162
    I have spent a motsa so far and I'm still not convinced they are the right parts.
    Yep. Same part number as in the RPS but I don't see how they interact with the adjusters and there is still no method of attaching the hand brake. These are the brakes for my BAE Systems trailer. They use the same chassis as the Crump & Cornish.


    Interestingly, My Crump & Cornish has different brakes.


    Yes, John, photos of your brakes would be very helpful. Please post some up.
    Unless otherwise stated, this post is the opinion of Mick_Marsh and should be read accordingly.

    Hybrid SIII Stage 1 cab on a RRC chassis

  9. #9
    Join Date
    Jan 1970
    Location
    Narre Warren South
    Posts
    4,139
    Quote Originally Posted by grey_ghost View Post


    I have been told that the shoes are the same as a Series vehicle - however I test fitted some shoes from a Series II LWB and a Seres 2A LWB - and they don't look like they fit to me...

    Looks 'similar' to SWB Series brake but not the same.
    Can't quite see in the picture but are there individual pins for the trailing end of the shoes to pivot on ? Series only uses pin (shared by both shoes) and (on a Series I) only one adjuster.
    What diameter is the brake drum ?

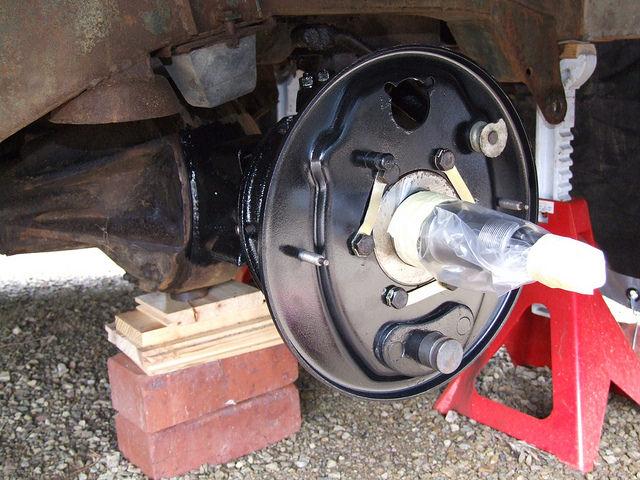

    Series I front.
    DSCF2571 by Colin Radley, on Flickr

    I can try the brake supplier I use, a long shot but worth a try.
    '56 Series 1 with homemade welder
    '65 Series IIa Dormobile
    '70 SIIa GS
    '76 SIII 88" (Isuzu C240)
    '81 SIII FFR
    '95 Defender Tanami
    '60 SII 109 ute (gone)
    Motorcycles :-
    Vincent Rapide, Panther M100, Norton BIG4, Electra & Navigator, Matchless G80C

  10. #10
    Mick_Marsh's Avatar
    Mick_Marsh is offline Super Moderator Silver Subscriber
    Join Date
    Nov 2009
    Location
    Western Victoria
    Posts
    14,162
    Series are 10". C&C are 12".

    Yep. Tried that avenue.
    Unless otherwise stated, this post is the opinion of Mick_Marsh and should be read accordingly.

    Hybrid SIII Stage 1 cab on a RRC chassis
