Thread: Bearing shrinkage

  1. 23rd November 2013, 07:26 AM #1
    Jeff's Avatar
    Jeff
    Jeff is offline Wizard
    Join Date
    Sep 2006
    Location
    Northern Beaches
    Posts
    1,426
    Total Downloaded
    0

    Bearing shrinkage

    I am turning a bearing housing for the rear wheel of my race sidecar, and want to know how much do bearings shrink if you chill them? The old housing was a loose fit and it shouldn't have been.

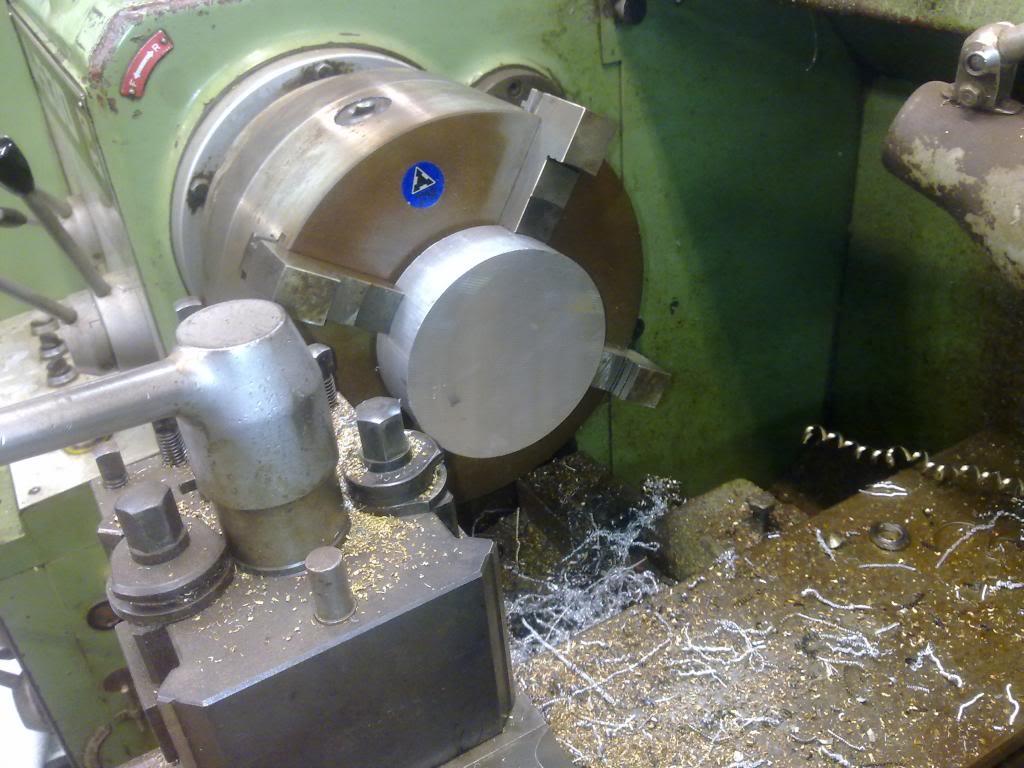

    Start with a billet of 7075-T6

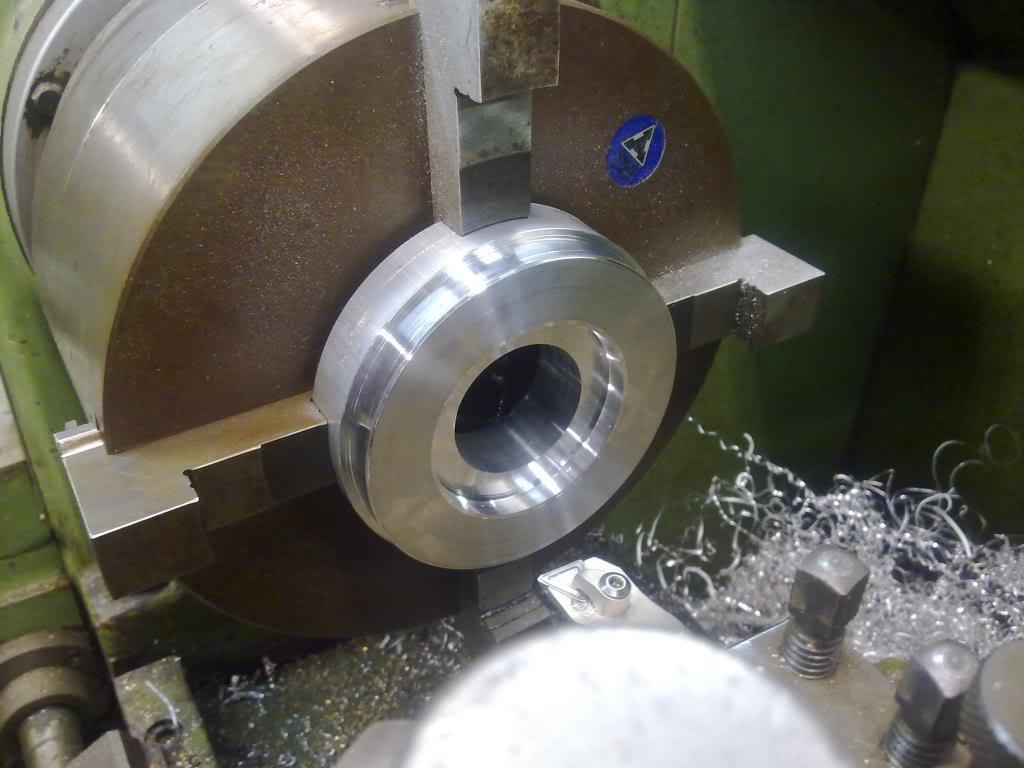

    Make lots of swarf.

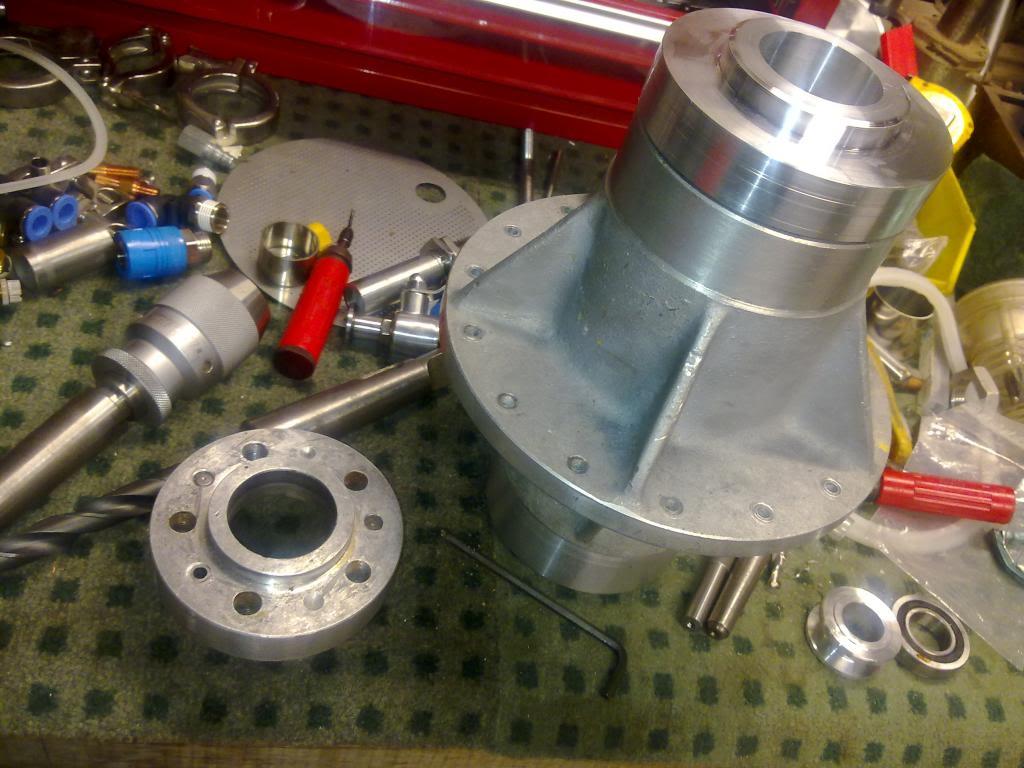

    The bearing is on the right. 1 inch inner 2 inch outer.
    Jeff

    Reply With Quote Reply With Quote
  2. 23rd November 2013, 07:49 AM #2
    Bearman's Avatar
    Bearman
    Bearman is offline TopicToaster Gold Subscriber
    Join Date
    Jun 2006
    Location
    Hay Point
    Posts
    4,043
    Total Downloaded
    0
    I have never measured the difference after chilling as you have to get it installed asap as it returns to original spec pretty quick, but it does make a tight bearing slip in pretty easy.
    Cheers......Brian
    1985 110 V8 County
    1998 110 Perentie GS Cargo 6X6 ARN 202516 (Brutus)
    Reply With Quote Reply With Quote
  3. 23rd November 2013, 07:55 AM #3
    uninformed
    uninformed is offline ForumSage
    Join Date
    Jan 1970
    Location
    Gold Coast
    Posts
    5,101
    Total Downloaded
    0
    I would have thought the amount that a steel bearing would shrink if put in the freezer alot less than the expansion of a aluminium housing if heated.

    I put some standard LR wheel bearing cups in the freezer to shrink for installing in the hub. IMO it did not make bugger all diference, if anything the condensation was a PITA.
    Reply With Quote Reply With Quote
  4. 23rd November 2013, 08:10 AM #4
    Pedro_The_Swift's Avatar
    Pedro_The_Swift
    Pedro_The_Swift is offline The MOD Father
    Join Date
    May 2003
    Location
    On The Road
    Posts
    30,042
    Total Downloaded
    0
    might help?
    Liquid Nitrogen Services
    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  5. 23rd November 2013, 08:23 AM #5
    komaterpillar
    komaterpillar is offline Master
    Join Date
    Sep 2013
    Location
    toowoomba
    Posts
    294
    Total Downloaded
    0
    I had to install a boss on a 5" shaft, 6thou interference fit, chilled the shaft with liquid nitrogen and got the boss to 160℃ on a hotplate and they slid together fairly easily with minimal persuasion,

    Getting the old boss off was another story, 80tonne ram on porta power and a LOT of heat.....
    Reply With Quote Reply With Quote
  6. 23rd November 2013, 08:27 AM #6
    Pedro_The_Swift's Avatar
    Pedro_The_Swift
    Pedro_The_Swift is offline The MOD Father
    Join Date
    May 2003
    Location
    On The Road
    Posts
    30,042
    Total Downloaded
    0
    yep,,
    with interference fits you MUST be sure the first time,,,
    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  7. 23rd November 2013, 08:47 AM #7
    bee utey's Avatar
    bee utey
    bee utey is offline AT REST
    Join Date
    Apr 2009
    Location
    Crafers West South Australia
    Posts
    11,732
    Total Downloaded
    0
    Most shaft bearings I have met have a slight clearance in the housing. This allows the outer race to creep and equalise wear around the whole ring. If you're going for a press fit make sure your bearing is toleranced for same.
    Reply With Quote Reply With Quote
