Thread: Blend Motors

  1. 18th March 2011, 01:51 PM #1
    WasabiPimpNinja Guest

    Blend Motors

    Ok guys, I know this has been covered a bit but I have a few questions. My Drivers side blend motor has bitten the dust. Just the thing during one of the hottest summers in Perth that I can remember. So down to the questions.

    Now I haven't pulled it out yet, but after some reading it appears its the gears that strip and fail, not the motor. Is this correct?

    I read a thread about using the Peugeot blend motors, but they seem to be even more expensive than the Rover ones, coming in at about $250AU per servo. Looking on eBay, the rover ones sell for about 150GBP posted for a set of three on a loom, or about half that for 1. Is it worth replacing all the blend motors when you start getting into it, or just replace the broken one?

    Also, are there any other jobs I should get out of the way while I'm in there? I heard someone say to do the heater core o-rings while you've got it apart?

    And finally, does anyone have an old broken blend motor they'd be willing to part with so I can have a look and play before I go pulling my car apart? I have a few silly ideas that I think could work, but would like to look at the unit first.

    Cheers,
    Keels.
    Reply With Quote Reply With Quote
  2. 19th March 2011, 10:22 AM #2
    RR P38's Avatar
    RR P38
    RR P38 is offline Master
    Join Date
    Jul 2010
    Location
    Sydney/Balmain
    Posts
    735
    Total Downloaded
    0
    I have fiddled with my B/motors a bit over the years.
    I have never had a stripped gear in the servo.
    There are some trim pots in the unit that i believe can be replaced/parts available at most electronics shops.
    I have 2 spare B/motors, if you remove the one that is US cut the cables and splice a new one in, if you have nimble fingers you dont need to pull all the dash out.
    Reply With Quote Reply With Quote
  3. 21st March 2011, 09:30 AM #3
    glenhendry's Avatar
    glenhendry
    glenhendry is offline Master Supporter
    Join Date
    Oct 2010
    Location
    Carindale, Brisbane, Qld
    Posts
    652
    Total Downloaded
    0

    Dont assume blend gears or motor...

    Both my temp blend unit have failed and the gears looked perfect. The motor also worked fine, which leads us to believe that it was in fact the potentiometer that was at fault (as it is about the only other thing inside the box).
    Now: 2005 L322 Vogue 4.4 M62TU (Black)
    Before: 2000 P38A HSE 4.6 - stately capability | 2008 Kluger KX-S | 2004 Forester | 2000 Yamaha XJR1300 | 1993 VR Calais | 1974 HQ Statesman - 308 V8 | HT | HK
    Reply With Quote Reply With Quote
  4. 21st March 2011, 09:36 AM #4
    p38arover's Avatar
    p38arover
    p38arover is offline Major part of the heart and soul of AULRO.com
    Administrator
    I'm here to help you!     Gold Subscriber
    Join Date
    Jan 1970
    Location
    Western Sydney
    Posts
    30,707
    Total Downloaded
    1.63 MB

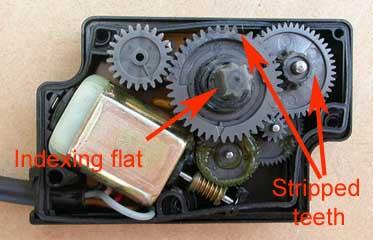

    I pulled one of mine apart and the motor brushes had completely worn away. This pic of one with broken teeth was from my daughter's Peugeot 405.

    Ron B.
    VK2OTC

    2003 L322 Range Rover Vogue 4.4 V8 Auto
    2007 Yamaha XJR1300
    Previous: 1983, 1986 RRC; 1995, 1996 P38A; 1995 Disco1; 1984 V8 County 110; Series IIA



    RIP Bucko - Riding on Forever
    Reply With Quote Reply With Quote
  5. 21st March 2011, 09:43 AM #5
    RR P38's Avatar
    RR P38
    RR P38 is offline Master
    Join Date
    Jul 2010
    Location
    Sydney/Balmain
    Posts
    735
    Total Downloaded
    0
    Good work Ron gives people an idea of whats in the blighters.

    As luck would have it my recirculation flap servo has packed it in on the drivers side fan.

    So i have a job to do on the old girl again.
    Reply With Quote Reply With Quote
  6. 23rd March 2011, 11:39 AM #6
    WasabiPimpNinja Guest
    Cheers for the responses guys. Have ordered a set of three from the UK with my window reg. So a few hours to be logged in soon on the rover. Probably get it working just in time for the end of Summer

    Cheers,
    Keels
    Reply With Quote Reply With Quote
  7. 31st March 2011, 04:34 PM #7
    klappers Guest
    Blend Motor Diagnosis and Replacement

    This may help
    Reply With Quote Reply With Quote
