Changing reluctor ring - easy/hard?

**LavisLane** · 10th October 2012, 09:25 AM

Hey all,

I've been trying to isolate an intermittent issue and have found that my crank position sensor tip is being hit by the reluctor teeth. Pulling off the inspection cover shows that one of the teeth are missing - probably from hitting the CPS. I've played around with a few flat washers on a brand new CPS but it's either still hitting or the engine is running very rough (I'm assuming because the CPS is too far out of the reluctor teeth).

With a tooth missing, i'm assuming that this will cause a poor performance and i'm keen to know how hard it is to change the ring. Can anyone advise?

Thanks

Dave

**p38arover** · 10th October 2012, 10:48 AM

I assume yours is GEMS. The reluctor ring is part of the flywheel. Not cheap for a new one. LR had to order mine in from the UK and it took about 6 weeks,

I may know of a brand new one locally at KLR Auto and am checking now. They found it on their shelves after mine had arrived.

Changing it is a gearbox or engine out job.

I can't access my pics as my desktop has died so I can't show you.... but some pics of my sensor signal here:

Who broke my flexplate!

Ahh, here we are: Broken Flexplate - again?

**LavisLane** · 10th October 2012, 01:13 PM

Thanks Ron.

It's just one tiny little tooth missing. i wonder how much this really affect performance? I'm tempted to try and weld/braise it back on.

Next step might be to see if the sensor is picking up the lost tooth - I'm assuming thought that sensor and the hall effect requires a tooth on either side of the sensor tip. Anyone know how I would test this?

**p38arover** · 10th October 2012, 01:48 PM

That's what I did as one of mine was almost ripped off.

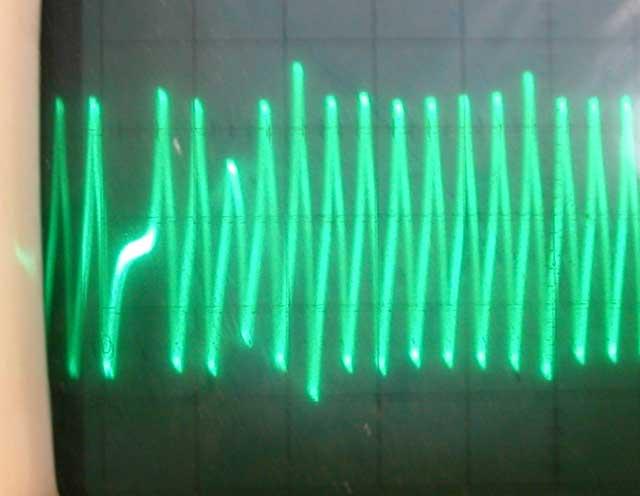

That oscilloscope image is one I got when I plugged my CRO across the sensor.

**p38arover** · 17th October 2012, 07:41 AM

There's one on eBay at the moment - Linns Rover in WA

**PhilipA** · 17th October 2012, 07:47 AM

Thye have a tooth missing so the ECU knows where No 1TDC is.
It is normal.

Here an example of an 480° rotation and its resulting signal:

Regards Philip A
Oops looks like my copy and paste did not work .PM me your email address and I will send you the description of the Thor system.

**p38arover** · 17th October 2012, 02:43 PM

Originally Posted by PhilipA

Thye have a tooth missing so the ECU knows where No 1TDC is.
It is normal.

Yes, you can see that in my image above. The pulses of different heights are from damaged teeth.

Here an example of an 480° rotation and its resulting signal:

[IMG]file:///C:/Users/Philip/Documents/Range%20Rover%20stuff/Thor%20engine%20description_files/Crank%2520signals.jpg[/IMG]

Regards Philip A
Oops looks like my copy and paste did not work .PM me your email address and I will send you the description of the Thor system.

You can't directly copy an image into a post. You must either link to it on an external site or use the Manage Attachments feature.

**PhilipA** · 17th October 2012, 03:23 PM

Sorry, I hadn't looked at the image .
Thor has a different system with drilled holes , probably because of your problem.
Looks pretty Heath Robinson.
Regards Philip A
