Thread: How to identify a 4.6 Lt engine as High Compression?

  1. 22nd February 2015, 08:02 PM #1
    Thehappyidiot
    Thehappyidiot is offline Member
    Join Date
    Feb 2015
    Location
    Melbourne
    Posts
    8
    Total Downloaded
    0

    How to identify a 4.6 Lt engine as High Compression?

    Hi all,
    I'm looking at a few P38 RR this week- one is a 2000 model, another is a 2001, and a third is 2002.
    I have seen mentioned on the forum that there are High and Low compression versions of the 4.6Lt engine.
    Is there a quick/easy way to identify the HC engines from either engine numbers or other readily identifiable facts?
    Also, I read on the forum that the later models/engines did not have a transmission dipstick - is there any way to check the state of the transmission fluid on these?
    I will be having one or maybe two of these checked out by a LR specialist pre-purchase, but t would be good to know a bit more about what to look for before I go out 'shopping'..
    Thanks in advance for your help.
    Best regards
    PeteB
    Reply With Quote Reply With Quote
  2. 22nd February 2015, 08:32 PM #2
    PhilipA
    PhilipA is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Avoca Beach
    Posts
    14,152
    Total Downloaded
    0
    It's next to the engine number between 2 and 3.
    Low compression starts with an 8 , High compression starts with a 9.
    Eg 9.35:1. ( to all trainspotters , .35 may not be EXACTLY correct )

    Regards Philip A
    Reply With Quote Reply With Quote
  3. 22nd February 2015, 08:33 PM #3
    Hoges
    Hoges is offline YarnMaster Subscriber
    Join Date
    Aug 2007
    Location
    Brisbane
    Posts
    3,234
    Total Downloaded
    0
    Welcome to the forum! The CR on virtually all P38s is the lower version 8.37:1 . there was a higher compression 9.37:1 released in Nth America.. some of the last 2002 engines landed here may have it fitted... (search the forum for more discussion on this)
    The CR is stamped on the block along with the engine number between cylinders 3&5. There is no transmission dipstick on the "Thor" upgrade models released here from around mid-1999... i.e. all V.I.N. from XA410482 onwards.
    Hope this helps
    MY99 RR P38 HSE 4.6 (Thor) gone (to Tasmania)
    2020 Subaru Impreza S ('SWMBO's Express' )
    2023 Ineos Grenadier Trialmaster (diesel)
    Reply With Quote Reply With Quote
  4. 22nd February 2015, 08:52 PM #4
    PhilipA
    PhilipA is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Avoca Beach
    Posts
    14,152
    Total Downloaded
    0
    That's what I meant 3&5 . Who spotted the deliberate mistake?
    Anyway the two middle cylinders on the LH bank.
    Regards Philip A
    Reply With Quote Reply With Quote
  5. 23rd February 2015, 08:22 AM #5
    p38arover's Avatar
    p38arover
    p38arover is offline Major part of the heart and soul of AULRO.com
    Administrator
    I'm here to help you!     Gold Subscriber
    Join Date
    Jan 1970
    Location
    Western Sydney
    Posts
    30,706
    Total Downloaded
    1.63 MB

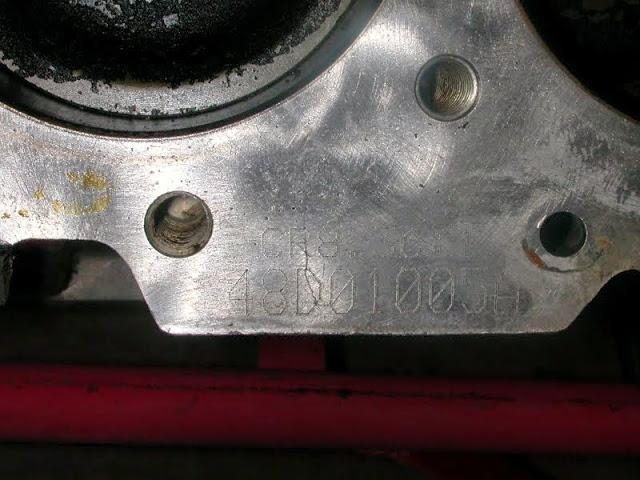

    A pic of my P38A GEMS block. Note the CR and that it's a 48D block (Actually this is a very early block that has the extra but unused row of headbolt holes that were a hangover from the RR classic engines.)

    Ron B.
    VK2OTC

    2003 L322 Range Rover Vogue 4.4 V8 Auto
    2007 Yamaha XJR1300
    Previous: 1983, 1986 RRC; 1995, 1996 P38A; 1995 Disco1; 1984 V8 County 110; Series IIA



    RIP Bucko - Riding on Forever
    Reply With Quote Reply With Quote
  6. 23rd February 2015, 08:45 AM #6
    Scouse's Avatar
    Scouse
    Scouse is offline OldBushie Gold Subscriber
    Join Date
    Jan 1970
    Location
    Douglas Park, NSW
    Posts
    9,347
    Total Downloaded
    0
    Most (if not all) 2001 will be high compression. 2002 will be.
    Scott
    Reply With Quote Reply With Quote
  7. 23rd February 2015, 09:18 AM #7
    JBM770's Avatar
    JBM770
    JBM770 is offline Master
    Join Date
    Jun 2010
    Location
    Eleebana 2282
    Posts
    312
    Total Downloaded
    0
    The engine number prefix is also different. Low comp is 55D and high comp in later D2s is 56D.

    The ECU computers are also different.

    James
    Reply With Quote Reply With Quote
  8. 23rd February 2015, 04:23 PM #8
    Thehappyidiot
    Thehappyidiot is offline Member
    Join Date
    Feb 2015
    Location
    Melbourne
    Posts
    8
    Total Downloaded
    0

    Thanks guys

    Thanks guys,
    All very helpful in getting to grips with the steep learning curve which is becoming very apparent!
    PeteB
    Reply With Quote Reply With Quote
