Defender Under-bonnet Sound Insulation

**Jock The Rock** · 28th March 2010, 06:54 PM

Heres a fix for all of you Defender drivers with a stuffed under bonnet lining

I had previously done this on my old Defender, but never had a chance to take some happy snaps

So here goes:

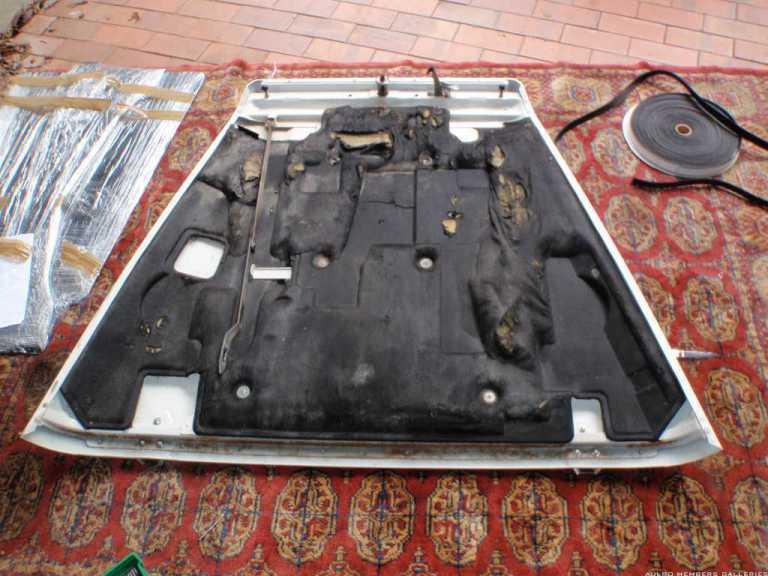

Old stuff:

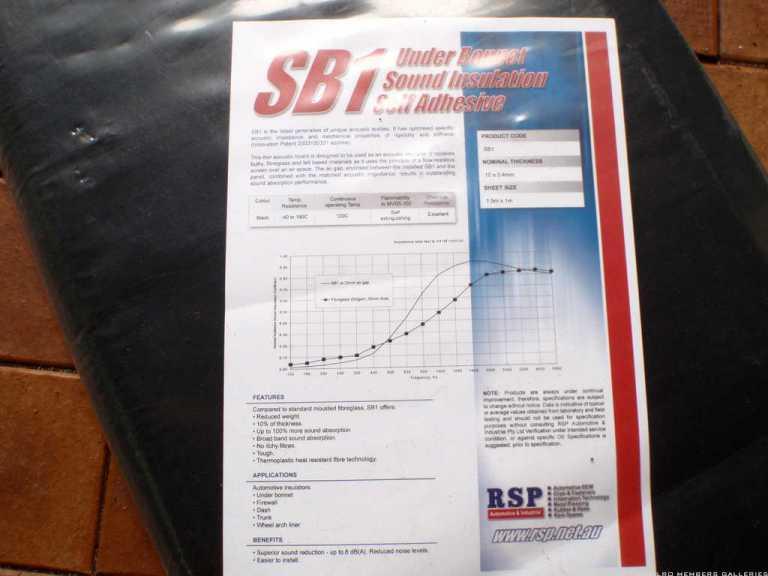

Strip that off, rust kill all the rust spots and paint. Then get hold of some of this stuff:

Costs about $60 for a sheet

Cut it out to shape, make sure you mark it out on the right side. (You have to flip it over to stick it on)

Grab hold of a mate and ask for a hand because it's bloody sticky and doesn't like coming back off, and stick it down

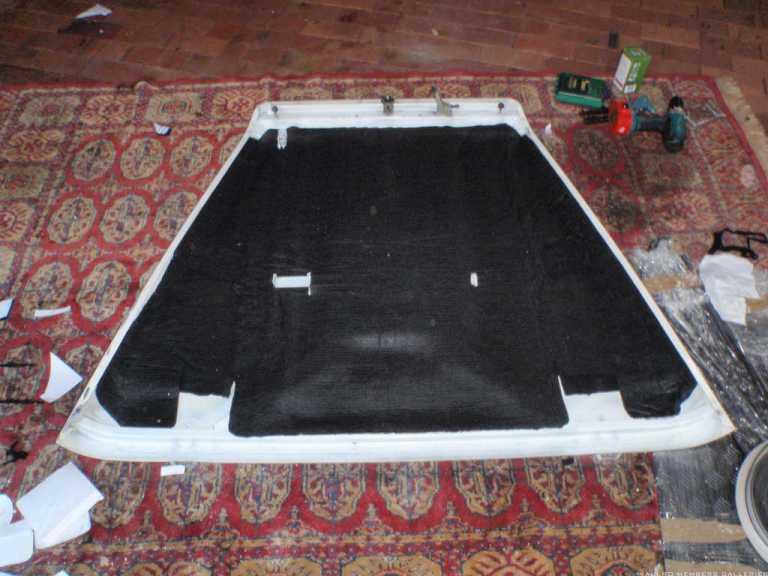

The finished product:

**isuzutoo-eh** · 28th March 2010, 09:00 PM

Great job Jock,
Was one sheet enough? I need to add this to my 'near future' jobs list

**Ranga** · 28th March 2010, 09:20 PM

Where do you get it? Did you use the old lining as a template?

**Sprint** · 28th March 2010, 11:13 PM

Originally Posted by Ranga

Where do you get it? Did you use the old lining as a template?

im guessing anyone who sells rare spares stuff would be able to get it in....

**abaddonxi** · 29th March 2010, 12:34 AM

Looks good.

Think I work on the same rug.

**Jock The Rock** · 29th March 2010, 06:05 AM

Originally Posted by Ranga

Where do you get it? Did you use the old lining as a template?

Check this website out mate, it was on the packaging. The may have a contact for a supplier in QLD

RSP Automotive & Industrial - Car Parts,Rubber,Metal Pressing,OEM,IT,Hose,Clips,Fastners

http://www.rsp.net.au/rsp/industrial/index.htm

Yeah I did just to get the right shape

Originally Posted by longing4alandy

Great job Jock,
Was one sheet enough? I need to add this to my 'near future' jobs list

Yeah one sheet will do it, I think they are a 1 x 1.5m sheet

**Ranga** · 3rd March 2011, 03:31 PM

Just did mine also. Was a lot easier to stick on than I thought, considering I did it by myself.

Seemed to quieten it down a bit, but maybe not as much as I had hoped.

**86mud** · 3rd March 2011, 03:37 PM

I also got hold of a few metres of door seal rubber from Clark Rubber and ran it around the bonnet edge so when the bonnet is closed there is no gap between the bonnet and the top of the guards....also helps to support the bonnet with the added weight of the wolf rim.

Cheers

Andrew

**Ranga** · 4th March 2011, 10:21 AM

Originally Posted by 86mud

I also got hold of a few metres of door seal rubber from Clark Rubber and ran it around the bonnet edge so when the bonnet is closed there is no gap between the bonnet and the top of the guards....also helps to support the bonnet with the added weight of the wolf rim.

Cheers

Andrew

I thought about this, as there's a good inch or so gap at the front. Would this reduce the ventilation and have a detrimental effect?

**VladTepes** · 4th March 2011, 10:37 AM

Jock how duid you get the old stuff of where it was stuck to teh bonet.

Ranga ya bugger ya could have mentioned it as I want to do mine as well.

The noise issue probably will be not much different but the old stuff is hanging down and crumbling on mine.

Can you tell me where you got the stuff from? and $.
