    250/c4 in series

    Had a request from sideroad to post up some pics of my mods to fit ford 250/c4 in a series and thought I'd better share. Really does transform the vehicle and gives it serious grunt and being auto, the missus half likes driving it.
    The gear box support/crossmember has been moved backwards about 4 inches.



    pics of the levers;

    this is the front showing radiator support panel moved forward to the edge of the "deluxe" bonnet. The deluxe bonnet is a bit longer than the original.


    this pic shows the bonnet stay in original position with the radiator support forward. Usually they bolt together;

    pics of the radiator position. I used angle iron welded into a box to fit flush against radiator support panel.
    it also incorporates bonnet pins and thermo fan;


    pic of the rear prop shaft. I shortened a range rover shaft giving it more angle because it's only 40 cm's long (no parabolics );
    Reply With Quote Reply With Quote
  2. 30th June 2010, 10:16 PM #2
    Disco Stew's Avatar
    Disco Stew
    Disco Stew is offline Fossicker
    Join Date
    Jul 2007
    Location
    Townsville
    Posts
    26
    Total Downloaded
    0
    G'day

    I beleive there is an adaptor kit to fit the C4 but what about engine mounts etc. Does a manufacturer make them or did you make your own?

    regards
    Reply With Quote Reply With Quote
  3. 2nd July 2010, 09:17 PM #3
    wozapinin's Avatar
    wozapinin
    wozapinin is offline Master Subscriber
    Join Date
    Feb 2008
    Location
    Mareeba
    Posts
    364
    Total Downloaded
    0
    The original ford mounts bolt onto a box section welded to the chassis. I'll get a photo up
    Reply With Quote Reply With Quote
  4. 3rd July 2010, 10:45 AM #4
    wozapinin's Avatar
    wozapinin
    wozapinin is offline Master Subscriber
    Join Date
    Feb 2008
    Location
    Mareeba
    Posts
    364
    Total Downloaded
    0

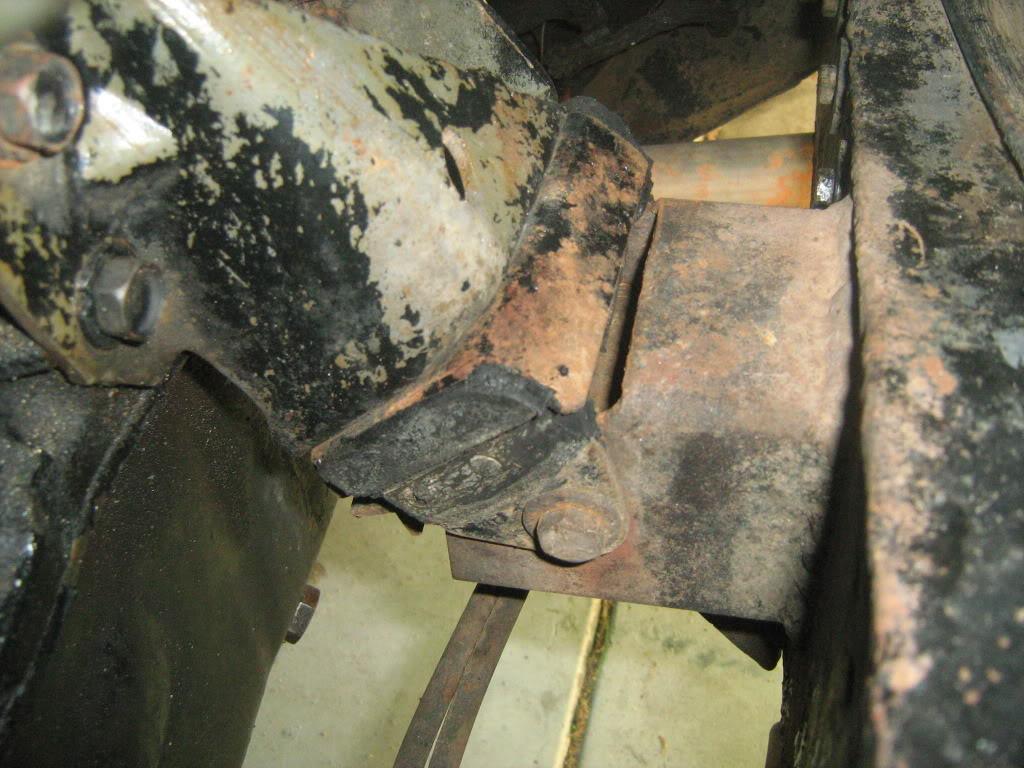

    here's the engine mounts, square tube is 750mm x750mm;

    lhf;


    rhf;
    Reply With Quote Reply With Quote
  5. 4th July 2010, 10:35 PM #5
    fordpwrds2 Guest
    i have a s2 with same combo where did you get that bonnet from ??
    Reply With Quote Reply With Quote
  6. 6th July 2010, 08:48 PM #6
    HBWC's Avatar
    HBWC
    HBWC is offline Wizard
    Join Date
    Apr 2009
    Location
    serpintine wa
    Posts
    1,522
    Total Downloaded
    0
    what did you do for the shifter ??
    Reply With Quote Reply With Quote
  7. 7th July 2010, 09:14 AM #7
    wozapinin's Avatar
    wozapinin
    wozapinin is offline Master Subscriber
    Join Date
    Feb 2008
    Location
    Mareeba
    Posts
    364
    Total Downloaded
    0
    Quote Originally Posted by fordpwrds2 View Post
    i have a s2 with same combo where did you get that bonnet from ??
    Give Brett at Byford at call on 0407464584. He should be able to help.
    Reply With Quote Reply With Quote
  8. 7th July 2010, 09:19 AM #8
    wozapinin's Avatar
    wozapinin
    wozapinin is offline Master Subscriber
    Join Date
    Feb 2008
    Location
    Mareeba
    Posts
    364
    Total Downloaded
    0
    Quote Originally Posted by HBWC View Post
    what did you do for the shifter ??
    At first it was a modified cortina t bar, now it's a swanky b&m shifter. Have toyed with the idea of setting up a cable column shift to free up floor space.
    Reply With Quote Reply With Quote
  9. 7th July 2010, 07:47 PM #9
    HBWC's Avatar
    HBWC
    HBWC is offline Wizard
    Join Date
    Apr 2009
    Location
    serpintine wa
    Posts
    1,522
    Total Downloaded
    0
    Quote Originally Posted by wozapinin View Post
    At first it was a modified cortina t bar, now it's a swanky b&m shifter. Have toyed with the idea of setting up a cable column shift to free up floor space.
    thats what i was thinking using a early falcon steering column
    or using the original maual stick in a custom job for that original look
    and yes cause of you i want a series again
    Reply With Quote Reply With Quote
  10. 7th July 2010, 10:15 PM #10
    Disco Stew's Avatar
    Disco Stew
    Disco Stew is offline Fossicker
    Join Date
    Jul 2007
    Location
    Townsville
    Posts
    26
    Total Downloaded
    0
    Thanks for the advice and pics. I will stick my head under the Landy and my donnor car and have a good squiz.

    Any other issues you can think of that may crop up?

    Thanks again

    Mark
