Thread: 351W EFI into Classic Rangie

  1. 20th February 2012, 06:26 PM #61
    FIXR7
    FIXR7 is offline Master
    Join Date
    May 2010
    Location
    Kalamunda WA
    Posts
    327
    Total Downloaded
    0
    Cheers banarcus,

    I'm just going to finish the collectors which, although part of the kit leave a lot to be desired so I'll cut and shut them enough to make them work and weld the two bolt 2 1/2" flanges on.

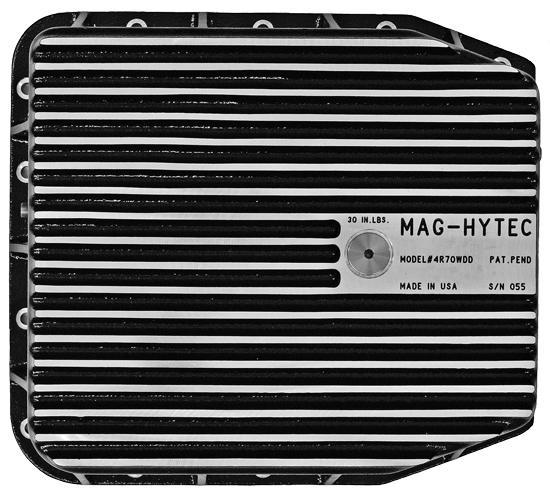

    Next, I'll probably make a rectangular section crossmember so I'll have plenty of pan clearance which I might need if I get one of these which are 4 3/4" deep!?....



    after that I'll pull the whole lot out again and pull the trans apart for a going over and an attempt at drilling and tapping the output shaft(which is hardened) for the adapter shaft to bolt on.
    While that's out I'll finish weld the mounts and drill and paint them.
    Btw does anyone know if there's any difference in the coolers inside the radiator tanks? One is for the trans oil and the other for the engine oil. I ask because I want to swap sides.
    Reply With Quote Reply With Quote
  2. 11th March 2012, 05:23 PM #62
    roarin8's Avatar
    roarin8
    roarin8 is offline Fossicker
    Join Date
    Feb 2011
    Location
    Southern Flinders Ranges SA
    Posts
    23
    Total Downloaded
    0
    Hi bloke, love your work! i think the coolers should be the same internally and if not, as long as you flush them out, swapping shouldn't be an issue!
    Was also wondering if your mate that made your trans adaptor would be interested in making another one? I'm about to put an injected windsor in my rangie and have looked at doing an engine plate and have got a tq727 and tx sitting there out of an early rangie, but wouldn't mind retaining the ford 4 spd auto for obvious reasons. I'm guessing your mate could knock another trans adaptor out fairly easily? If he's interested could you let me know how much coin he would want for such a masterpiece?
    Cheers, Paul.
    Reply With Quote Reply With Quote
  3. 11th March 2012, 11:56 PM #63
    FIXR7
    FIXR7 is offline Master
    Join Date
    May 2010
    Location
    Kalamunda WA
    Posts
    327
    Total Downloaded
    0
    Hi Paul,

    Thanks man, glad you like it. I'll ask Tony how much to do the adapter. Would you want the shaft aswell?
    I know the lump of ally was something like $200-300 on it's own.
    If we get enough interest(and there's been a bit) we'll do a casting.

    Cheers,
    Pete.
    Reply With Quote Reply With Quote
  4. 12th March 2012, 12:22 AM #64
    FIXR7
    FIXR7 is offline Master
    Join Date
    May 2010
    Location
    Kalamunda WA
    Posts
    327
    Total Downloaded
    0
    Haven't got much done lately because it's been too damn hot! Here's where the headers get to. I've got a piece of 100x50x4 tube and 6mm end plates to make the crossmember which will be below the headers as i said previously.
    Otherwise, I've almost completed the EFI harness and I've got an idea how to mod that BF 6spd shifter to work with a rear cable entry rather than the front side.



    LH side shot...



    RH side shot...

    Reply With Quote Reply With Quote
  5. 12th March 2012, 01:49 AM #65
    rovercare's Avatar
    rovercare
    rovercare is offline OldBushie
    Join Date
    Jan 1970
    Location
    Yinnar South, Vic
    Posts
    9,943
    Total Downloaded
    0
    Nice work
    Reply With Quote Reply With Quote
  6. 13th March 2012, 10:40 PM #66
    roarin8's Avatar
    roarin8
    roarin8 is offline Fossicker
    Join Date
    Feb 2011
    Location
    Southern Flinders Ranges SA
    Posts
    23
    Total Downloaded
    0
    Thanks pete, thats great that there's been some interest! The spud shaft would be handy too, but if its too hard i could get that made here probably... (i know a few people). Look forward to hearing if tony is interested in making the housings though. If its easier for us to swap phone numbers anytime just let me know! otherwise i await your reply! Cheers! Paul.
    Reply With Quote Reply With Quote
  7. 15th March 2012, 12:26 AM #67
    FIXR7
    FIXR7 is offline Master
    Join Date
    May 2010
    Location
    Kalamunda WA
    Posts
    327
    Total Downloaded
    0
    Crossmember progress....



    I'll put these gussets on and box it in so there's no build up of **** on top when in use...





    Reply With Quote Reply With Quote
  8. 21st March 2012, 04:58 AM #68
    sneakypete3223 Guest
    hello, i was wondering what transmission was used in this swap? and how it turned out? i have an 89 RR and am interested in doing a swap like this.
    thanks.
    Reply With Quote Reply With Quote
  9. 21st March 2012, 10:20 AM #69
    FIXR7
    FIXR7 is offline Master
    Join Date
    May 2010
    Location
    Kalamunda WA
    Posts
    327
    Total Downloaded
    0
    Quote Originally Posted by sneakypete3223 View Post
    hello, i was wondering what transmission was used in this swap? and how it turned out? i have an 89 RR and am interested in doing a swap like this.
    thanks.
    You are kidding right!?
    Reply With Quote Reply With Quote
  10. 23rd March 2012, 02:01 AM #70
    sneakypete3223 Guest
    no im not kidding, i dont know what transmission was used. there are different ones and i cant tell by the couple of pictures of it. Sorry if my qurestion offends u but the point of a forum board is to ask questions about things u dont know.
    Reply With Quote Reply With Quote
