Today i was bored..... i looked at Grommet and pondered the thought of a spare wheel carrier.......... then it hit me....... make it myself.....
so i popped down to bunnings and started my project....
ok now the truth..... i had purchased the parts i needed some months back and now was the time to get excited...
It had to be easy to use and had to support a 35" tyre.
So i cut a piece of 1/4" plate to the shape i wanted. I drilled the plate to use the Std LR holes in the rear cross member.
Then i had to space the Stub axle out about 1/2" so i used many plates and welded it all together.

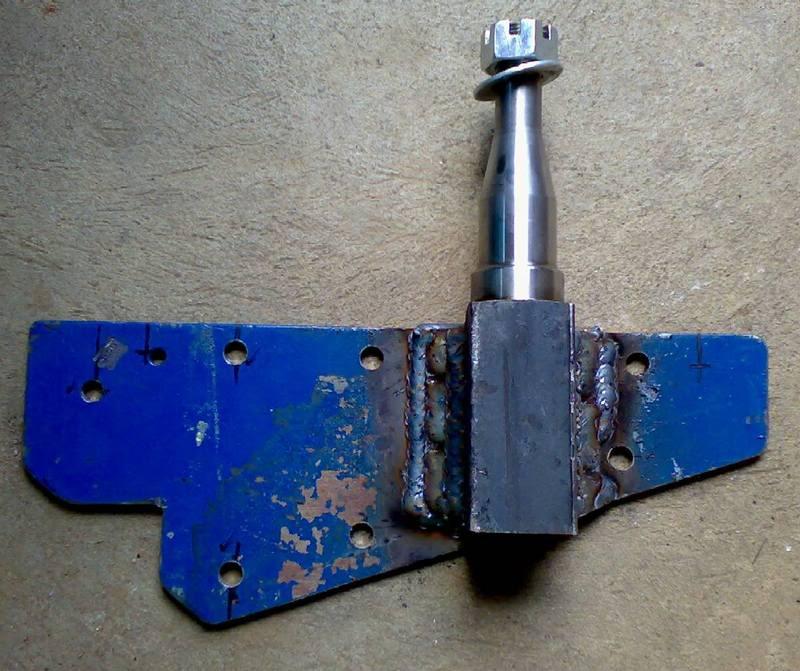

Here it is

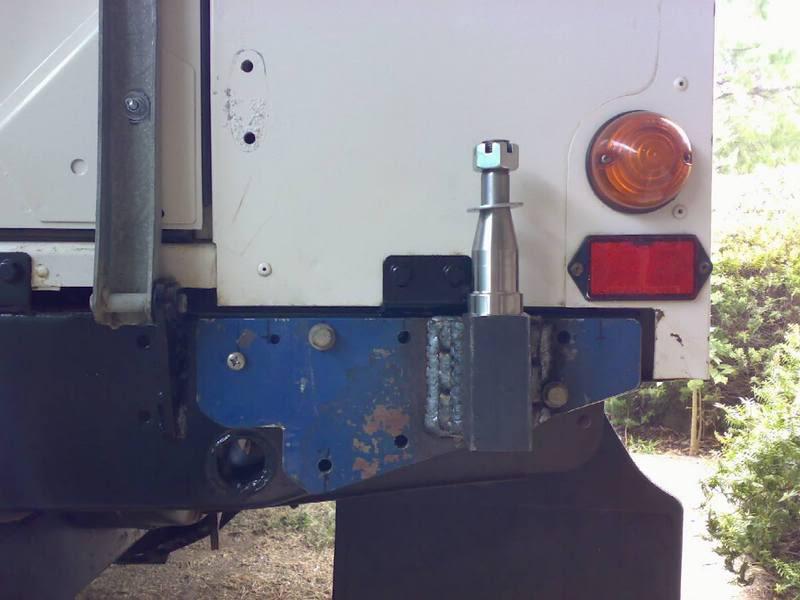

Then i bolted it on, but only just to hold it in place, i'm going to make some crush tubes for the rear cross member....

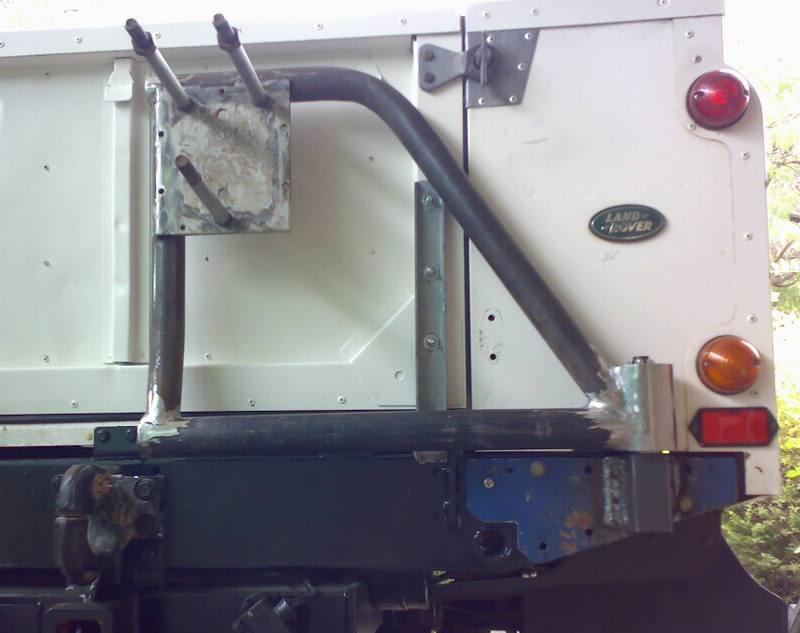

Then i made the wheel carrier frame up.
Its an over kill and the next one i build will be a lighter version.
I utilised a Std Defender rear wheel carrier bracket.

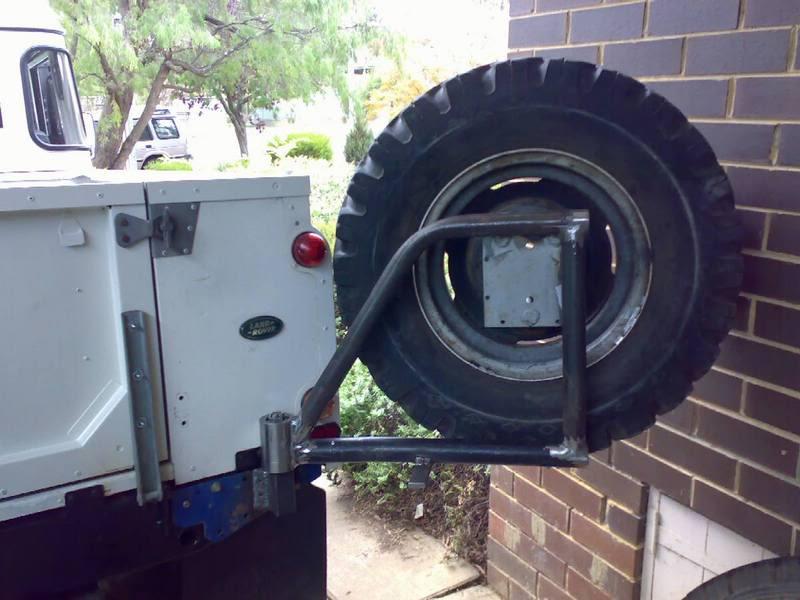

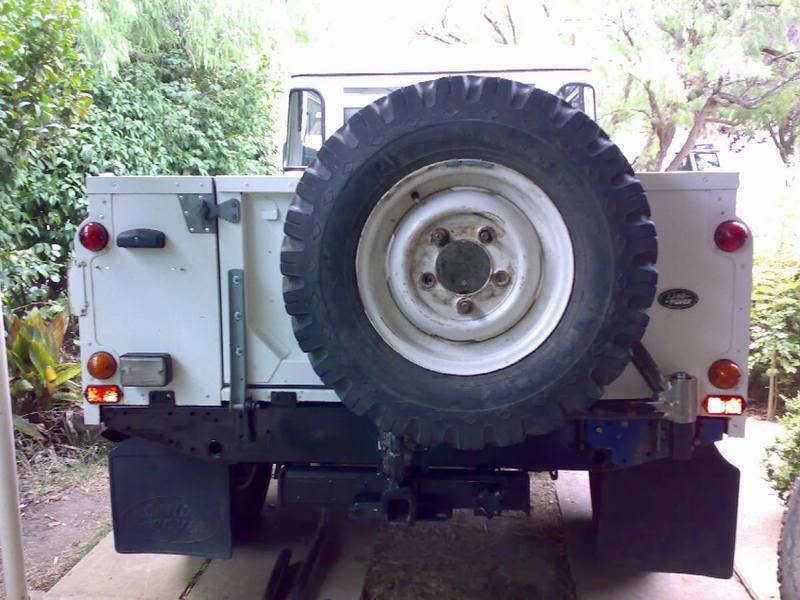

Then i trial fitted the lot. i needed to adjust the bar work slightly and all i need to do is make the catch, well fit it really as i have one i bought.
How long did it take so far??? 10 hours.....
Will it be for sale.... YES.... its my prototype and i'm building another one.
How much will you pay for this great idea....... $350
Clarkie
Volumetric Genius
I'm keen - been looking at all the aftermarket options - happy to pay you instead. Getting a '07 Fender 110 once available so knock me one up. I guess a PM to sort the details is the way to go.
Dan
PS - Looking again I see you have a Ute - can it be modified to open with the door?
Last edited by Scallops; 11th March 2007 at 07:50 PM.
2007 Defender 110
2017 Mercedes Benz C Class. Cabriolet
1993 BMW R100LT
2024 Triumph Bonneville T120 Black
SysAdmin (Owner)
what are you using as the boss on the stub axle? something you had made up ?
Last edited by incisor; 11th March 2007 at 08:00 PM.
2007 Discovery 3 SE7 TDV6 2.7
2012 SZ Territory TX 2.7 TDCi
"Make the lie big, make it simple, keep saying it, and eventually they will believe it." -- a warning from Adolf Hitler
"If you don't have a sense of humour, you probably don't have any sense at all!" -- a wise observation by someone else
'If everyone colludes in believing that war is the norm, nobody will recognize the imperative of peace." -- Anne Deveson
“What you leave behind is not what is engraved in stone monuments, but what is woven into the lives of others.” - Pericles
"We can ignore reality, but we cannot ignore the consequences of ignoring reality.” – Ayn Rand
"The happiness of your life depends upon the quality of your thoughts." Marcus Aurelius
Wizard
SupporterNice piece of work
mick
TopicToaster
The Hub is accally a HUB...... there is a mob in WA who i got them from..Originally Posted by incisor
I'll post the details for anyone who wants to make there own.
The catch (to be fitted) is from SA.
I will post all the details when i finish it.
as for the price in the future.... it wont be $350.... thats only for this one i've made.
Clarkie
Major part of the heart and soul of AULRO.com
I'm interested, too. I looked at using a trailer hub with the flange removed but they are cast so they aren't really suitable.
BTW, I hate you blokes who can weld. I've got a really good MIG welder but I can't see what I'm welding.
Ron
Ron B.
VK2OTC
2003 L322 Range Rover Vogue 4.4 V8 Auto
2007 Yamaha XJR1300
Previous: 1983, 1986 RRC; 1995, 1996 P38A; 1995 Disco1; 1984 V8 County 110; Series IIA
RIP Bucko - Riding on Forever
TopicToaster
Why cant you see it??? is the weld flash too dull to see thry the mask??? if so you can get lighter masks, Arc mask are darker i think (lense), make sure you have one for Mig.
Clarkie
SysAdmin (Owner)
actually, they go by the amperage you are using... higher amps you need darker lens..
you can get them in shades varying from 6 up to 16+ i think..
you can get clear magnifing lens as well, i use a 5x on fiddly stuff.....
2007 Discovery 3 SE7 TDV6 2.7
2012 SZ Territory TX 2.7 TDCi
"Make the lie big, make it simple, keep saying it, and eventually they will believe it." -- a warning from Adolf Hitler
"If you don't have a sense of humour, you probably don't have any sense at all!" -- a wise observation by someone else
'If everyone colludes in believing that war is the norm, nobody will recognize the imperative of peace." -- Anne Deveson
“What you leave behind is not what is engraved in stone monuments, but what is woven into the lives of others.” - Pericles
"We can ignore reality, but we cannot ignore the consequences of ignoring reality.” – Ayn Rand
"The happiness of your life depends upon the quality of your thoughts." Marcus Aurelius
ChatterBox
Subscriberneat, but you will definitely need those crush tubes, the crossmember is made of plasticine, mine is anchored at 3 points and I still had distortion of the CM after only 300kms.
The Ugly Duckling-
03 Defender Xtreme, now reduced by 30%.
a master of invisibleness.
TopicToaster
G'day All, My 1984 110 County has crush tubes inbuilt into the rear x member, I made my own swing away tyre carrier about 13 years ago and it has not caused me any grief in that time, the locking device I used was the tailgate toggle etc from a Land Rover, it works and it is lockable by passing a padlock thru the toggle cheers Dennis
