Thread: Electric Window mod. for Puma and other LRs

Looks like a great idea, we always leave the windos down

I know what you mean about having half the car ripped apart, something just feels wrong doing it to a new car.

Cheers,

i need that setup for my mums corolla...........

BM and I were only saying how we should look into something like this the other day. Good post and thanks for the info. Will have to wait a while before it gets on the list of things to do though.

as a side note...

I would like to thank Derek for supplying me the Puma wiring diagram on PDF. I'm not sure I would have figured it out without that so thanks.

Craig

Originally Posted by Craig

Well, after tuning the key off and then realising that the windows are still down for about the millionth time, I decided to do something about it.

A simple little timer circuit and a relay that hold the power on the electric windows circuit for a period of time after the keys is removed.

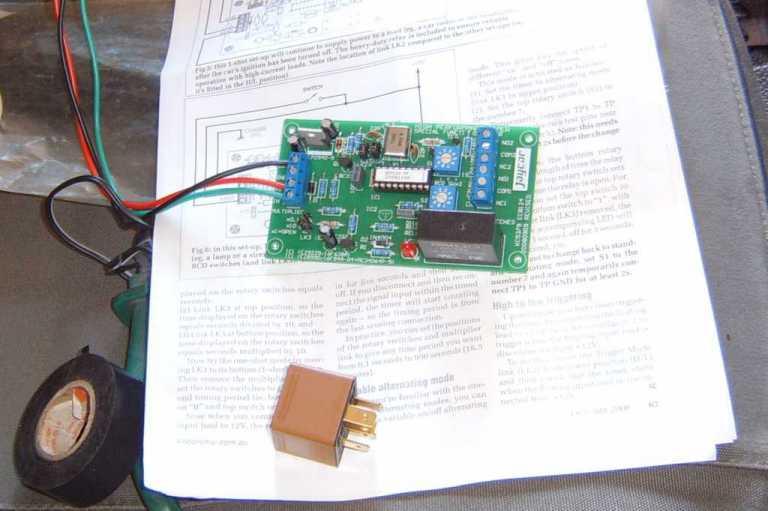

I used one of these High Performance Timer - Jaycar Electronics from Jaycar and a standard 12V relay. The timer is in kit form so you will need some some basic electronic and soldering skills to assemble it.


So then you have to rip the dash apart so you can access the rear of the fuse/relay holder. Remove the metal bracket from the firewall and then remove all the fuse holders and relays from the bracket.


now we are having fun... Its normally about this time that the wife come out and asks why our $50,000 Land Rover doesn't have a dash board.


Once you have accessed all the wires at the rear you need to connect up your timer and relay to the wires from the back of "R143 relay-window-lift" I wired my relay basically in parallel to the standard relay and took the input to the timer from pin 85.



If anyone wants the wiring diagram I can make one up, but its pretty straight forward

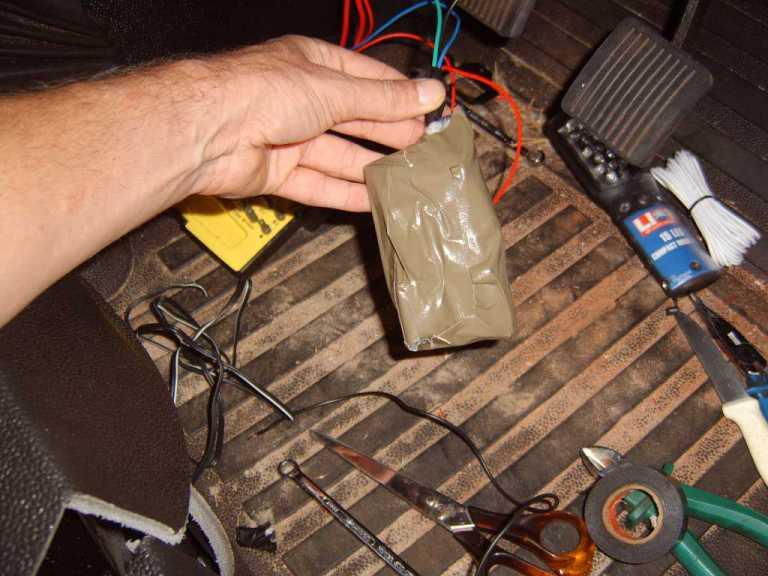

Then I just wrapped the timer in a plastic bag and some gaffa tape for protection. tidied up the wiring and put it all back together.


Time taken... the best part of a day.
Cost... less than $60 for parts.

thanks for reading. Comments welcome

Craig

Good bloody work. Why don't build one that winds the windows up when you hit the central locking button?

Originally Posted by Craig

as a side note...

I would like to thank Derek for supplying me the Puma wiring diagram on PDF. I'm not sure I would have figured it out without that so thanks.

Craig

That was nice of him

Okay, here are the wiring diagrams for this project...

First, the timer should be set into "one shot" mode and switching should be "high to low"

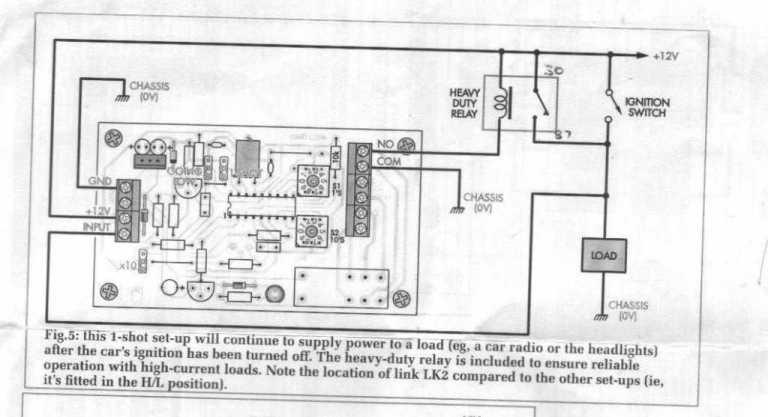

This is the suggested set-up for the project...


This is how mine is wired up...
Then, as I said, wire the extra relay in parallel to the existing one, get your trigger (input) from the ignition wire. then just run some power and earth to the timer


When the input switches from high to low (12V to 0V) the timer connects the NO (normally open) to ground until the set time has elapsed. then opens it again.

I have mine set for 60 seconds. I think that is enough time to get out of the car and realise you have left the windows open, and still wind them up.

If there are any Auto Electricians out there who can spot a problem with my wiring, don't hesitate to let me know.

Have fun

Craig

Question. Has anyone looking into converting the rear manual windows to electric ones. Just wondering?
