Thread: some 80" questions...

Does anyone have a photograph of a butler headlight suitable for an early 80" (behind the grille)

If possible can I get photos in situ (close up front and under bonnet)

and

one "free" of the radiator support panel?
.
After much head scratching I've been put out of my misery and advised that the horizontal loop on the base of the windscreen if for the "trafficator" switch (so it pivots with the trafficators and screen) Does anyone have photos of the appropriate switch?


sorry to be a pain but trying to get everything sorted "in my head"!

"DROPSHORT" has very generously given me some reference books so I will be bothering you guys less but none the less I will still be bothering you!
but I have both a workshop(48-58) and parts manual (48-53) and an 86-107 instruction manual! Already last night I answered a heap of my own questions! (DROPSHORT also has advised me re: correct paint combinations etc as from factory vehicle and wheels etc etc therefore cutting even more questions out!)


digger

Butler headlamps - The lens at the bottom. They were also used on Ferguson Te20 tractors - but you need to get them with hi and low beam. Some only had a single filament.



Some who are more pragmatic (unable to count rivets), get reproduction tractor lamps and fit Q.H. bulbs.

http://www.bareco.com.au/files/massey2001/mf67c.htm
--------------------------------
Cant find one of the switch

Its on this one:

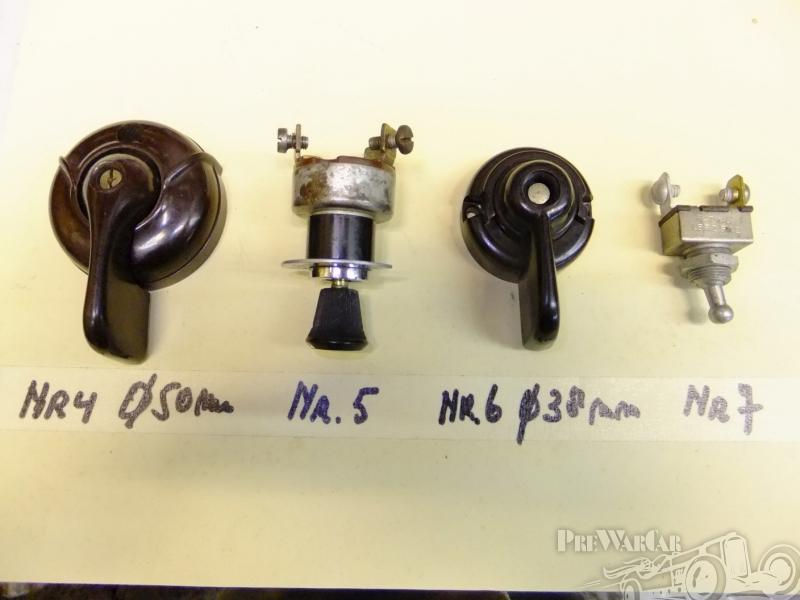

Similar to NR6 038 (2nd from R)
