Thread: Locking hubs

  1. 28th February 2012, 11:46 AM #51
    Dana27 Guest

    SUE Enquiry

    G'day. Just wondering what sort of front diff a Landie has as I've got the same Shute Upton Locking hubs on my '64 Scout. Just stumbled on here as it was in the search list. I have exactly the same hub but only one and if a Land Rover runs the same DANA 27 Diff then I may have just found my applicable donor to fit one to the drivers side, maybe they had a blow out before I bought it
    Reply With Quote Reply With Quote
  2. 28th February 2012, 11:57 AM #52
    Lotz-A-Landies's Avatar
    Lotz-A-Landies
    Lotz-A-Landies is offline Super Moderator Gold Subscriber
    Join Date
    Jul 2006
    Location
    East-South-East Girt-By-Sea
    Posts
    17,662
    Total Downloaded
    1.20 MB
    Quote Originally Posted by Dana27 View Post
    G'day. Just wondering what sort of front diff a Landie has as I've got the same Shute Upton Locking hubs on my '64 Scout. Just stumbled on here as it was in the search list. I have exactly the same hub but only one and if a Land Rover runs the same DANA 27 Diff then I may have just found my applicable donor to fit one to the drivers side, maybe they had a blow out before I bought it
    A series 2a Landy has a Rover diff at the front end.

    Freewheeling hubs are not popular with many members here and the SUE brand are considered the least popular of all, mainly for the problems you describe, personally I'd recommend you send the SUE hubs to the recyclers and fit plain flanges.

    As for whether they would fit, the Land Rover halfshaft has 10 spline halfshaft and 6 retaining bolts. However if the PCD of the retaining bolts are the same you may be able to use the Land Rover housing and your own internals. Throw up a wanted ad in the markets section and see if you have any luck.

    You won't find me on: faceplant; Scipe; Infragam; LumpedIn; ShapCnat or Twitting. I'm just not that interesting.
    Reply With Quote Reply With Quote
  3. 28th February 2012, 01:35 PM #53
    Dana27 Guest
    Quote Originally Posted by Lotz-A-Landies View Post
    A series 2a Landy has a Rover diff at the front end.

    Freewheeling hubs are not popular with many members here and the SUE brand are considered the least popular of all, mainly for the problems you describe, personally I'd recommend you send the SUE hubs to the recyclers and fit plain flanges.

    As for whether they would fit, the Land Rover halfshaft has 10 spline halfshaft and 6 retaining bolts. However if the PCD of the retaining bolts are the same you may be able to use the Land Rover housing and your own internals. Throw up a wanted ad in the markets section and see if you have any luck.
    Cheers LotzALandies, 10 Spline and 6 bolt is what I have so as soon as I can learn how I will. Thanks for your help
    Reply With Quote Reply With Quote
  4. 28th February 2012, 06:23 PM #54
    wagoo
    wagoo is offline Wizard
    Join Date
    Oct 2010
    Location
    Dixons Creek Victoria
    Posts
    1,533
    Total Downloaded
    0
    Quote Originally Posted by Dana27 View Post
    G'day. Just wondering what sort of front diff a Landie has as I've got the same Shute Upton Locking hubs on my '64 Scout. Just stumbled on here as it was in the search list. I have exactly the same hub but only one and if a Land Rover runs the same DANA 27 Diff then I may have just found my applicable donor to fit one to the drivers side, maybe they had a blow out before I bought it
    Afraid the PCD of the landRover hub is larger than the Scouts.Try Willys Jeep spares, as some models ran 10 spline Dana 27 front ends.
    Bill.
    Reply With Quote Reply With Quote
  5. 4th March 2012, 06:34 PM #55
    Dauntless
    Dauntless is offline Master Supporter
    Join Date
    May 2007
    Location
    NSW, Australia
    Posts
    137
    Total Downloaded
    0

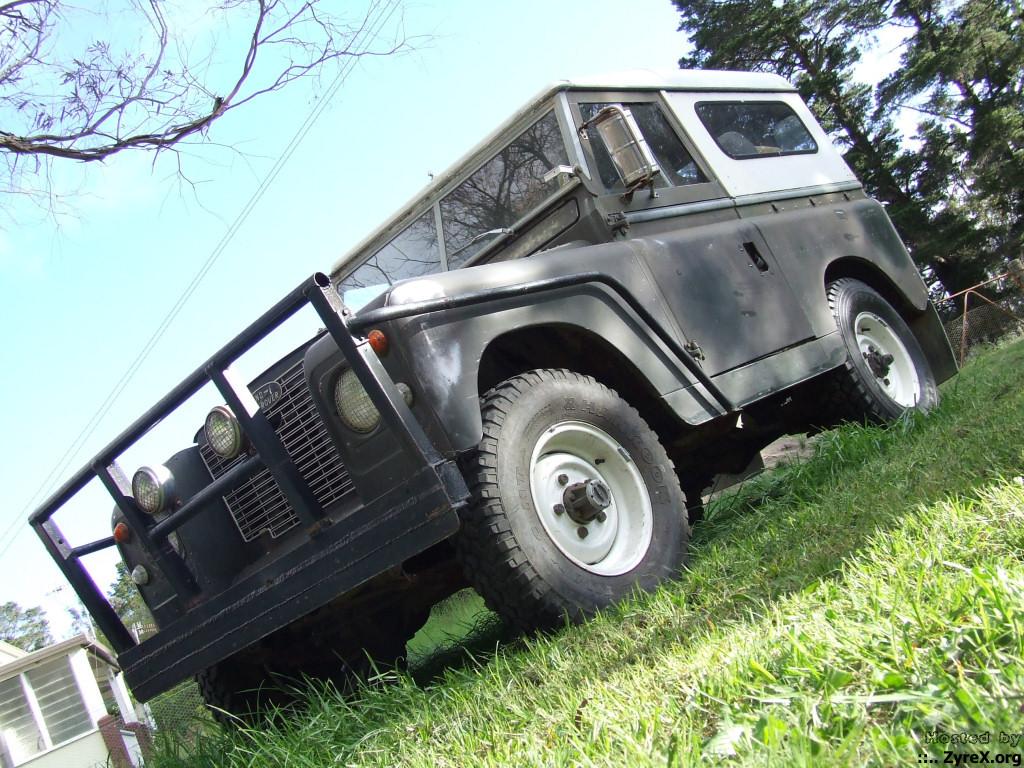

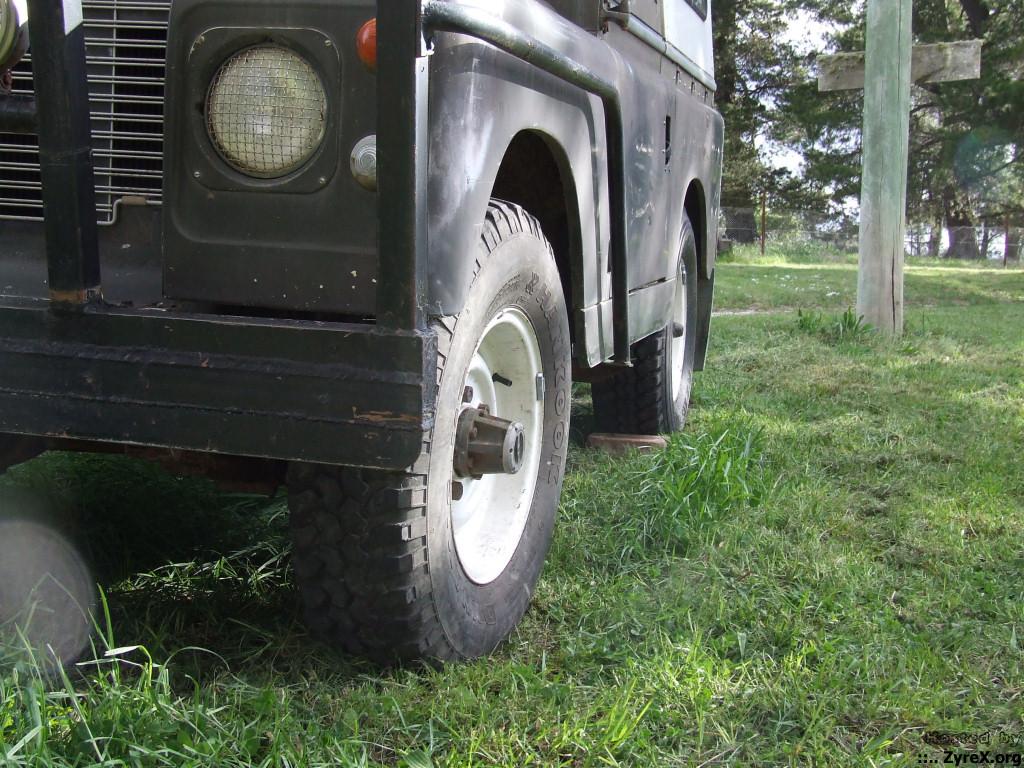

    So how good/bad are the free wheeling hubs on my 2A? It seems nobody has mentioned them so far



    1970 Series IIA 88"
    1997 Discovery 300Tdi
    Reply With Quote Reply With Quote
  6. 5th March 2012, 07:26 AM #56
    123rover50's Avatar
    123rover50
    123rover50 is offline YarnMaster Supporter
    Join Date
    Jun 2009
    Location
    Queensland
    Posts
    3,434
    Total Downloaded
    0
    They look the same as the AVM,s
    Reply With Quote Reply With Quote
  7. 5th March 2012, 10:54 AM #57
    wagoo
    wagoo is offline Wizard
    Join Date
    Oct 2010
    Location
    Dixons Creek Victoria
    Posts
    1,533
    Total Downloaded
    0
    Quote Originally Posted by Dauntless View Post
    So how good/bad are the free wheeling hubs on my 2A? It seems nobody has mentioned them so far

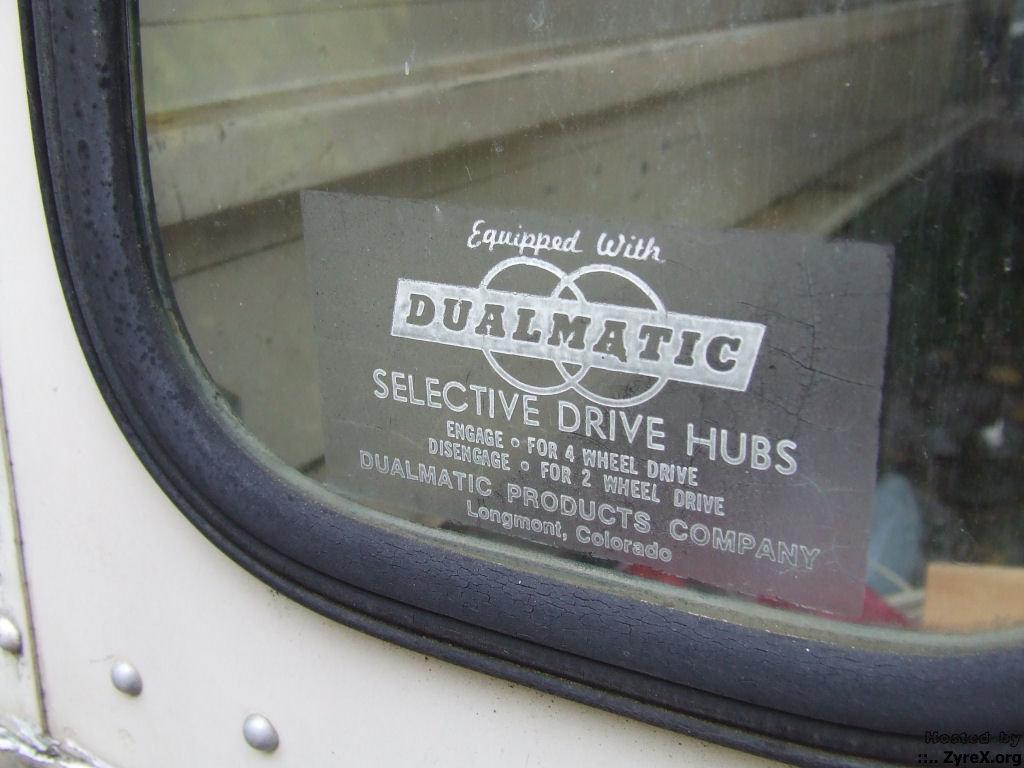

    On very early AVMs the inner splined member rode in a bronze bush fitted to the housing. These lasted quite well unless the outer stub shaft snapped, in which case the guts of the free wheel hub would get pushed out through the dial.Later AVM s were rubbish and wore out quickly as they deleted the bush so that the splined member rode directly in the hubs cast iron housing. If your Dualmatics have a bushing they may be good quality providing the housing was cast either from steel or good quality nodular iron.
    Reply With Quote Reply With Quote
