    1972 Grill

    what was the original finish on a '72 2a grill?
    This is mine now...
    [IMG][/IMG]

    I also need a couple of captive fittings for the top, what do they look like?

    Dave
    Reply With Quote Reply With Quote
  2. 21st June 2016, 01:46 PM #2
    digger's Avatar
    digger
    digger is offline ForumSage Subscriber
    Join Date
    Sep 2007
    Location
    RIVERLAND, SOUTH AUSTRALIA
    Posts
    6,740
    Total Downloaded
    0
    Dave, I may be wrong but I think painted silver finish would be about correct. Someone who knows will correct me I'm sure.

    The top fitting to hold it on is the Land Rover badge, from series one it was their way of making it easy to hold on or take off the grille and saved a bracket and a couple of screws on each car made!

    So Bang on a badge and she'll be ace!
    (REMLR 235/MVCA 9) 80" -'49.(RUST), -'50 & '52. (53-parts) 88" -57 s1, -'63 -s2a -GS x 2-"Horrie"-112-769, "Vet"-112-429(-Vietnam-PRE 1ATF '65) ('66, s2a-as UN CIVPOL), Hans '73- s3 109" '56 s1 x2 77- s3 van (gone)& '12- 110
    Reply With Quote Reply With Quote
  3. 21st June 2016, 02:01 PM #3
    ELLE74's Avatar
    ELLE74
    ELLE74 is offline Fossicker
    Join Date
    Apr 2012
    Location
    Gold Coast
    Posts
    79
    Total Downloaded
    0

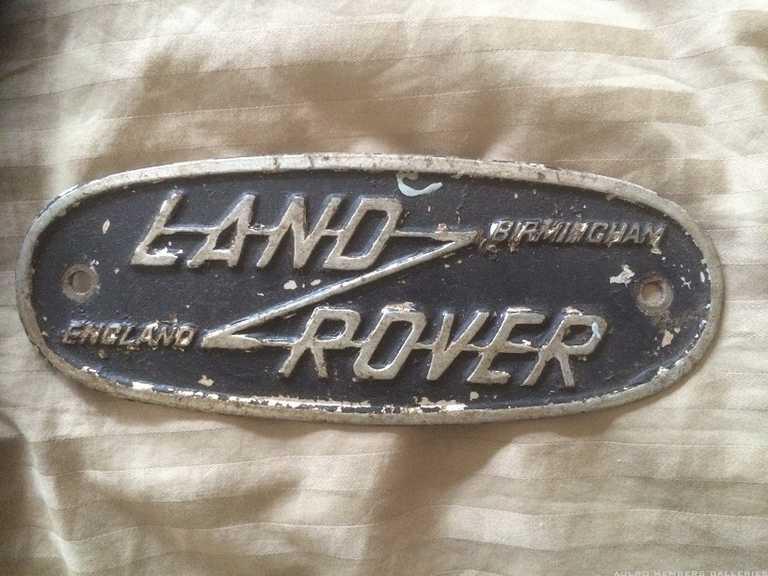

    I was given this by a VW nut the other day...
    Reply With Quote Reply With Quote
  4. 21st June 2016, 02:21 PM #4
    JDNSW's Avatar
    JDNSW
    JDNSW is offline RoverLord Silver Subscriber
    Join Date
    Jan 1970
    Location
    Central West NSW
    Posts
    29,510
    Total Downloaded
    0
    That is the right badge, although it is likely that it originally had "Rover Australia" instead of "Birmingham England", but there were a variety of these fitted at various times and they are all interchangeable (mine has one of each of these at front and back!).

    They are retained by spring steel "nuts" that are expanded by the self tapper thto be retained in the big hole.

    This vintage grille was originally chrome plated.

    John
    John

    JDNSW
    1986 110 County 3.9 diesel
    1970 2a 109 2.25 petrol
    Reply With Quote Reply With Quote
  5. 23rd June 2016, 06:04 AM #5
    mick88's Avatar
    mick88
    mick88 is offline Lord Jock
    Join Date
    Jan 1970
    Location
    Irymple, Victoria, Australia
    Posts
    2,902
    Total Downloaded
    0
    Here is my 1971 2A. The previous (original) owner has made up a couple of stainless steel spacers about five mil wide to go between the grill and the radiator support panel so that the grill would not vibrate against the panel.
    Attached Images Attached Images
    1974 S3 88 Holden 186.
    1971 S2A 88
    1971 S2A 109 6 cyl. tray back.
    1964 S2A 88 "Starfire Four" engine!
    1972 S3 88 x 2
    1959 S2 88 ARN 111-014
    1959 S2 88 ARN 111-556
    1988 Perentie 110 FFR ARN 48-728 steering now KLR PAS!
    REMLR 88
    1969 BSA Bantam B175
    Reply With Quote Reply With Quote
  6. 23rd June 2016, 04:34 PM #6
    mick88's Avatar
    mick88
    mick88 is offline Lord Jock
    Join Date
    Jan 1970
    Location
    Irymple, Victoria, Australia
    Posts
    2,902
    Total Downloaded
    0
    The 1971 2A and three series 3's I have only have "Land Rover" written on the emblem. Another series 3 has Rover Australia Pty Ltd across the bottom of the emblem.


    Cheers, Mick.
    1974 S3 88 Holden 186.
    1971 S2A 88
    1971 S2A 109 6 cyl. tray back.
    1964 S2A 88 "Starfire Four" engine!
    1972 S3 88 x 2
    1959 S2 88 ARN 111-014
    1959 S2 88 ARN 111-556
    1988 Perentie 110 FFR ARN 48-728 steering now KLR PAS!
    REMLR 88
    1969 BSA Bantam B175
    Reply With Quote Reply With Quote
  7. 23rd June 2016, 05:16 PM #7
    ELLE74's Avatar
    ELLE74
    ELLE74 is offline Fossicker
    Join Date
    Apr 2012
    Location
    Gold Coast
    Posts
    79
    Total Downloaded
    0
    Cheers Mick.
    This was put together in Sydney so i will keep an eye out for the proper one.
    Reply With Quote Reply With Quote
  8. 23rd June 2016, 05:39 PM #8
    S3ute's Avatar
    S3ute
    S3ute is offline ChatterBox Supporter
    Join Date
    Jul 2012
    Location
    Brisbane
    Posts
    2,418
    Total Downloaded
    0

    Rear tub

    Quote Originally Posted by mick88 View Post
    The 1971 2A and three series 3's I have only have "Land Rover" written on the emblem. Another series 3 has Rover Australia Pty Ltd across the bottom of the emblem.


    Cheers, Mick.
    Hello from Java.

    Not sure about the 1971 2A as typically it would had the Rover Australia badge fitted front and rear when new - ours did anyway.

    The 'Land-Rover' only badge was generally fitted to the rear tub of the Series 3 trucks and a similar badge, possibly plastic, fitted to the County vehicles. The S3 vehicles had the plastic grill which has the Land-Rover name badge moulded into it. So, they only came new with the one traditional aluminium badge. That's how my present S3 is configured - 1975 model.

    Cheers,

    Neil
    Reply With Quote Reply With Quote
  9. 23rd June 2016, 05:59 PM #9
    weeds's Avatar
    weeds
    weeds is offline Swaggie
    Join Date
    Feb 2005
    Location
    Bracken Ridge - Brisbane - QLD
    Posts
    14,276
    Total Downloaded
    0

    1972 Grill

    Quote Originally Posted by ELLE74 View Post
    Cheers Mick.
    This was put together in Sydney so i will keep an eye out for the proper one.


    I cannot see the pic in post 1 however I have a banged up Rover Australia badge hanging in my garage that might be suitable for you.

    Reply With Quote Reply With Quote
  10. 23rd June 2016, 08:39 PM #10
    mick88's Avatar
    mick88
    mick88 is offline Lord Jock
    Join Date
    Jan 1970
    Location
    Irymple, Victoria, Australia
    Posts
    2,902
    Total Downloaded
    0
    Quote Originally Posted by S3ute View Post
    Hello from Java.

    Not sure about the 1971 2A as typically it would had the Rover Australia badge fitted front and rear when new - ours did anyway.

    The 'Land-Rover' only badge was generally fitted to the rear tub of the Series 3 trucks and a similar badge, possibly plastic, fitted to the County vehicles. The S3 vehicles had the plastic grill which has the Land-Rover name badge moulded into it. So, they only came new with the one traditional aluminium badge. That's how my present S3 is configured - 1975 model.

    Cheers,

    Neil
    The vehicles I have are all 88's bar one of the series 3's which is a 109 two door hardtop and they and all have alloy badges.

    The 1971 2A I have is a one owner vehicle, so I expect that it is as it came off the showroom floor.
    The others being series 3's have the plastic front grill.


    Cheers, Mick.
    1974 S3 88 Holden 186.
    1971 S2A 88
    1971 S2A 109 6 cyl. tray back.
    1964 S2A 88 "Starfire Four" engine!
    1972 S3 88 x 2
    1959 S2 88 ARN 111-014
    1959 S2 88 ARN 111-556
    1988 Perentie 110 FFR ARN 48-728 steering now KLR PAS!
    REMLR 88
    1969 BSA Bantam B175
    Reply With Quote Reply With Quote
