Thread: Wanted: gearbox inspection plate

  1. 24th April 2009, 04:53 PM #1
    isuzutoo-eh's Avatar
    isuzutoo-eh
    isuzutoo-eh is offline TopicToaster
    Join Date
    Apr 2008
    Location
    Near Seven Hills, Sydney
    Posts
    4,342
    Total Downloaded
    0

    Question Wanted: gearbox inspection plate

    Hello all,
    My 2a is missing an inspection/access plate on the gearbox. It is located on the drivers side, near the top. If you look from the brake/clutch cylinders down towards the transmission, its that cover plate 'down there'. Hope that makes sense, its hard to photograph.

    If anyone has one spare, say off a wrecked gearbox, I would appreciate it, I'm happy to spring some $$ towards procurement. Please PM me.

    Failing that, I could do with some dimensions so I can bodge a replacement.
    Thanks,
    Mark
    Reply With Quote Reply With Quote
  2. 24th April 2009, 07:46 PM #2
    Aaron IIA
    Aaron IIA is offline Wizard
    Join Date
    Aug 2007
    Posts
    1,481
    Total Downloaded
    0
    Are you sure you mean the gearbox? Might you be thinking of one of the two plates on the transfer case?

    Aaron.
    Reply With Quote Reply With Quote
  3. 24th April 2009, 08:01 PM #3
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,495
    Total Downloaded
    0
    hes talking about the timing cover for the series 2/2a varient of the 2.25 its on the adaptor plate and its an engine item not a gearbox item, its easy enough to make one if youve got one to template from or can get in there to tap out the template with gasket card which you can then use to mark out a piece of plate.

    I might have one and I'll have a look see while Im cleaning up.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  4. 24th April 2009, 08:22 PM #4
    isuzutoo-eh's Avatar
    isuzutoo-eh
    isuzutoo-eh is offline TopicToaster
    Join Date
    Apr 2008
    Location
    Near Seven Hills, Sydney
    Posts
    4,342
    Total Downloaded
    0
    Hi Aaron, you are probably right.
    However, I thought the transfer case was aft of the gearbox, under the seatbox more or less?
    The panel missing is definately on the engine side of the firewall.

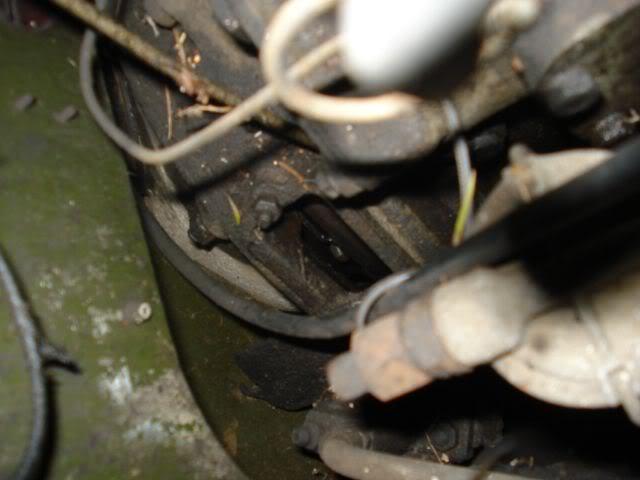

    A picture tells a thousand words...though its kinda hard to see


    Reply With Quote Reply With Quote
  5. 24th April 2009, 08:29 PM #5
    isuzutoo-eh's Avatar
    isuzutoo-eh
    isuzutoo-eh is offline TopicToaster
    Join Date
    Apr 2008
    Location
    Near Seven Hills, Sydney
    Posts
    4,342
    Total Downloaded
    0
    Quote Originally Posted by Blknight.aus View Post
    hes talking about the timing cover for the series 2/2a varient of the 2.25 its on the adaptor plate and its an engine item not a gearbox item, its easy enough to make one if youve got one to template from or can get in there to tap out the template with gasket card which you can then use to mark out a piece of plate.

    I might have one and I'll have a look see while Im cleaning up.
    Thanks Dave, you solved it while i was crawling under the bonnet in the dark. Timing cover makes sense.

    If you do find one, I would appreciate a lend or buy of it. In the mean time, should I attempt to tape it shut or something to keep the leaves and bugs out?
    Last edited by isuzutoo-eh; 24th April 2009 at 08:30 PM. Reason: typo
    Reply With Quote Reply With Quote
  6. 24th April 2009, 08:42 PM #6
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,495
    Total Downloaded
    0
    always a good idea.

    the easiest way is to get an icecream container lid. cut it into 2 strips and then cut one of them in half

    press that onto the studs that stick out and then drill them with a 3/8th drill.

    once youve got that smear some grease onto the housing and put the plastic plate back pull that off and youve got your out line

    once youve got your outline cut it out carefully, you can then template one up out of steel or clean up the grease put some light sealastic onto the bit of plastic and put it back.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
