Reply With QuoteSteve, the truck is looking fantastic! I'm glad its still coming along. Roly must be green!
The axles were from a 1960 seriesII (not IIa), though thats not to say that the axles were original to that vehicle.
RoverLord
what year did landrover go metric ???
Landrover started to go metric right at the end of S2a production with the wheel studs. The process was still incomplete even at the end of S3 production - I believe S3 still had a few BSF (as opposed to UNF) threads left to the end, including the wheel bearing nuts. My 110 still has some UNF.
The change from British Standard to Unified Standard threads started with late Series 1 production, I think the diesel engine was the first assembly to go all Unified.
Dave is correct about the grease packing - assemble wheel bearings packed in grease to provide initial lubrication. This supersedes the earlier provision of oil fillers on the drive flanges. If your drive flanges have these fillers you can fill the hub with oil - 1/3 pint (0.19l) instead of greasing them, but you must do one or the other - you cannot rely on the oil getting to the bearings before they are destroyed.
John
John
JDNSW
1986 110 County 3.9 diesel
1970 2a 109 2.25 petrol
Swaggie
Steve, the truck is looking fantastic! I'm glad its still coming along. Roly must be green!
The axles were from a 1960 seriesII (not IIa), though thats not to say that the axles were original to that vehicle.
Cheers
Slunnie
~ Discovery II Td5 ~ Discovery 3dr V8 ~ Series IIa 6cyl ute ~ Series II V8 ute ~
RoverLord
Hmm! Sure those bolts were metric, not BSF?Originally Posted by Slunnie
John
John
JDNSW
1986 110 County 3.9 diesel
1970 2a 109 2.25 petrol
Master
well, they were definately not UNF. i'll grab a few BSW sockets / spanners from my old man to check if they are..
seems like greasing seems the go, i'll have to check what else needs 'replacing' and put an order in for some parts to replace things.
RoverLord
Just measure the thread pitch - if it is metric it will be 1mm, 1.25mm or 1.5mm or similar, but if BSF will be an integral number per inch.
John
John
JDNSW
1986 110 County 3.9 diesel
1970 2a 109 2.25 petrol
Master
Any Ideas on how the Gear Oil is getting from the diff housing into the drum and coating the brake shoes?
My thoughts looking at the exploded pic in the Landrovers.com.au parts book is R14 (inner bearing oil seal) or R16 (Sleeve for Oil Seal)?i have a couple of sets of Draper Thread gauges, i'll try that tonight.
cool, they are in much better shape than my old ones, i'm going to strip the original down too to compare.
Super Moderator
Oil usually gets onto the brake linings because of the seal in the back of the hub. Often because the surface of the "distance piece" on the stub axle is grooved and undersize.
Take a close look at the surface and if damaged use a cold chisel to separate it from the stub axle and replace both the distance piece and a new hub seal.
Diana
You won't find me on: faceplant; Scipe; Infragam; LumpedIn; ShapCnat or Twitting. I'm just not that interesting.
Master
my draper thread gauges say... the end of the thread is inline with whitworh 20 1/4 i think it was, but the fresh nice bit of the thread (near the head of hte bolt was far from and a different pitch, so it looks like someone has butchered metric bolts in and distorted the threads to tighten?
i pulled the brakes out and found a seized piston in the wheel cylinder, so might just replace all 4 cylinders as well whilst i am at it and look at the drums and shoes. I replaced all the brake lines so may as well finish the job.
ordered the parts from Rover Parts today, hope to get them tomorrow or early next week.
Steve
Master
ok, I got my big box of Parts today, thanks to the friendly service of RoverParts.com.au
popped over to my Father's place to borrow his BSW 5/16 Socket and Spanner...

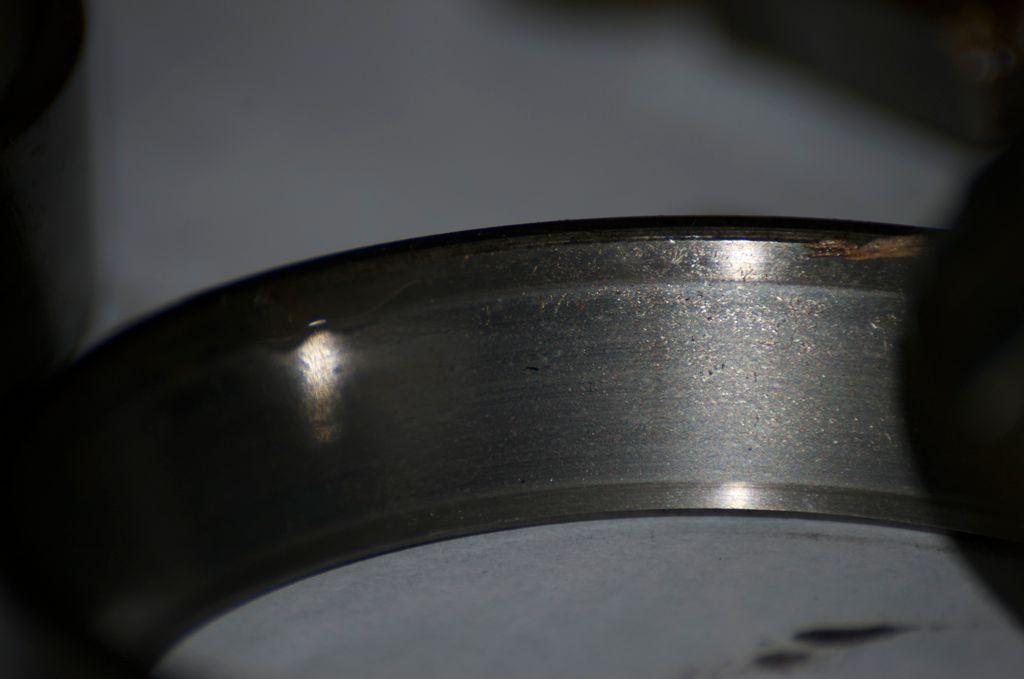

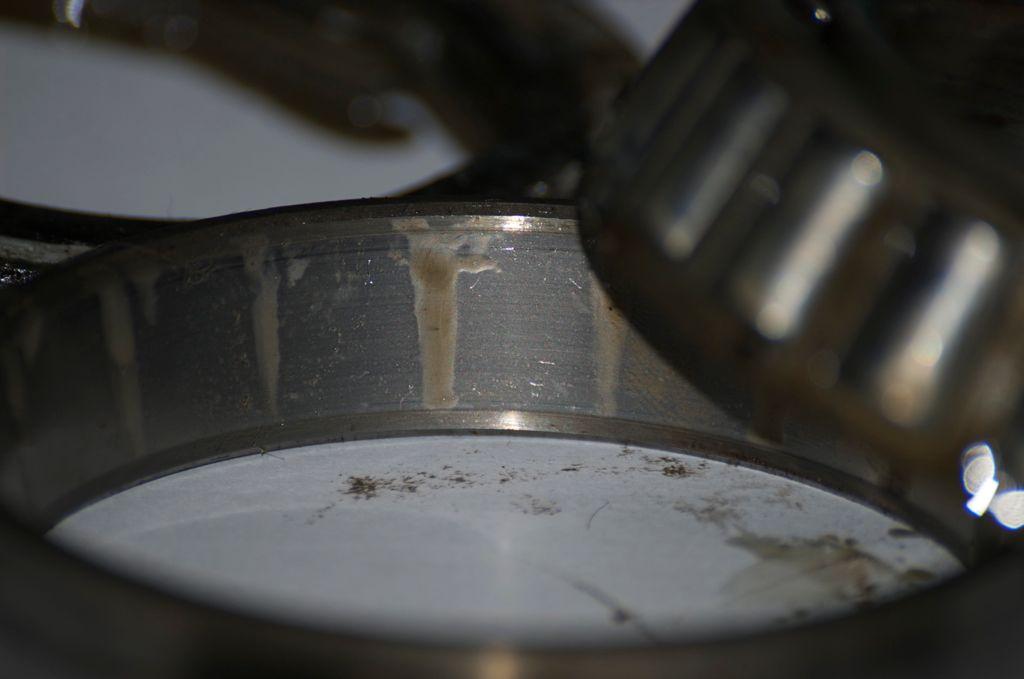

Old Bearing
Pulling Passenger side down:
Master
all my photos of the bits i bought and pulled down hub..
Landrover wheel Bearings 20090511
