    Handbrake return spring

    Does anyone have a picture of where the handbrake return spring mounting point on the transfer case is?

    Thanks, Peter
    Reply With Quote Reply With Quote
  2. 18th January 2010, 07:53 AM #2
    LandyDude's Avatar
    LandyDude
    LandyDude is offline Fossicker
    Join Date
    Jan 2009
    Location
    Queenscliff, Victoria
    Posts
    89
    Total Downloaded
    0
    Quote Originally Posted by peterg1001 View Post
    Does anyone have a picture of where the handbrake return spring mounting point on the transfer case is?

    Thanks, Peter

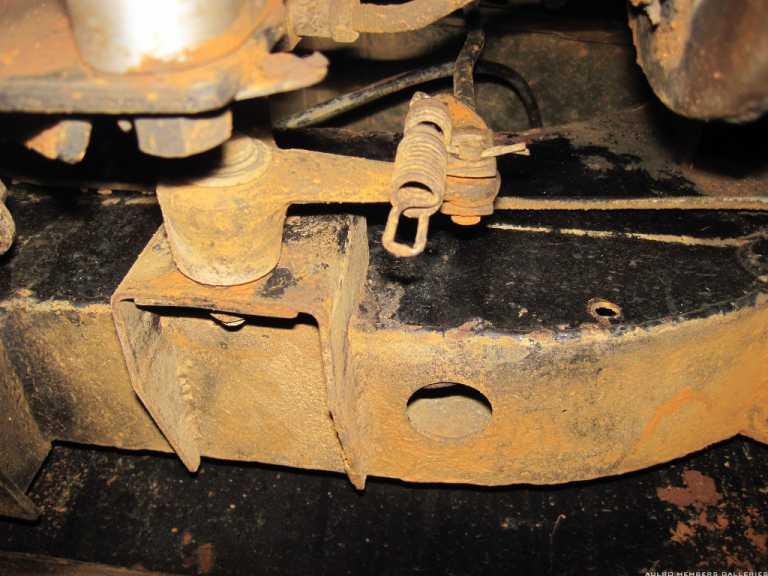

    Here you go...

    Looks like my return spring wasn't doing much .. since it's hanging loose.

    I think it's supposed to be hooked into that little hole on the chassis towards the right hand side.

    Reply With Quote Reply With Quote
  3. 18th January 2010, 09:46 AM #3
    foz.in.oz's Avatar
    foz.in.oz
    foz.in.oz is offline Master
    Join Date
    Jan 2008
    Location
    Gladstone, Queensland
    Posts
    471
    Total Downloaded
    0
    One end of the spring should be attached to the lever as in the previous post and the other should go to a similar bracket on the stud of the gearbox mounting plate on the gearbox.
    Reply With Quote Reply With Quote
  4. 18th January 2010, 10:12 AM #4
    LandyDude's Avatar
    LandyDude
    LandyDude is offline Fossicker
    Join Date
    Jan 2009
    Location
    Queenscliff, Victoria
    Posts
    89
    Total Downloaded
    0

    Red face

    Quote Originally Posted by foz.in.oz View Post
    One end of the spring should be attached to the lever as in the previous post and the other should go to a similar bracket on the stud of the gearbox mounting plate on the gearbox.
    Doh! I'm a doofus.

    I've now attached the spring to the correct bracket .

    Reply With Quote Reply With Quote
  5. 18th January 2010, 05:48 PM #5
    peterg1001
    peterg1001 is offline Master
    Join Date
    Feb 2009
    Location
    Warrimoo, Blue Mountains, NSW
    Posts
    312
    Total Downloaded
    0
    Thanks guys. Now all I have to do is root through the boxes of bits until I find the bracket - or else start to make one.

    Peter
    Reply With Quote Reply With Quote
  6. 18th January 2010, 06:54 PM #6
    Wolfman_TWP's Avatar
    Wolfman_TWP
    Wolfman_TWP is offline Master Silver Subscriber
    Join Date
    May 2009
    Location
    Austral, Sydney, NSW
    Posts
    285
    Total Downloaded
    0
    Quote Originally Posted by peterg1001 View Post
    Thanks guys. Now all I have to do is root through the boxes of bits until I find the bracket - or else start to make one.

    Peter
    If you don't find one, I'm sure that Brian at Land Vehicle Spares will have some, as that is the same bracket that's used for the return spring on the clutch pedal.

    Wolf
    Last edited by Wolfman_TWP; 18th January 2010 at 07:35 PM. Reason: Opps, should have read 'clutch pedal'
