Thread: Help needed with more S3 stage 1 part numbers needed

  1. 2nd May 2009, 06:10 PM #1
    Psimpson7's Avatar
    Psimpson7
    Psimpson7 is offline TopicToaster
    Join Date
    Sep 2007
    Location
    Gold Coast
    Posts
    6,078
    Total Downloaded
    0

    Help needed with more S3 stage 1 part numbers needed

    Hi Everyone,

    Sorry but I need some more help with part numbers for our stage 1.

    We took apart the front brakes and swivels etc, and have found a few more things that need replacing.

    Does anyone have the part numbers for these (with pics):

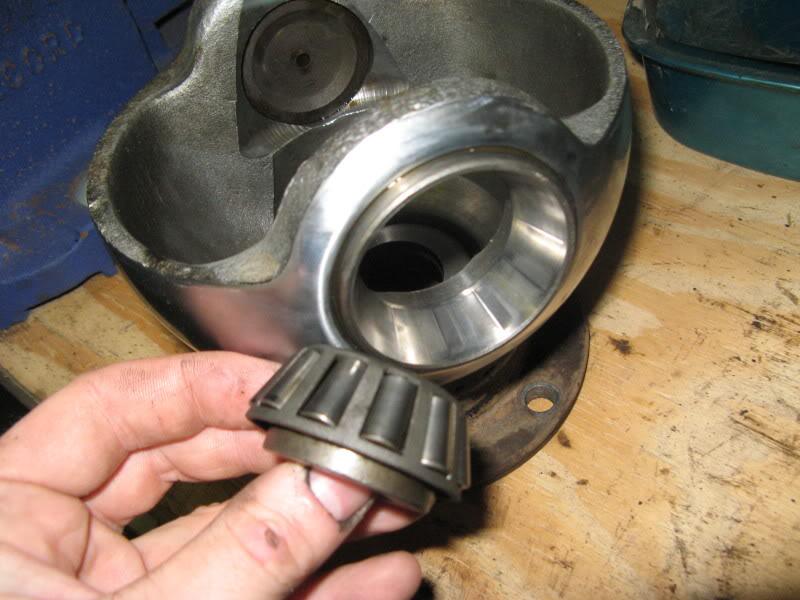

    1. The bearing at the bottom of the swivel? Looks like ours has been standing for a while and the race has left slight dents in the seat?

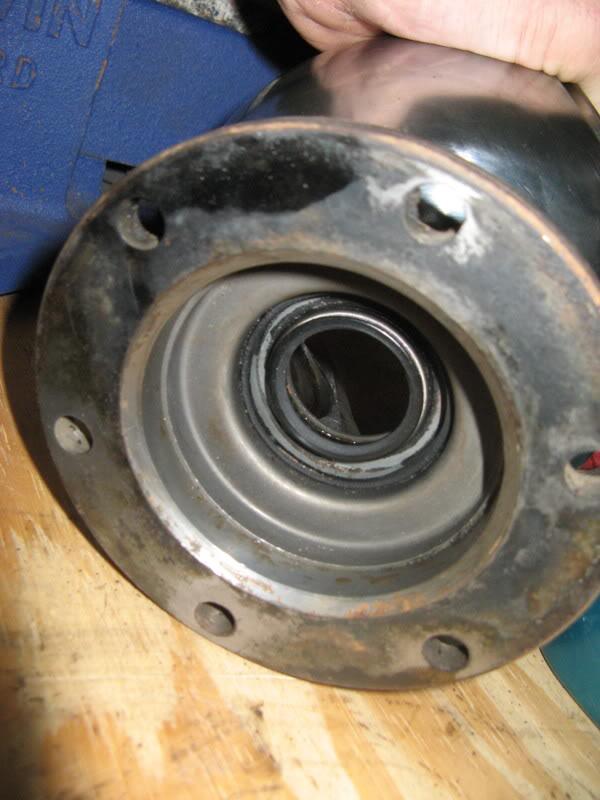

    2. The seal in the base of the swivel housing?

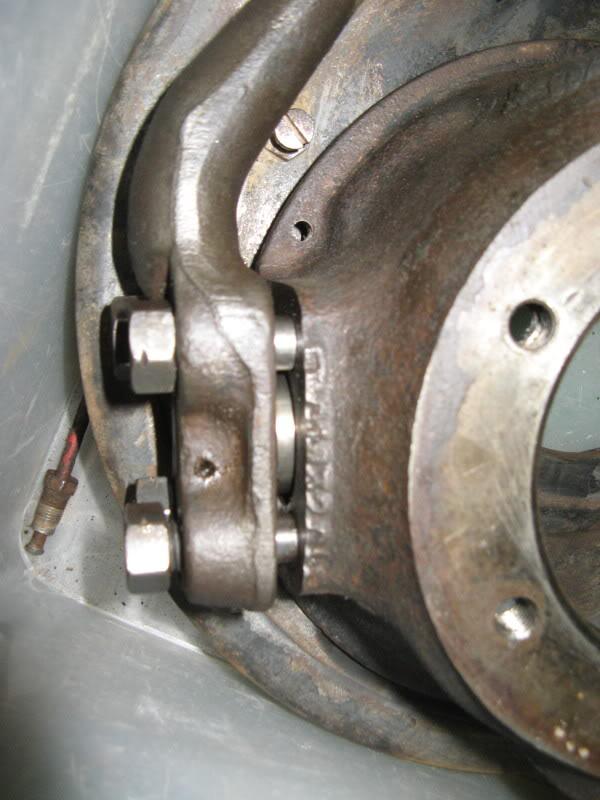

    3. The O'ring that sits under the arm

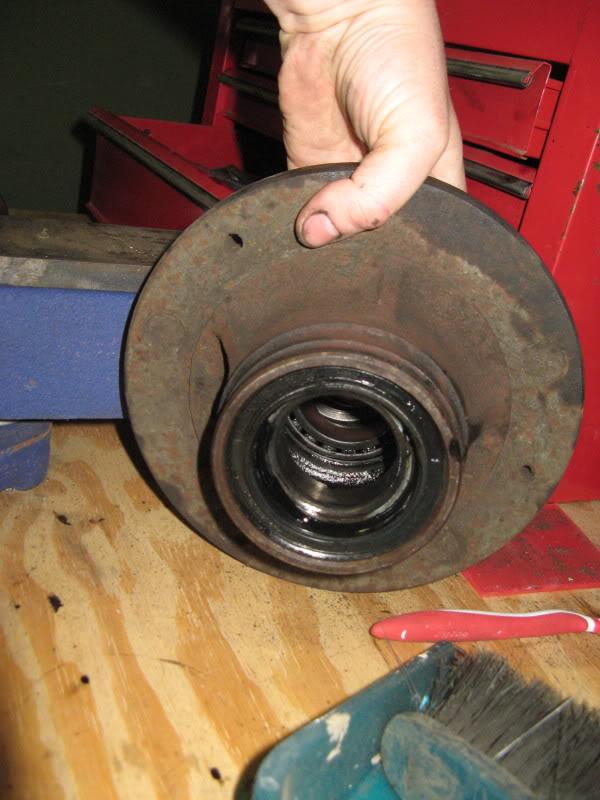

    4. This seal in the base of the hub:



    5. Any others I have forgotten in the hub/steering area that I should probably change!!

    6. The lock washer between the 2 large nuts that do the wheel bearing adjustment

    7. The flexy clutch hose on a v8 stage 1

    Thanks as always!
    Pete
    Reply With Quote Reply With Quote
  2. 3rd May 2009, 12:07 PM #2
    Psimpson7's Avatar
    Psimpson7
    Psimpson7 is offline TopicToaster
    Join Date
    Sep 2007
    Location
    Gold Coast
    Posts
    6,078
    Total Downloaded
    0
    Think I have worked some of them out...maybe?

    1: 217268
    2: 571718
    3: Found this in a Kit with the shims, and Item 1 - no specific part no.
    4: RTC3508 (also found this in kit with wheelbearings RTC3537)
    5:
    6: FRC8002
    7: cant for the life of me find this anywhere
    Reply With Quote Reply With Quote
  3. 4th May 2009, 08:19 AM #3
    agrojnr's Avatar
    agrojnr
    agrojnr is offline Wizard
    Join Date
    Jan 1970
    Location
    Invermay Tasmania
    Posts
    1,732
    Total Downloaded
    0
    Flexi hose is NRC 2211 which also fits defenders

    Adam
    Reply With Quote Reply With Quote
  4. 15th May 2009, 04:03 PM #4
    Psimpson7's Avatar
    Psimpson7
    Psimpson7 is offline TopicToaster
    Join Date
    Sep 2007
    Location
    Gold Coast
    Posts
    6,078
    Total Downloaded
    0
    Dont think NRC2211 is correct. Anyone else got any ideas? Just received one in the post and its different.
    Reply With Quote Reply With Quote
  5. 16th May 2009, 10:27 AM #5
    agrojnr's Avatar
    agrojnr
    agrojnr is offline Wizard
    Join Date
    Jan 1970
    Location
    Invermay Tasmania
    Posts
    1,732
    Total Downloaded
    0
    Thats the one I ordered and it fits

    Adam
    Reply With Quote Reply With Quote
  6. 16th May 2009, 10:50 AM #6
    Psimpson7's Avatar
    Psimpson7
    Psimpson7 is offline TopicToaster
    Join Date
    Sep 2007
    Location
    Gold Coast
    Posts
    6,078
    Total Downloaded
    0
    Interesting! Do you have a picture of it?

    Thanks
    Pete
    Reply With Quote Reply With Quote
