Thread: how to remove front left axle shaft seal? (picture included)

  1. 5th August 2010, 08:27 PM #1
    jackerz's Avatar
    jackerz
    jackerz is offline Master
    Join Date
    Jun 2010
    Location
    perth
    Posts
    147
    Total Downloaded
    0

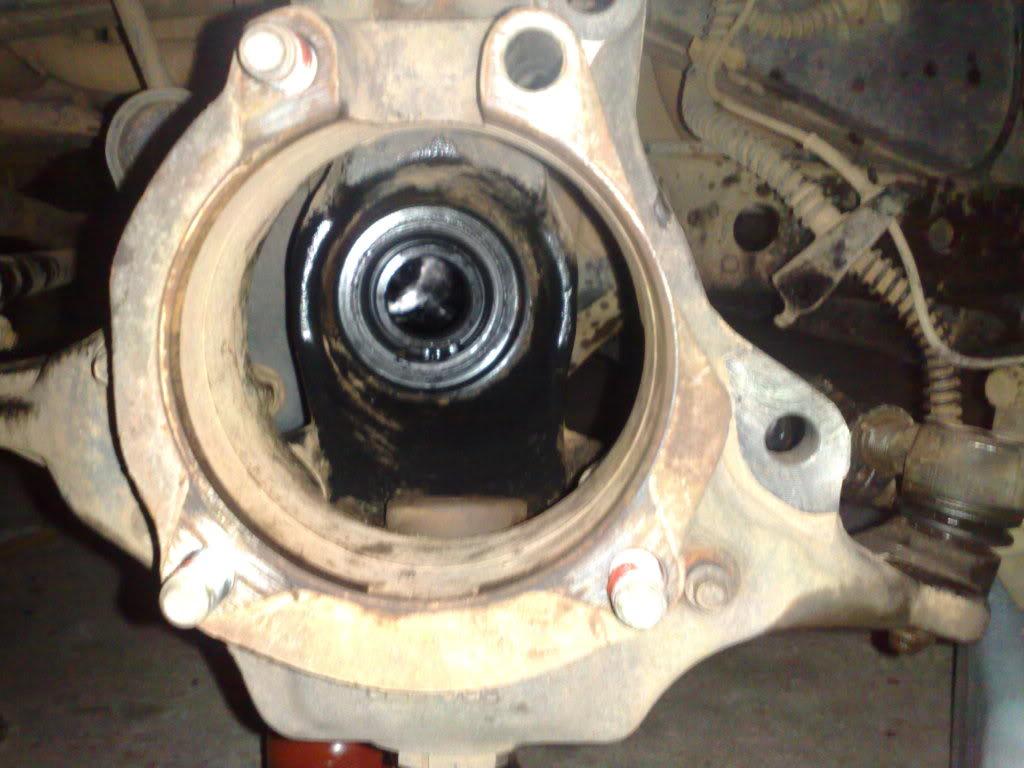

    how to remove front left axle shaft seal? (picture included)

    ok, have everything apart...

    but am stuggling to pull the front left axle shaft seal out.

    i just cant get the bugger out!

    please help!

    cheers


    Reply With Quote Reply With Quote
  2. 5th August 2010, 08:56 PM #2
    MinniTheMoocha's Avatar
    MinniTheMoocha
    MinniTheMoocha is offline Master
    Join Date
    Jul 2007
    Location
    Melbourne, VIC
    Posts
    429
    Total Downloaded
    0
    You need a strong seal pick.

    Otherwise you can try hitting it with a flat head screw driver to make it collapse in on itself.

    The other option but looks like it would be a little hard because it is set in deep is to drill a small pilot hole into the seal, screw in a self tapper and then pull it out by levering on the screw.
    Reply With Quote Reply With Quote
  3. 5th August 2010, 09:19 PM #3
    jackerz's Avatar
    jackerz
    jackerz is offline Master
    Join Date
    Jun 2010
    Location
    perth
    Posts
    147
    Total Downloaded
    0
    cheers...

    i went to pull it out, but i pulled a steel sleeve thing out, and a bit of rubber, but it ripped...

    and it looks like i damages a steel ring inside the axle... not sure if its part of the seal or the axle though.....


    shhhhhhhhiiiiiiiiiiiiiiiiiiiitttttttttttttttttttt
    Reply With Quote Reply With Quote
  4. 5th August 2010, 09:41 PM #4
    MinniTheMoocha's Avatar
    MinniTheMoocha
    MinniTheMoocha is offline Master
    Join Date
    Jul 2007
    Location
    Melbourne, VIC
    Posts
    429
    Total Downloaded
    0
    Quote Originally Posted by jackerz View Post
    cheers...

    i went to pull it out, but i pulled a steel sleeve thing out, and a bit of rubber, but it ripped...

    and it looks like i damages a steel ring inside the axle... not sure if its part of the seal or the axle though.....


    shhhhhhhhiiiiiiiiiiiiiiiiiiiitttttttttttttttttttt
    Doesn't sound great but I suspect the steel ring is a part of the seal. I need to pull up the RAVE cd to check about the "sleeve thing" though as I am not sure.

    I am soon to replace this seal as oil has migrated from the diff housing to the CV's. Also will replace the swivel seal as I have a little weep from one of them.

    Will try check it a little later but hopefully someone else will chime in.
    Reply With Quote Reply With Quote
  5. 5th August 2010, 09:50 PM #5
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,495
    Total Downloaded
    0
    stop being lazy and unbolt the swivel housing like your supposed to.

    then you just lever it out with a screwdriver.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  6. 5th August 2010, 10:00 PM #6
    jackerz's Avatar
    jackerz
    jackerz is offline Master
    Join Date
    Jun 2010
    Location
    perth
    Posts
    147
    Total Downloaded
    0
    im not being lazy....

    i actually dont know what you mean...
    Reply With Quote Reply With Quote
  7. 5th August 2010, 10:50 PM #7
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,495
    Total Downloaded
    0
    look up over the top of the ball joint about inline with where that seal sits you'll find a flange secured with 7 12 point bolt. Remove those bolts, remove the chrome swivel ball and then have at the seal.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  8. 5th August 2010, 10:57 PM #8
    BigJon's Avatar
    BigJon
    BigJon is offline ForumSage
    Join Date
    Jan 1970
    Location
    Adelaide - Torrens Park
    Posts
    7,291
    Total Downloaded
    0
    Dunno about that, looks D2 to me...
    Reply With Quote Reply With Quote
  9. 5th August 2010, 11:00 PM #9
    jackerz's Avatar
    jackerz
    jackerz is offline Master
    Join Date
    Jun 2010
    Location
    perth
    Posts
    147
    Total Downloaded
    0
    Quote Originally Posted by Blknight.aus View Post
    look up over the top of the ball joint about inline with where that seal sits you'll find a flange secured with 7 12 point bolt. Remove those bolts, remove the chrome swivel ball and then have at the seal.

    cheers
    Reply With Quote Reply With Quote
  10. 5th August 2010, 11:10 PM #10
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,495
    Total Downloaded
    0
    nyargh spuds.. it is too....

    the D2's I get with a set of hooked leg calipers (they look like a compass but with points on both legs and they are bent inwards) swing the legs so the points hook outwards insert them into the seal and then work at it, takes a couple of minutes but it usually works.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
