    reason for my noisy clutch...

    Had a noisy clutch for a bout 2 week progressively getting worse (unfortunately as my only going car i had to occasionally use it - it was still surprising it died considering the lack of use I used it until a point where it was metal on metal) about the same time my other car got the rear windscreen put back in.

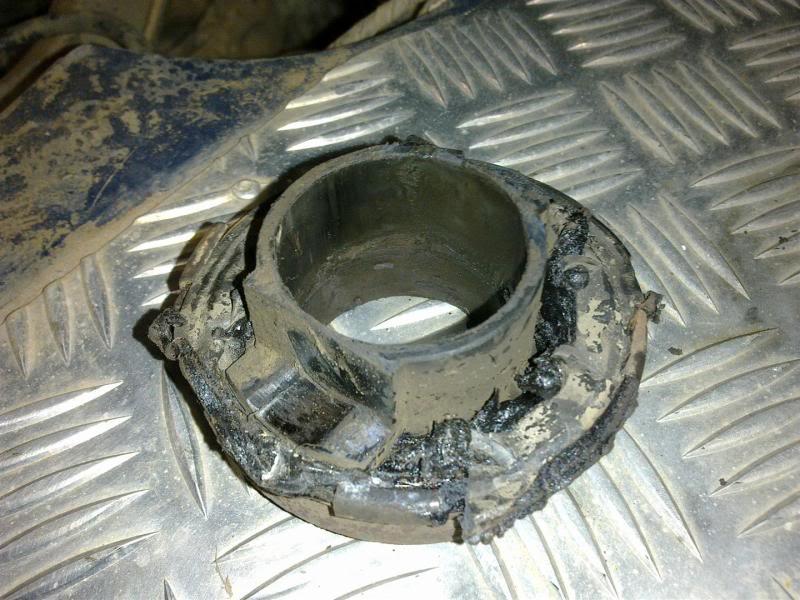

    Pulled the box out heres the damage
    Attached Images Attached Images

  2. #2
    Join Date
    May 2008
    Location
    Rockhampton
    Posts
    275
    Total Downloaded
    0
    other then adding more lube/soaking the bearing in oil. is there anything else i could do to make this bearing last longer.

    Heard about a plug or something for doing water crossings?

  3. #3
    Join Date
    Apr 2009
    Location
    Crafers West South Australia
    Posts
    11,732
    Total Downloaded
    0
    Quote Originally Posted by brend0n View Post
    other then adding more lube/soaking the bearing in oil. is there anything else i could do to make this bearing last longer.

    Heard about a plug or something for doing water crossings?
    Just put in a new thrust bearing; they have a lifespan and you exceeded it.
    I wouldn't soak it in anything, it's packed with grease. Mostly they get replaced with the clutch because they are due about the same time.

  4. #4
    Join Date
    Sep 2007
    Location
    Gold Coast
    Posts
    6,078
    Total Downloaded
    0
    You can buy a heavy duty aluminium thrust bearing nowdays.

    I have done similar


  5. #5
    Join Date
    May 2008
    Location
    Rockhampton
    Posts
    275
    Total Downloaded
    0
    Quote Originally Posted by bee utey View Post
    Just put in a new thrust bearing; they have a lifespan and you exceeded it.
    I wouldn't soak it in anything, it's packed with grease. Mostly they get replaced with the clutch because they are due about the same time.
    I would expect more then 14 months out of it, that why i though it may have been premature wear

  6. #6
    It'sNotWorthComplaining! Guest
    Quote Originally Posted by brend0n View Post
    I would expect more then 14 months out of it, that why i though it may have been premature wear
    they melt as they get hot, haven't been riding the clutch????

  7. #7
    Join Date
    Jan 1970
    Location
    under a rock, next to a tree, at Broadmarsh
    Posts
    6,738
    Total Downloaded
    0

    adjustment

    Hi brend0n and People

    That last picture looks to me as if the bearing has been in constant contact with the fingers.

    Make sure that there is small amount of clearance when the clutch is disengaged, and the return spring is still doing its job.

    If wrong parts have been used, then there is a bit of sorting out to be done.

    Cheers Arthur

  8. #8
    Join Date
    May 2008
    Location
    Rockhampton
    Posts
    275
    Total Downloaded
    0
    thanks guys.

    From what i can tell from my one the top pic. the plastic only started melting when the bearing seized...

    maybe it is my driving style but I don't ride the clutch and I've only ever owned manual vehicles, and had no other clutch wear issues in other cars...hmmm
    interesting

    Clutch kit arrived so I'll chuck in the new one and see what happens in 14 months time

    Psimpson7:where can i get this aluminium HD one from?

  9. #9
    Join Date
    Sep 2007
    Location
    Gold Coast
    Posts
    6,078
    Total Downloaded
    0
    Quote Originally Posted by brend0n View Post
    Psimpson7:where can i get this aluminium HD one from?
    Sorry Brendon,

    I missed your question.

    Mine came from Rakeway in the UK but quite a few places do them at least for a td5. Devon 4x4 link below.

    Heavy Duty Release Bearing

    cheers
    Pete
