Thread: Free Camber

A is the measurement you're after when no load is on the spring.

Originally Posted by Slunnie

A is the measurement you're after when no load is on the spring.

That means that a completely flat L/R spring has camber of let's say about 19mm. Is that correct ?.W.

your diagram would be correct for a series and is how I remember doing it when the spring shop in townsville asked for the measurement.

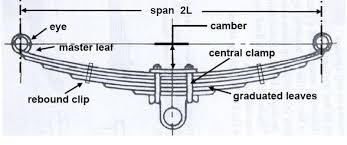

As per this pic
However







both those versions can be used.

Then it gets complicated.
Suspension Specialists, Technical Bulletin Number 4

Have a read of that and pay attention to the different eye forms. Changing the eye form changes the measurement in a different way in all cases, the same amount in 2 of them and more in the third.


My advise is to talk to the suspension shop you're going to and ask them how they want to do the measurement.
