Thread: What is the name of this pulley?

  1. 1st October 2013, 09:00 PM #1
    PerthPT
    PerthPT is offline Fossicker
    Join Date
    Oct 2013
    Location
    Perth
    Posts
    17
    Total Downloaded
    0

    What is the name of this pulley?

    Hey fellas, I've just bought myself a 1996 Disco 1 TDi and was wondering if some of you gurus could help a newby out.

    I'm have no experience with cars and engines but i'm keen to learn =D

    The last time the PO took her out one of the pulley bearings from the air con system seized up and he had to cut it off, luckily it didn't damage anything else.

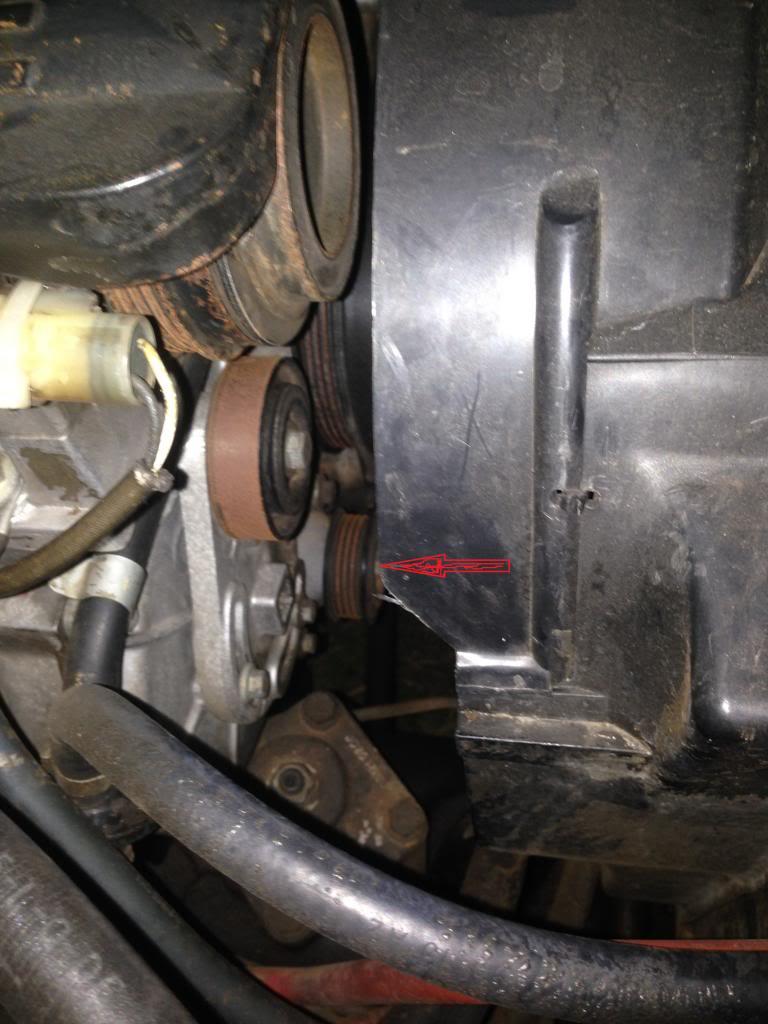

    I have a replacement air con belt but i've got no idea what the name of the pulley with the red arrow next to it in the pic is and i cant find it in the manual which makes it hard to buy a replacement one haha.

    [/URL]

    Any ideas?

    Ive found the tutorial http://www.aulro.com/afvb/projects-t...or-pulley.html

    which i figure will carry me through putting the belt back on =D

    One last question, do i need to take the engine out to do this repair or can i do it in the car?

    Cheers
    Paul
    Reply With Quote Reply With Quote
  2. 1st October 2013, 09:06 PM #2
    justinc's Avatar
    justinc
    justinc is offline Swaggie Vendor
    Join Date
    Aug 2006
    Location
    Kingston, Tassie, OZ.
    Posts
    13,728
    Total Downloaded
    0
    that is the a/c idler pulley, bearings for both the idler and tensioner are 6203 part number, any engineering supplies will stock them. you will need to remove them from the vehicle, drill next to the circlip , hook it out, press the bearing out, new one in , refit circlip and all is well

    jc
    The Isuzu 110. Solid and as dependable as a rock, coming soon with auto box😊
    The Range Rover L322 4.4.TTDV8 ....probably won't bother with the remap..😈
    Reply With Quote Reply With Quote
  3. 1st October 2013, 10:22 PM #3
    PerthPT
    PerthPT is offline Fossicker
    Join Date
    Oct 2013
    Location
    Perth
    Posts
    17
    Total Downloaded
    0
    Cheers for the quick replay mate, ill pick one up and give it a shot.

    Do i need to remove the engine from the car to get the idler pulley out, replace it and put the new belt on?

    PT
    Reply With Quote Reply With Quote
  4. 1st October 2013, 10:33 PM #4
    justinc's Avatar
    justinc
    justinc is offline Swaggie Vendor
    Join Date
    Aug 2006
    Location
    Kingston, Tassie, OZ.
    Posts
    13,728
    Total Downloaded
    0
    Quote Originally Posted by PerthPT View Post
    Cheers for the quick replay mate, ill pick one up and give it a shot.

    Do i need to remove the engine from the car to get the idler pulley out, replace it and put the new belt on?

    PT



    no.

    jc
    The Isuzu 110. Solid and as dependable as a rock, coming soon with auto box😊
    The Range Rover L322 4.4.TTDV8 ....probably won't bother with the remap..😈
    Reply With Quote Reply With Quote
  5. 1st October 2013, 11:45 PM #5
    PerthPT
    PerthPT is offline Fossicker
    Join Date
    Oct 2013
    Location
    Perth
    Posts
    17
    Total Downloaded
    0
    Sweet, lol like i said i don't know bugger all about engines - yet.

    Thanks for the help mate, i appreciate it

    PT
    Reply With Quote Reply With Quote
  6. 2nd October 2013, 05:34 PM #6
    Pierre
    Pierre is offline Wizard Silver Subscriber
    Join Date
    Jan 1970
    Location
    Blairgowrie, Vic
    Posts
    1,106
    Total Downloaded
    0

    And get some help from....

    Get a RAVE manual set from the Shop at the top of the page. It's got all the guff about Land Rovers of all sorts.

    Pete
    Dizzie, 08 D3 TDV6 SE
    Reply With Quote Reply With Quote
  7. 2nd October 2013, 06:00 PM #7
    Xtreme's Avatar
    Xtreme
    Xtreme is offline AT REST Subscriber
    Join Date
    Jan 1970
    Location
    Normanhurst, NSW
    Posts
    10,258
    Total Downloaded
    0
    IIRC there are two other idler pulleys on the D1 system - I'd suggest replacing all three bearings while you're at it. And I'm pretty sure they're all the same size bearing.
    Roger
    Reply With Quote Reply With Quote
