Thread: Six wheel drive conversion?

  1. 3rd November 2004, 10:09 PM #11
    uninformed
    uninformed is offline ForumSage
    Join Date
    Jan 1970
    Location
    Gold Coast
    Posts
    5,101
    Total Downloaded
    0
    Yes, pto's can be run on current defenders, Maxi drive make both a chain drive pto for shaft driven pto winchs and a direct hydralic pump pto for hydralic applications, custom stuff can be made to order. i don't know how you would go about the shaft speeds, but if anyone would know Mal would, also go over to the Outerlimits4x4 site and look for "daddylonglegs" hey is very tech and has built his on 6x6 among other things.

    cheers Serg
    Reply With Quote Reply With Quote
  2. 4th November 2004, 08:50 AM #12
    Hellspawn Guest
    Don't know about the newer PTO's but the older ones weren't that strong.
    Must work though.

    Has the 'look' anyway. [img]style_emoticons/<#EMO_DIR#>/biggrin.gif[/img]
    Reply With Quote Reply With Quote
  3. 12th August 2013, 10:24 PM #13
    streaky Guest
    There's only one company that I know worth talking to for the 6x6...Bob James at 6x6Australia near Lismore.
    I bought them in to make the Nissan 8x8 for HRH Sheikh Hamad of the UAE.

    What Bob doesn't know about the 6x6 isn't worth knowing...he's your man for a quote to convert your 110 into a 6x6.
    They will quote using their own design or for the lesser efficient system used by Foleys etc....
    Reply With Quote Reply With Quote
  4. 12th August 2013, 10:36 PM #14
    Lotz-A-Landies's Avatar
    Lotz-A-Landies
    Lotz-A-Landies is offline Super Moderator Gold Subscriber
    Join Date
    Jul 2006
    Location
    East-South-East Girt-By-Sea
    Posts
    17,662
    Total Downloaded
    1.20 MB
    The marketplace alert on the fire service in Tasmania selling a 1981 leaf sprung Land Rover 6X6 has been moved to the correct forum.

    Streaky in regard to Aussie6X6 what is their comparison with the SMC system or the similar one on the Mercedes G-Wagen or even the different again perentie 6X6 system (Both of which are different to the foley and 6X6 oz)?

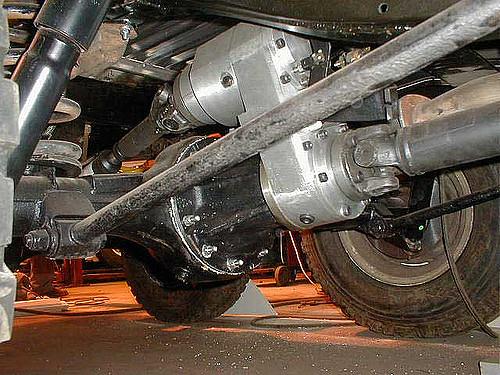

    This is the 6x6 oz system



    The Mercedes G-Wagen system

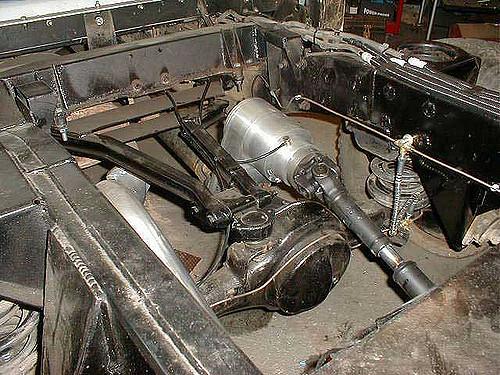

    This is the Foley system


    You won't find me on: faceplant; Scipe; Infragam; LumpedIn; ShapCnat or Twitting. I'm just not that interesting.
    Reply With Quote Reply With Quote
  5. 13th August 2013, 06:07 AM #15
    123rover50's Avatar
    123rover50
    123rover50 is offline YarnMaster Supporter
    Join Date
    Jun 2009
    Location
    Queensland
    Posts
    3,434
    Total Downloaded
    0
    The third axle drive comes out of the PTO hole of the LT95 but is driven by different gears to the normal LT95 PTO.
    Dont get them confused.
    Reply With Quote Reply With Quote
  6. 13th August 2013, 10:00 AM #16
    isuzutoo-eh's Avatar
    isuzutoo-eh
    isuzutoo-eh is offline TopicToaster
    Join Date
    Apr 2008
    Location
    Near Seven Hills, Sydney
    Posts
    4,342
    Total Downloaded
    0
    Wow, a 2013 reply to a 2004 thread...

    Why would anyone want to convert a Defender when you can buy a well thought out package with more elbow room straight from the auctions right now?
    Reply With Quote Reply With Quote
  7. 13th August 2013, 10:05 AM #17
    Lotz-A-Landies's Avatar
    Lotz-A-Landies
    Lotz-A-Landies is offline Super Moderator Gold Subscriber
    Join Date
    Jul 2006
    Location
    East-South-East Girt-By-Sea
    Posts
    17,662
    Total Downloaded
    1.20 MB
    The thread was resurrected by a marketplace alert which was moved to the correct location, leaving streaky's post hanging out in space seemingly irrelevant.

    You won't find me on: faceplant; Scipe; Infragam; LumpedIn; ShapCnat or Twitting. I'm just not that interesting.
    Reply With Quote Reply With Quote
  8. 13th August 2013, 11:31 AM #18
    isuzutoo-eh's Avatar
    isuzutoo-eh
    isuzutoo-eh is offline TopicToaster
    Join Date
    Apr 2008
    Location
    Near Seven Hills, Sydney
    Posts
    4,342
    Total Downloaded
    0
    Aha, Gotcha.
    Reply With Quote Reply With Quote
  9. 13th August 2013, 03:33 PM #19
    streaky Guest
    I'm no expert when it comes to these things mate but I know the Oz6x6 bogie system provides heaps more articulation that any other out there.
    Bob also uses a drive-thru housing now that's much stronger and more reliable that the transfer case shown in the pictures.

    This year we saw the introduction of the 6x6 G-Wagon which by all accounts is a rocket ship in straight lines and desert tracks.....what they don't tell you is that it's full time 6 wheel drive is a potential death trap on corners since it has a tendency to want to go straight on! It's articulation is the worst I've seen on a 6x6 ever!
    Again....I just quoting what I've been told and not from personal experience.
    Reply With Quote Reply With Quote
  10. 13th August 2013, 03:59 PM #20
    Lotz-A-Landies's Avatar
    Lotz-A-Landies
    Lotz-A-Landies is offline Super Moderator Gold Subscriber
    Join Date
    Jul 2006
    Location
    East-South-East Girt-By-Sea
    Posts
    17,662
    Total Downloaded
    1.20 MB
    Sound's like the G Wagen power divider isn't unlocking, although any bogy axle system whether driven or not has a tendency for straight line travel. Just look at a tandem axle trailer when you want to turn it around.

    Do you think the limited axle articulation on the G-Wagen is the anti-roll bars?

    The different 6X6 systems of interest to me as I re-assemble my Renolds-Boughton 6x6 Defender "Ikea", currently we're merging a Maxi-Drive locking diff into the middle axle.

    You won't find me on: faceplant; Scipe; Infragam; LumpedIn; ShapCnat or Twitting. I'm just not that interesting.
