Thread: R380 output shaft. Anyone seen this before?

  1. 13th October 2014, 08:36 PM #1
    Svengali0's Avatar
    Svengali0
    Svengali0 is offline Master Subscriber
    Join Date
    Dec 2010
    Location
    Batemans Bay mostly, and Brisbane
    Posts
    255
    Total Downloaded
    0

    R380 output shaft. Anyone seen this before?

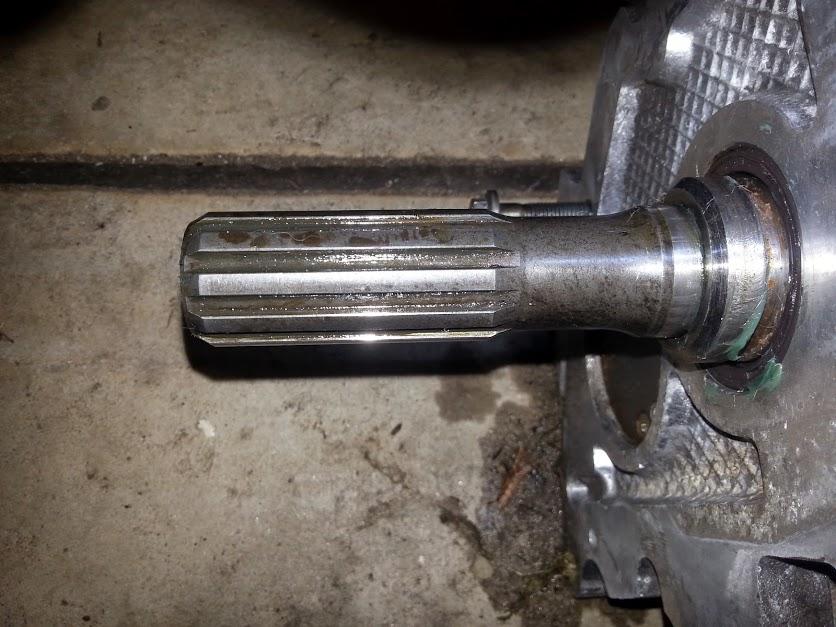

    This is output shaft suffix L gearbox.

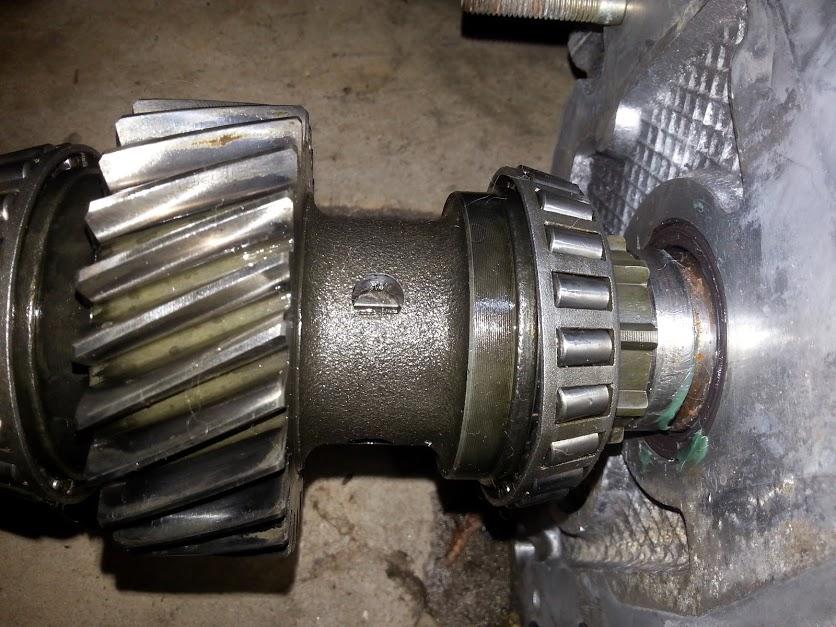

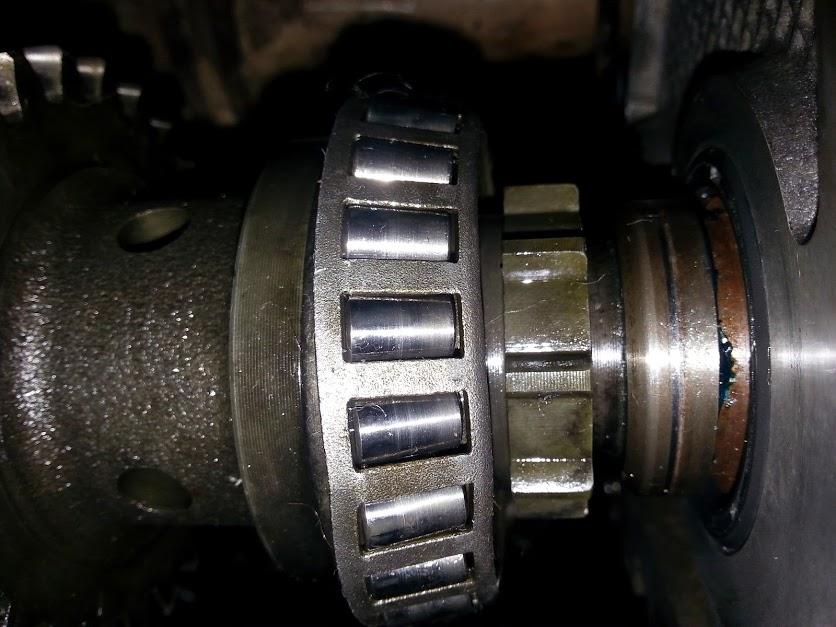

    With input gear. Notice the gap at the end? This ends up being a problem when fitting the LT230 box. Input gear is not seating correctly.

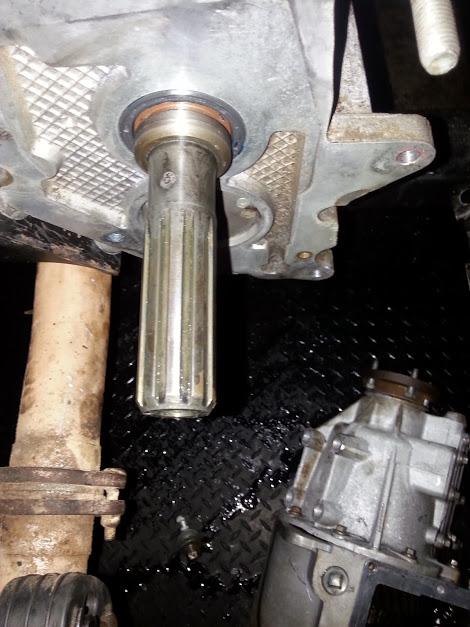

    This shaft on the suffix J box just removed from the vehicle. Splines don't terminate and allow the input gear to butt up against the collar.



    Input gear fitting neatly on the shaft- no issues.



    Has anyone seen this before?

    Ideas/Solutions?
    Reply With Quote Reply With Quote
  2. 13th October 2014, 09:04 PM #2
    bee utey's Avatar
    bee utey
    bee utey is offline AT REST
    Join Date
    Apr 2009
    Location
    Crafers West South Australia
    Posts
    11,732
    Total Downloaded
    0
    Faced with that scenario I'd happily put the input gear into my small lathe and trim the internal spline with a tungsten carbide tipped boring bit. You obviously only need to take off enough to match the curve at the inner end of the shaft spline. It wouldn't significantly weaken the drive.
    Reply With Quote Reply With Quote
  3. 13th October 2014, 09:08 PM #3
    justinc's Avatar
    justinc
    justinc is offline Swaggie Vendor
    Join Date
    Aug 2006
    Location
    Kingston, Tassie, OZ.
    Posts
    13,728
    Total Downloaded
    0
    For starters the input gear should be the other way around, and if there is still a problem then you will have to bore the inner splines of the input gear.

    Jc
    The Isuzu 110. Solid and as dependable as a rock, coming soon with auto box😊
    The Range Rover L322 4.4.TTDV8 ....probably won't bother with the remap..😈
    Reply With Quote Reply With Quote
  4. 13th October 2014, 09:16 PM #4
    Ancient Mariner
    Ancient Mariner is offline Wizard
    Join Date
    Oct 2012
    Location
    FNQ
    Posts
    1,723
    Total Downloaded
    0
    The gear is arse apeak X2
    Reply With Quote Reply With Quote
  5. 14th October 2014, 12:28 AM #5
    Ian Ashcroft
    Ian Ashcroft is offline Fossicker
    Join Date
    Nov 2009
    Location
    Mazarron,Murcia, Spain
    Posts
    61
    Total Downloaded
    0
    X3 It's so embarrassing isn't it??? Ian ashcroft
    Reply With Quote Reply With Quote
  6. 14th October 2014, 12:56 AM #6
    isuzurover's Avatar
    isuzurover
    isuzurover is offline Swaggie
    Join Date
    Aug 2006
    Location
    WA
    Posts
    13,786
    Total Downloaded
    0
    x4

    If you had the t-case bolted up you would realise the error of your ways...
    Reply With Quote Reply With Quote
  7. 14th October 2014, 04:17 AM #7
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,497
    Total Downloaded
    0
    X5.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  8. 14th October 2014, 05:11 AM #8
    Svengali0's Avatar
    Svengali0
    Svengali0 is offline Master Subscriber
    Join Date
    Dec 2010
    Location
    Batemans Bay mostly, and Brisbane
    Posts
    255
    Total Downloaded
    0
    ok kill me now....
    But in defence, when the case was bolted up I did 'try it both ways' and the gear seemed unwilling to home in correctly.
    I should um, stick to my day job then shall I...
    Reply With Quote Reply With Quote
  9. 14th October 2014, 09:27 AM #9
    PAT303
    PAT303 is offline OldBushie
    Join Date
    May 2007
    Location
    Safety Bay
    Posts
    8,041
    Total Downloaded
    0
    You are going to replace the bearing aren't you?.Remember,it's better to ask a dumb question than make a dumb mistake,good luck with it. Pat
    Reply With Quote Reply With Quote
  10. 15th October 2014, 05:15 AM #10
    Jode
    Jode is offline Master
    Join Date
    Jul 2012
    Location
    Gaborone, Botswana
    Posts
    216
    Total Downloaded
    0
    Quote Originally Posted by Ian Ashcroft View Post
    X3 It's so embarrassing isn't it??? Ian ashcroft
    Aw, heck, Ian, very few of us are anywhere near as experienced with LR gearboxes as you. Hand on my heart, I could very well have done the same thing in the heat of the moment. Let's all just take a deep breath....
