Thread: 300TDI Tacho

I don't have a tacho, so I can't help with experience.
I have noticed that some marine tachos don't have a very large range. ie the max rpm can be 3500 or so. Worth checking if you haven't already.

VDO Tacho 0-6000rpm p/n 333 035 017.

Think it coast about $130 and $15 for the optional housing, or you can replace your clock. The VDO is the genuine gauge. Connects to the alternator.

I just happen to have one sitting in front of me that I have yet to install. It's on the list of things to do to the Defender.

[quote The VDO is the genuine gauge. Connects to the alternator.
quote]

Never done it but planning to as well - are there any special hints for when hooking up to the alt or is it perhaps explained 'in the box'?

Cheers
Cameron

Originally Posted by cameron

Never done it but planning to as well - are there any special hints for when hooking up to the alt or is it perhaps explained 'in the box'?

Let you know when I install it. I'm thinking it now won't be until I get the Dash pod. The instructions are pretty simple: Connect to W terminal of alternator.

TD5 tacho is different to the TDI Tacho

Originally Posted by isuzu110

Hi All

Done some searching of the archives but still interested to know what tacho's (make, model, max rpm etc) people have retrofitted to their 300 TDIs and what did they cost.

I'm looking at a TFX tacho intended for a marine diesel and it still takes the signal from the alt so I can't see why it would not work.

Thanks

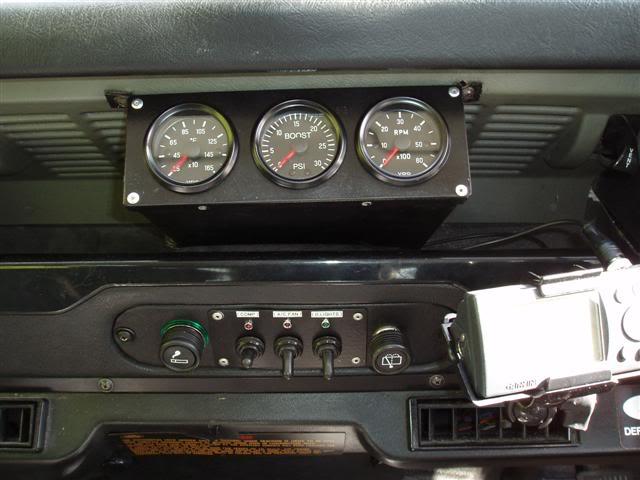

VDO, connected to w terminal. EGT & boost gauges all VDO too matching the original factory gauges:
