Thread: Swivel seal retaining plate

  1. 18th July 2008, 12:49 PM #1
    GyroLandy
    GyroLandy is offline Master
    Join Date
    May 2008
    Location
    Cherrybrook, Sydney
    Posts
    237
    Total Downloaded
    0

    Swivel seal retaining plate

    Hi,

    On my '94 Defender there are 2 metal plates per side holding the the swivel ball seal in place. (Bolts onto the swivel housing)

    It seems my Landy is one of the few which have a metal retaining plate and a metal gasket to do this job. Most other landies have only the retaining plate and a paper gasket.

    Apparently it all depends on the vehicle's axle number.

    The metal gasket and the metal plate looks exactly the same. Can anyone tell me whether they are in fact the same, this will have teh same part number.

    Further, do I still stick a paper gasket in there?

    Thx
    Reply With Quote Reply With Quote
  2. 18th July 2008, 01:16 PM #2
    PhilipA
    PhilipA is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Avoca Beach
    Posts
    14,152
    Total Downloaded
    0
    AFAIK no Land Rover has a paper gasket near the large seal in the swivel housing.
    There are two widths of seal.
    There is a paper gasket near there which fits between the swivel housing and the axle itself where the 6 or 7 bolts are. Maybe you are confusing the two positions.
    Regards Philip A
    Reply With Quote Reply With Quote
  3. 18th July 2008, 01:19 PM #3
    PhilipA
    PhilipA is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Avoca Beach
    Posts
    14,152
    Total Downloaded
    0
    PS, I do not know about defenders directly, but there seems little point in having 2 plates/gaskets etc to hold the seal.
    I think it should have 1 plate ( and no paper gaskets) and someone has got over enthusiastic.
    Regards Philip A
    Reply With Quote Reply With Quote
  4. 18th July 2008, 01:22 PM #4
    GyroLandy
    GyroLandy is offline Master
    Join Date
    May 2008
    Location
    Cherrybrook, Sydney
    Posts
    237
    Total Downloaded
    0
    Thx Phillip, the guy at teh spares shop said there is a paper gasket on other models. I know which one you are referring to is the paper gasket between the Swivel Ball and the Diff housing.

    I'm talking about the opposite side of the Swivel Ball.

    What do you mean with "two width of seals"?

    I have one big rubber seal on each side that fits over the Swivel Ball but no other rubber seals there.
    Reply With Quote Reply With Quote
  5. 18th July 2008, 01:39 PM #5
    PhilipA
    PhilipA is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Avoca Beach
    Posts
    14,152
    Total Downloaded
    0
    Look its possible that there is a paper gasket, but I have never seen one or heard of it. Most Land Rover axles/components are shared between the different models so what applies to one usually applies to all.
    This is the situation as I know it.
    Every axle has a large wiper seal on the swivel. AFAIK I have never seen a paper gasket there nor is there any reason to have one. The steel retaining plate /gasket or whatever has about 9 or ten little bolts holding it, and it holds the seal. I have never seen 2 plates, but maybe there is , but I can see no reason for it.
    The only difference that I know about between models is that there are two different swivel housings, one with a deeper channel for a wider seal, but these I think changed way back in about 1977 or so.

    So the upshot of all this is that IMHO, you will do no harm whatsoever by having one plate and no gasket , but fit an extra plate and paper gasket if you want, but it will make absolutely no difference to the function of the seal.
    Regards Philip A
    Reply With Quote Reply With Quote
  6. 18th July 2008, 02:19 PM #6
    jimbo110's Avatar
    jimbo110
    jimbo110 is offline Wizard Supporter
    Join Date
    Jan 1970
    Location
    Christchurch NZ
    Posts
    1,164
    Total Downloaded
    0

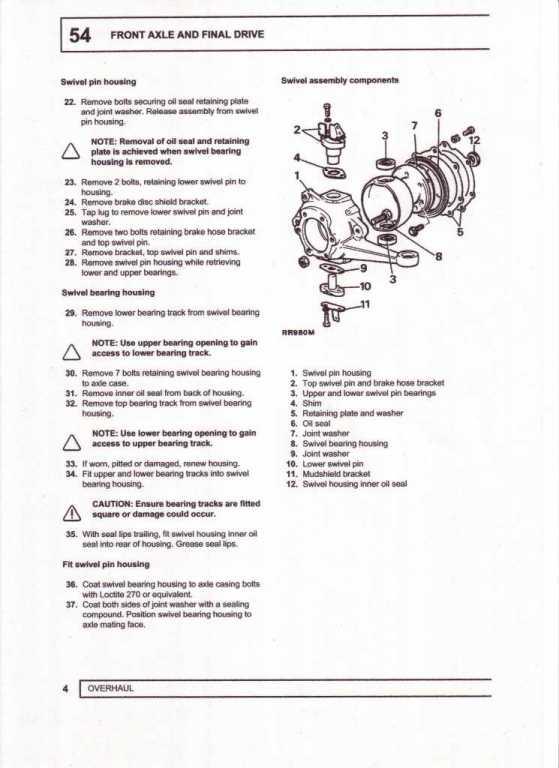

    From the 1996 Defenders manual, 2 plates, no gasket, except for swivel housing to axle tube, which you will destroy when changing the swivel seal. This will be why he wants to sell you a gasket

    1995 Defender 110 300TDI :D
    1954 86" Series 1 Automatic :eek:
    Ex '66 109" flat deck, '82 109" 3 door, '89 110 CSW V8, '74 Range Rover, '66 88" soft top, '78 88" soft top, '95 Disco ES V8, '88 Surf, '90 Surf, '84 V8 Surf, '91 Vitara.
    Reply With Quote Reply With Quote
