Thread: LT77 Rear Measurement Needed.

We have one in bits in the shed but don't quite get what you mean
Pics would be great

TIM.

Hi Dougal,

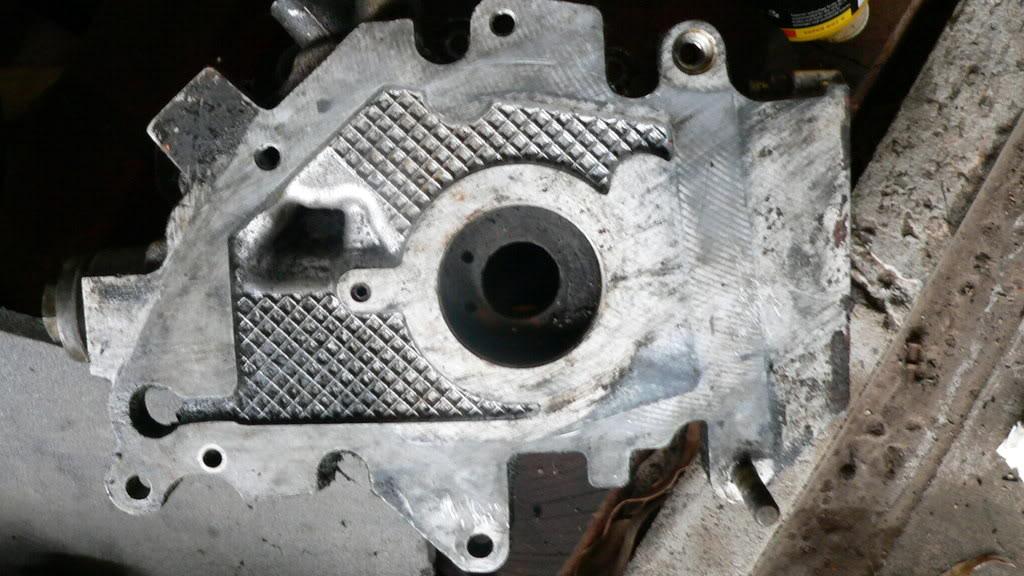

These photos might help... this is the rear of the extension housing (which faces the transfer). As you can see there's a collar which is recessed into the extension housing. The exposed portion of the collar is seated into a rubber seal on the transfer side.

Unfortunately all these bits are about 2hrs away from me but I will be reunited with them tomorrow night, so measurements can be taken then.

If this is what you're after let me know - the verniers are on hand

Matt

Originally Posted by mudmouse

Hi Dougal,

These photos might help... this is the rear of the extension housing (which faces the transfer). As you can see there's a collar which is recessed into the extension housing. The exposed portion of the collar is seated into a rubber seal on the transfer side.

Unfortunately all these bits are about 2hrs away from me but I will be reunited with them tomorrow night, so measurements can be taken then.

If this is what you're after let me know - the verniers are on hand

Matt

Hi Matt

That is exactly what I'm looking for. Throw a straight edge across the back and tell me how much gap there is (if any).
Mine is leaking between the two and I propose to make something which fills that gap and stops leaks for ever.
But in the mean time mine is still together so can't be measured.

Originally Posted by long stroke

We have one in bits in the shed but don't quite get what you mean
Pics would be great

TIM.

Hopefully Matt's pics showed you enough. If you could measure as well it would be appreciated. Lengendary landrover build quality and all that.

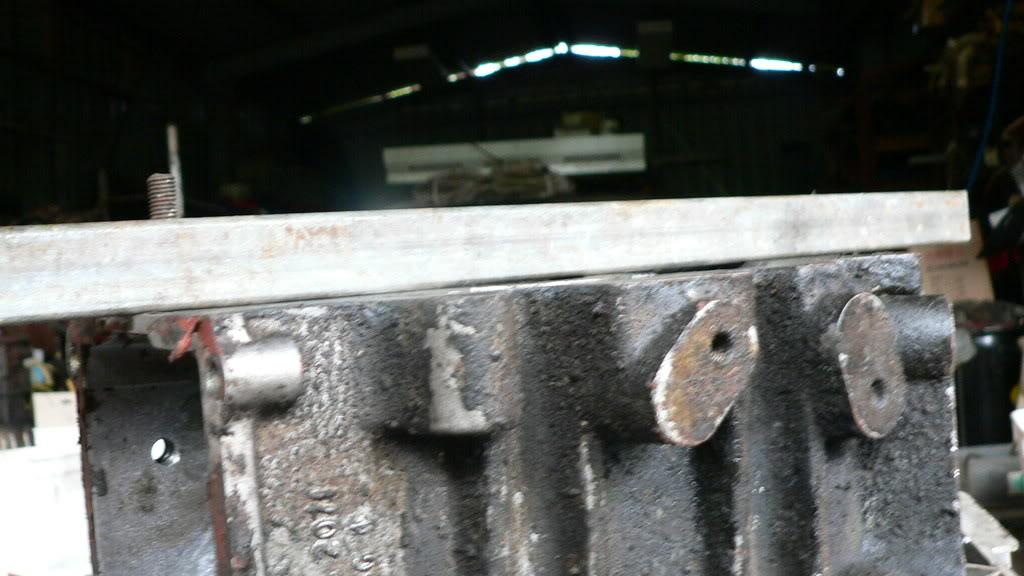

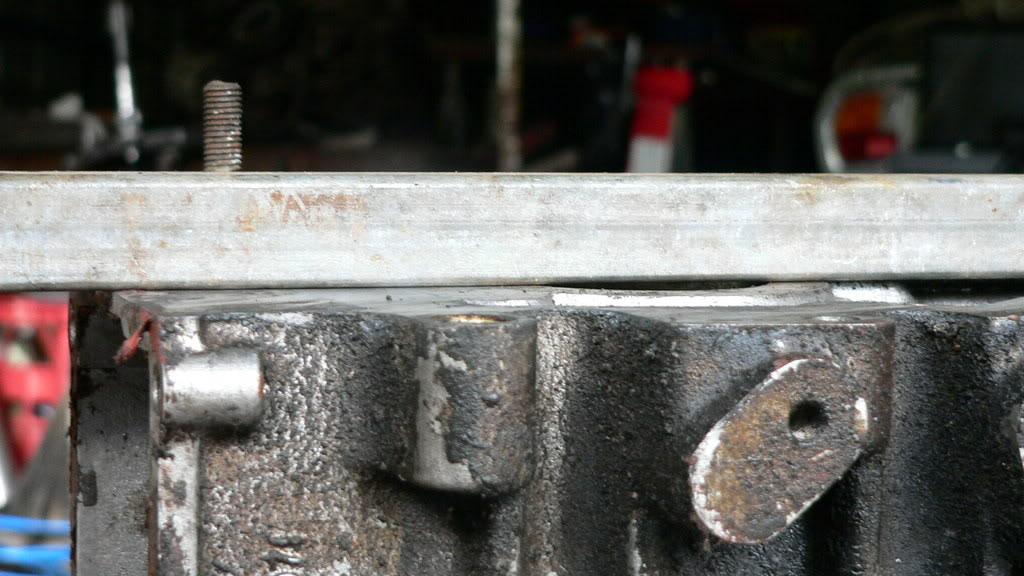

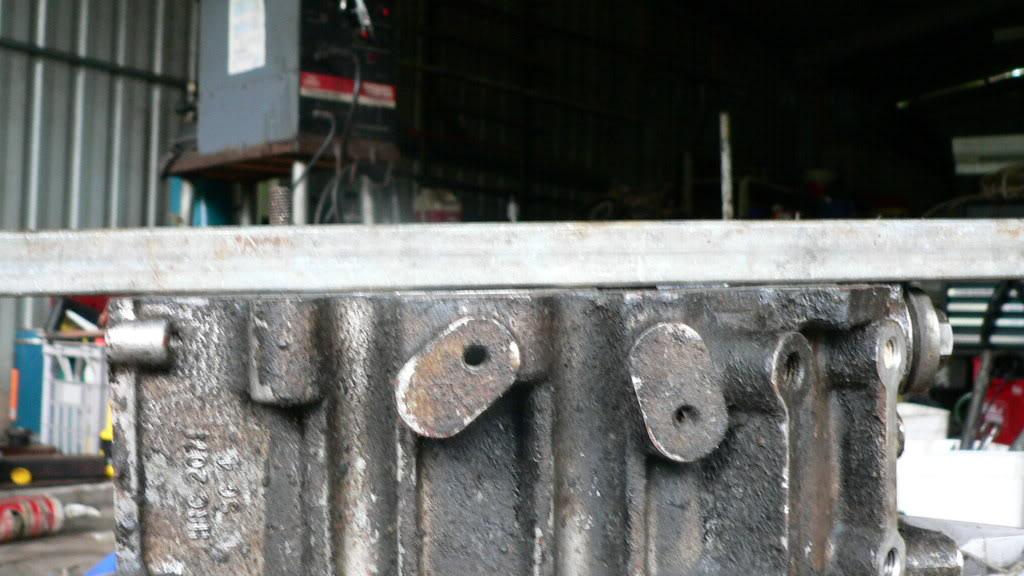

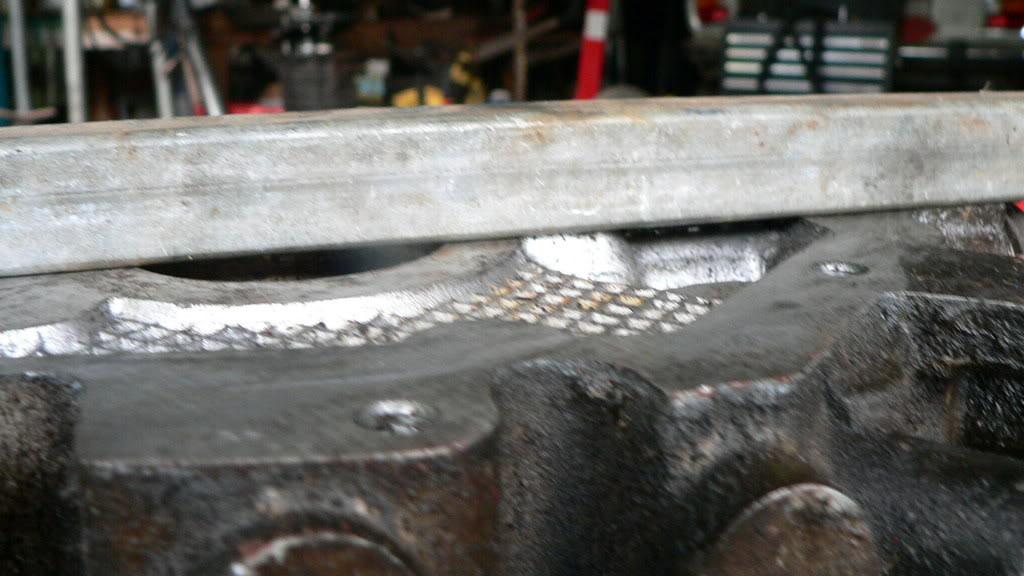

A few pics..
Hope they help.











CHEERS TIM.

Dead flat and inline then?

Much appreciated.
