    Removing sheared bolt (aka i'm screwed) (added picture)

    I'm changing a water pump (on the Benz but I know I'll get good advice here) and I've stripped a banjo bolt that holds a coolant bleed pipe to the head. In other words there is a hollow bolt, with the head sheared off flush, stuck in the front of the head.

    I decided I'd remove the head and check out the condition of the bores and replace the gasket (it was overheated) to get the sheared bolt out, but when I removed the rocker cover I was greeted by an overhead camshaft.

    I haven't got a problem doing a head gasket, but I honestly don't have the expertise to remove the camshaft assembly and then be able to successfully time it all up again on rebuild.

    Personally I think I'm ****ed, but is there any way to remove the stuck bolt? It's flush with the head face, I'll take photos when I wash up and regain my sanity.
    Reply With Quote Reply With Quote
  2. 5th March 2009, 03:10 PM #2
    Bigbjorn
    Bigbjorn is offline Swaggie Gold Subscriber
    Join Date
    Jul 2006
    Location
    Brisbane, Inner East.
    Posts
    11,178
    Total Downloaded
    0
    Can you get to it with a hand held battery drill? Ifd so, buy an appropriate sized left hand helix drill bit. You will need to go to a supplier of machine tool requisites for this. These drills run in the opposite direction to a normal twist drill, and the thrust of the cut will unscrew the broken bolt from the head. Don't use an "Ezy-out" stud extractor. Thgese are tapered and the wedging action drives them deeper into the broken bolt and often not only makes a tighter fit but they break off and you then have a broken and undrillable piece of high speed steel stuck in your broken bolt.
    URSUSMAJOR
    Reply With Quote Reply With Quote
  3. 5th March 2009, 03:15 PM #3
    rrturboD's Avatar
    rrturboD
    rrturboD is offline Master Subscriber
    Join Date
    Jan 1970
    Location
    Canberra, Australia
    Posts
    786
    Total Downloaded
    0
    Do not give up yet...
    in Canberra we have a guy Capital Thread Repair who is able to get almost any broken threaded bolt/housing etc etc apart ... you must have a similar mobile operator in Melbourne. Give a local garage a call and ask them who they get to fix broken studs etc
    Michael T
    2011 L322 Range Rover 4.4 TDV8 Vogue
    Aussie '88 RR Tdi300 (+lpg), Auto (RIP ... now body removed after A pillar, chassis extension to 130 & fire tender tray.)
    Reply With Quote Reply With Quote
  4. 5th March 2009, 03:25 PM #4
    B92 8NW
    B92 8NW is offline YarnMaster
    Join Date
    Jan 1970
    Location
    VIC
    Posts
    3,536
    Total Downloaded
    0
    Thanks Brian - yes I can access it with a cordless. I'll ring a few places to find out where I can get one.

    Thanks Michael - I'll check out the yellowpages, call my mechanic who works on the Disco.
    Reply With Quote Reply With Quote
  5. 5th March 2009, 06:25 PM #5
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,500
    Total Downloaded
    0
    I was going to suggest the easy out if its a steel bolt but its not its brass isnt it...

    grab an allen key, file the leading edge of the flats to a taper and hammer that in and then use that to unscrew the remnants.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  6. 5th March 2009, 07:28 PM #6
    Davy
    Davy is offline Master
    Join Date
    Jan 1970
    Posts
    125
    Total Downloaded
    0
    Quote Originally Posted by Blknight.aus View Post
    I was going to suggest the easy out if its a steel bolt but its not its brass isnt it...

    grab an allen key, file the leading edge of the flats to a taper and hammer that in and then use that to unscrew the remnants.

    What Blknight said, plus hit the end of the allen key with a Locktite freezer can and then give it a further tap with the hammer before trying to unscrew it.

    Davy
    Reply With Quote Reply With Quote
  7. 5th March 2009, 07:38 PM #7
    4bee's Avatar
    4bee
    4bee is offline Cynical Moi?
    Join Date
    Jan 1970
    Location
    Adelaide Hills. South Australia
    Posts
    13,349
    Total Downloaded
    0
    ......................& don't overlook the old dodge of nipping it a tad tighter before undoing. Works for me 99.999999% of the time.
    Reply With Quote Reply With Quote
  8. 5th March 2009, 07:50 PM #8
    B92 8NW
    B92 8NW is offline YarnMaster
    Join Date
    Jan 1970
    Location
    VIC
    Posts
    3,536
    Total Downloaded
    0
    I think the bolt is steel as I've just tried the allen key method and it wouldn't penetrate.

    Thanks for all the advice everyone.
    Reply With Quote Reply With Quote
  9. 5th March 2009, 07:57 PM #9
    rovercare's Avatar
    rovercare
    rovercare is offline OldBushie
    Join Date
    Jan 1970
    Location
    Yinnar South, Vic
    Posts
    9,943
    Total Downloaded
    0
    This thread sucks without pics
    Reply With Quote Reply With Quote
  10. 5th March 2009, 08:35 PM #10
    B92 8NW
    B92 8NW is offline YarnMaster
    Join Date
    Jan 1970
    Location
    VIC
    Posts
    3,536
    Total Downloaded
    0
    Quote Originally Posted by rovercare View Post
    This thread sucks without pics
    The current lighting conditions were not too conducive for pictures but these are my best efforts.

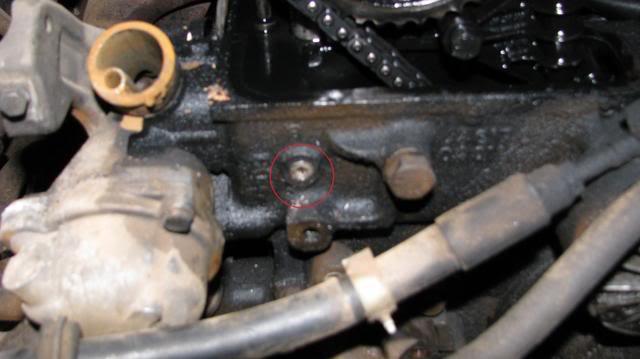

    The stuck bolt is circled.

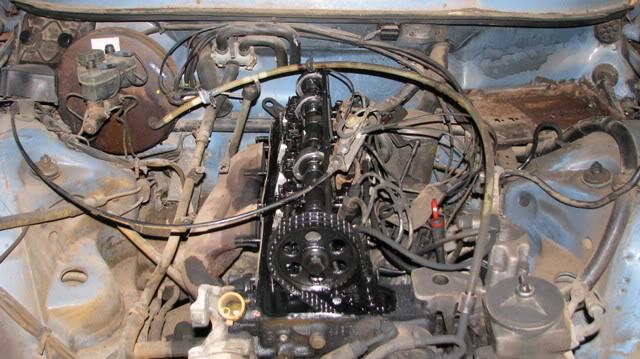

    Engine is at this point of deconstruction.
