    EGR Bypass - Half done ??

    Hi Guys,

    I fitted my EGR Bypass kit today, and while the inlet side went without a hitch I ran into minor trouble with one of the allen screws in the Exhaust manifold being burred inside. (The 5mm Hex driver just spins in side it )

    I decided today rather than battling it and ending up with an undrivable car.. I'd just do one side .. and then get teh right tools to fix the exhaust in the next few days.

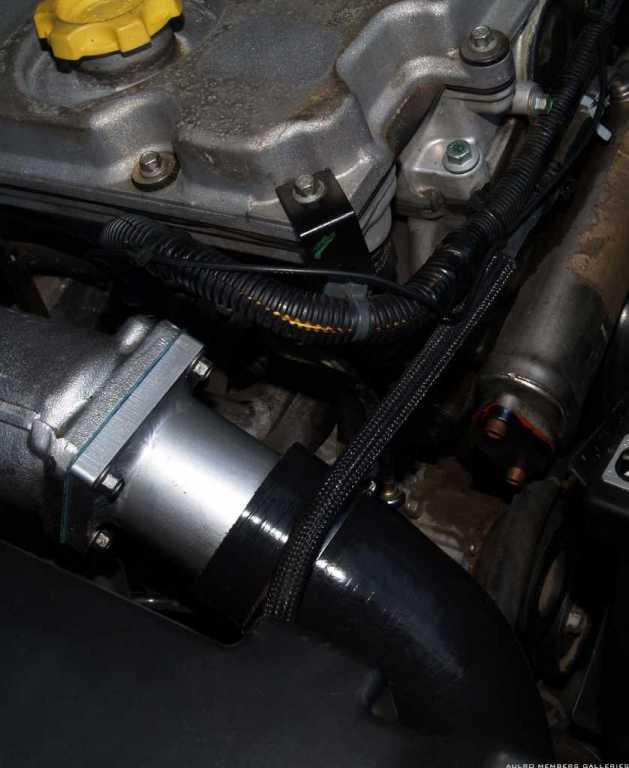

    My question to wiser heads: Am I likely to cause myself grief, by driving it in it's current state. (see pictures below)



    The inlet side is complete as above - and I ghave blanked off the exhaust there.

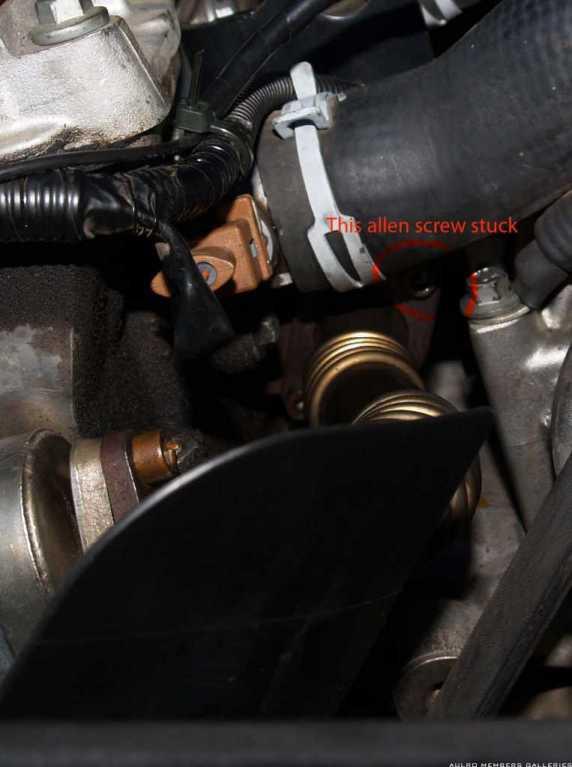

    The exhaust side is as per factory.. I put it back together as the highlighted screw will not budge and I didn't want to end up with something undrivable.

    If I am going to cause myself grief.. I'd appreciate a heads up... ratyher than learning by experience !

    The car seems to drive really well.....

    Cheers, Mark
    Mark

    Of all the things I've lost, I miss my mind the most

    2015 TDV6 D4.... the latest project... Llams, Traxide, Icom 455, Tuffant Kimberleys and Mofos.... so far.
    2012 SDV6 SE D4 with some stuff... gone...
    2003 D2a TD5...gone...
    2000 D2 V8...gone...
    https://bymark.photography

    Reply With Quote Reply With Quote
  2. 18th April 2009, 06:01 PM #2
    Blknight.aus's Avatar
    Blknight.aus
    Blknight.aus is offline RoverLord Vendor
    Join Date
    Aug 2006
    Location
    Melbourn(ish)
    Posts
    26,499
    Total Downloaded
    0
    3 options.

    1. hammer in the next size up imperial fitting then undo with a ratchet
    2. off set the splines on the next size up torqz fitting and hammer that in and then undo with a ratchet
    3. use a stud puller once you make the room by pulling off other fruit.

    so long as you have the exhaust fitting blanked at some point and the inlet complete your laughing for a little while at any rate.
    Dave

    "In a Landrover the other vehicle is your crumple zone."

    For spelling call Rogets, for mechanicing call me.

    Fozzy, 2.25D SIII Ex DCA Ute
    Tdi autoManual d1 (gave it to the Mupion)
    Archaeoptersix 1990 6x6 dual cab(This things staying)


    If you've benefited from one or more of my posts please remember, your taxes paid for my skill sets, I'm just trying to make sure you get your monies worth.
    If you think you're in front on the deal, pay it forwards.
    Reply With Quote Reply With Quote
  3. 18th April 2009, 06:31 PM #3
    sashadidi's Avatar
    sashadidi
    sashadidi is offline YarnMaster Supporter
    Join Date
    Mar 2008
    Location
    Київ
    Posts
    3,044
    Total Downloaded
    0
    cant help re problem but here was a good guide to finishing it all
    TD5 EGR removal, IRB Devloments kit - LR4x4 - The Land Rover Forum or
    Td5 EGR Removal (AGAIN) - Land Rover UK Forums
    Reply With Quote Reply With Quote
  4. 18th April 2009, 07:23 PM #4
    Bytemrk's Avatar
    Bytemrk
    Bytemrk is offline ForumSage Silver Subscriber
    Join Date
    Oct 2003
    Location
    Montrose, Vic.
    Posts
    5,417
    Total Downloaded
    0
    Quote Originally Posted by sashadidi View Post
    cant help re problem but here was a good guide to finishing it all
    TD5 EGR removal, IRB Devloments kit - LR4x4 - The Land Rover Forum or
    Td5 EGR Removal (AGAIN) - Land Rover UK Forums
    Thanks Sashadidi,

    Pretty easy job really - did the first part in under an hour - and half of the exhaust side ( then had to put it back ).

    I only got stopped by this bolt - I didn't have something suitable with me to budge it - I'll get it sorted in the next few day.
