    Help needed please.

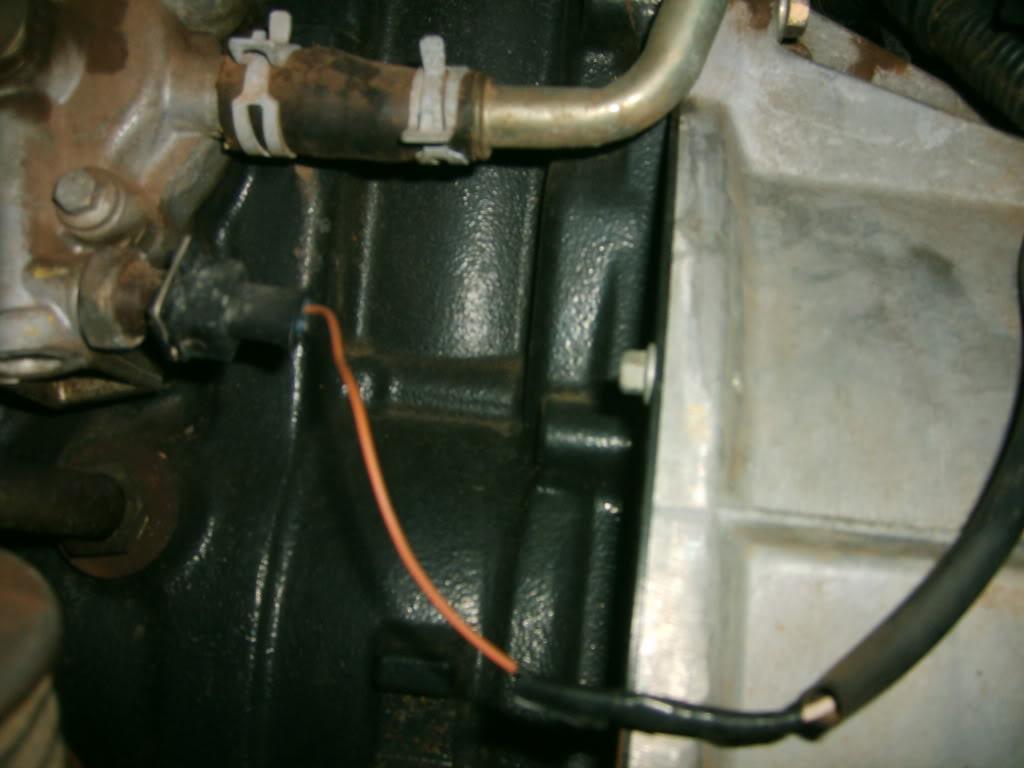

    While poking around the engine bay on my td5 130 deefer. I came across this sensor. It is located below the turbo on the left handside of the motor. It looks like it has been played with by the previous owner. The blue wire has been cut. What is this sensor for and should it be replaced. Thanks in adance


    Last edited by Dave1; 10th September 2009 at 06:34 AM. Reason: photos not showing
    Reply With Quote Reply With Quote
  2. 10th September 2009, 06:35 AM #2
    Dave1's Avatar
    Dave1
    Dave1 is offline Master
    Join Date
    Jul 2008
    Posts
    100
    Total Downloaded
    0
    Had a problem with the photos I hope all is good now.
    Reply With Quote Reply With Quote
  3. 10th September 2009, 06:52 AM #3
    justinc's Avatar
    justinc
    justinc is offline Swaggie Vendor
    Join Date
    Aug 2006
    Location
    Kingston, Tassie, OZ.
    Posts
    13,728
    Total Downloaded
    0
    Dave,

    That is the oil pressure warning lamp switch, it only has one wire, there is actually 2 in the plug originally, but if you disconnect the plug and look in to the switch, there is only 1 terminal
    The wire that has been removed is redundant.

    JC
    The Isuzu 110. Solid and as dependable as a rock, coming soon with auto box😊
    The Range Rover L322 4.4.TTDV8 ....probably won't bother with the remap..😈
    Reply With Quote Reply With Quote
  4. 10th September 2009, 07:01 AM #4
    Dave1's Avatar
    Dave1
    Dave1 is offline Master
    Join Date
    Jul 2008
    Posts
    100
    Total Downloaded
    0
    Thanks JC

    One less item to be concerned about.

    Dave
    Reply With Quote Reply With Quote
  5. 10th September 2009, 12:11 PM #5
    johnclv Guest
    Yep

    All you need to be worried about now is the part called a TD5

    when you have that one sorted you have to worry about the other part - Landrover

    Reply With Quote Reply With Quote
