Thread: D3, D4 & RRS new TRIPLE BATTERY Kits

  1. #1
    Join Date
    Jan 1970
    Location
    Queensland
    Posts
    6,789

    D3, D4 & RRS new TRIPLE BATTERY Kits

    I now have three new TRIPLE BATTERY Kits for a D3, D4 and RRS, with all the batteries mounted under the bonnet.

    These kits effectively give you 135Ah of usable accessories power, or the equivalent of having a 170Ah auxiliary battery mounted in the rear of your D3, D4 or RRS.

    All my D3, D4 and RRS kits have now been upgraded and are now easier to fit but actually do more to not only protect your cranking battery but the kits designed to supply accessories power to the rear socket, now come supplied with my new 30 amp Low Voltage Cut-Out unit, the ABG-25, which gives protection to prevent over discharging of your auxiliary battery(s).

    Like all my D3, D4 and RRS kits, all you need to fit these new kits, are your auxiliary batteries and some basic handyman tool and a Saturday afternoon.

    The three new TRIPLE BATTERY Kits are based around my high current USI-160 isolator and my own designed Stainless Steel Battery Tray and the kits are :-

    D3-TB1 = $600 ( as of 07/2019 ), the standard TRIPLE BATTERY Kit engine bay kit

    D3-TB2 = $765 ( as of 07/2019 ), the standard TRIPLE BATTERY Kit + Rear Power Socket Kit including the ABG-25

    D3-TB5 = $875 ( as of 07/2019 ), the Full Power Cable kit, which includes the TRIPLE BATTERY Kit standard kit + Rear Power Socket Kit including the ABG-25 + cabling to the rear to power a camper trailer or caravan.

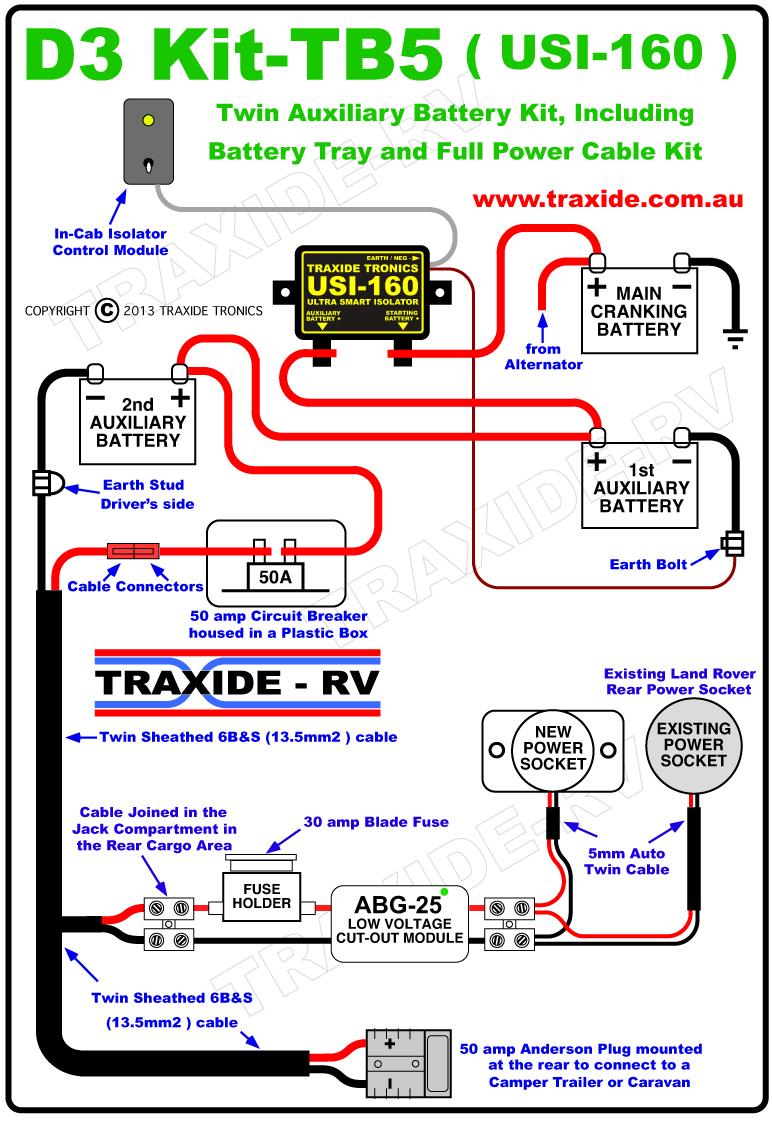

    Here is a picture of the engine bay part of the new TRIPLE BATTERY Kits and a wiring diagram of the D3-TB5 kit.




  2. #2
    Join Date
    Oct 2013
    Location
    Western Australia
    Posts
    15

    Petrol D3

    Great kit. If you have a petrol D3 though you will have to make a bracket to move the brake booster vacuum pump, not to hard.

    After:
    http://www.aulro.com/afvb/attachment...r-dsc_1051.jpg
    Attached Images Attached Images

  3. #3
    Join Date
    Apr 2010
    Location
    Hunter Valley
    Posts
    173
    Just wondering if you already have the dual system in the D4, would you be able to only fit what you need to turn it into the triple system?

    Scott

  4. #4
    Join Date
    Jan 1970
    Location
    Queensland
    Posts
    6,789

  5. #5
    Join Date
    Mar 2016
    Location
    Adelaide
    Posts
    1,105
    Wow a 5 year old thread!

    Hi Tim

    Whats involved in fitting a triple kit to a stock 2013 TDV6? I have a usi-160 from another car that I can reuse and Iím quite electrically literate.
    "Land Rover - making mechanics out of everyday motorists for nearly 70 years"

  6. #6
    Join Date
    Jan 1970
    Location
    St Helena,Melbourne
    Posts
    13,106
    Quote Originally Posted by John_D2 View Post
    Wow a 5 year old thread!

    Hi Tim

    Whats involved in fitting a triple kit to a stock 2013 TDV6? I have a usi-160 from another car that I can reuse and Iím quite electrically literate.
    Essentially you just need to link the 2 aux batteries as per the diagram Tim posted, the rest is up to how you want it setup.
    MY08 TDV6 SE D3- permagrin ooh yeah !
    98 TDI AUTO SE DISCO - gone and will be missed.
    2003 Dingo offroad camper trailer
    1998 Triumph Daytona T595
    1974 VW Kombi bus
    1958 Holden FC special sedan

  7. #7
    Join Date
    Jan 1970
    Location
    Queensland
    Posts
    6,789
    Quote Originally Posted by John_D2 View Post
    Whats involved in fitting a triple kit to a stock 2013 TDV6? I have a usi-160 from another car that I can reuse and Iím quite electrically literate.
    Hi John, as Loanranger posted, just follow the diagram above.
