Hello Everyone

My name is Patrick and I am part of the team here at GAP Diagnostic. Some of you might already know us and our products but since it is my first post here, I will do a brief description. We provide diagnostic solutions for Land Rover enthusiasts and professionals alike. We basically have two product categories, the EASControl, which is a lowering and raising tool with basic suspension diagnostic capabilities and the IIDTool, a complete diagnostic system (Note: all EASControl functionalities are included in the IIDTool).

We offer three versions of the IIDTool (Integrated Interface Diagnostic Tool). The regular IIDTool, the IIDTool BT and Pro. The regular IIDTool uses the cruise control buttons and instrument cluster screen to interact with the user (integrated interface) while the BT and Pro are used in conjunction with a mobile device (App). More details on each interface, vehicle coverage and more can be found on the IIDTool webpage:

https://www.gap-diagnostic.com/products/iidtool/

And the user manual:

https://www.gap-diagnostic.com/suppo...ments/IIDTool/

A few weeks ago, we've released a new App, version 2.9, for Apple devices and also released a new special firmware available for beta testers only at the current time. Here's a resume of the new additions when using both the new App and firmware or using the new App only with an older firmware.

Top Bar (new and old firmwares): A new bar was added which shows the current connection and ignition status as well as battery voltage.

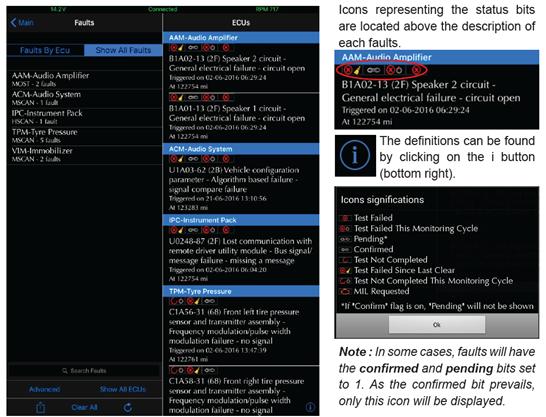

Faults function (new and old firmwares): Advanced Read
-Status bit flags default selection can be saved for future use
-Status bit flags are visible as icons on top of fault descriptors
-Status bits can be included in the exported emails

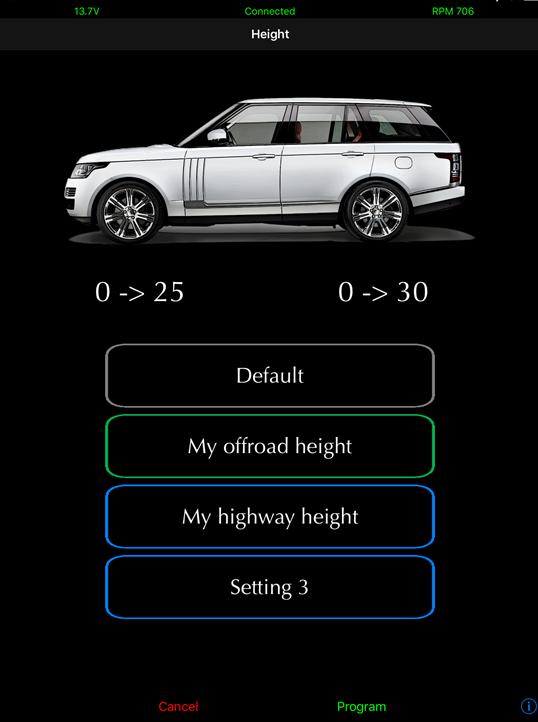

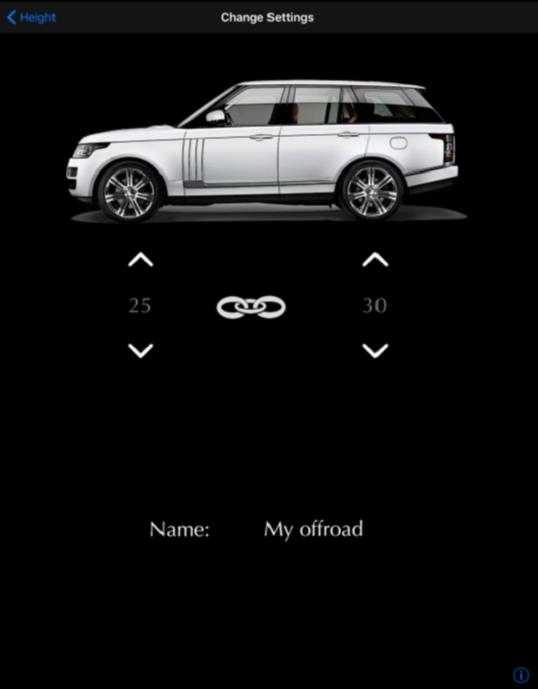

Height Adjust (new firmware only): A new and more intuitive screen to adjust your suspension height with default and saved settings. Contrary to our previous method, height changes are relative to the default height and not the current standard height.

0 -> 25: current height, 0 mm, or default in this example is shown on the left while the selected height setting (My offroad height in this example) is shown right, + 25 mm



20 -> -10: current height, +20 mm relative to the normal height (0 mm), shown on the left while the selected height setting (Motorway in this example) is shown right, -10 mm relative to the normal height (0 mm).

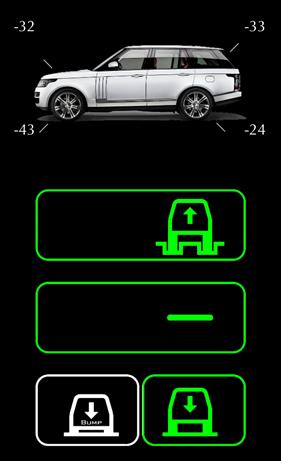

Height Control (new firmware only): This function allows you to remotely control your current height (Access, Normal, Offroad) and lower both axles to the bumpstops.



Suspension Calibration (new firmware only):
-New manual calibration layout
-New guided calibration function. This unique method eliminates the need for calculations, even ground and requires only one iteration. The whole process takes 5 minutes.

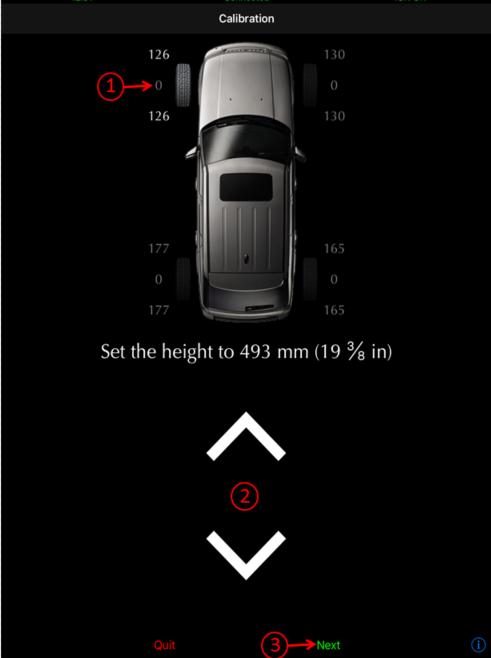

Guided calibration instructions:
-The first corner to be calibrated is the front left corner (1).
-Place your measuring tape as instructed and use the up and down arrows (2) to reach the required height (3).
-Once completed, click on Send (4). The next corner to be calibrated will now be high-lighted.
-Repeat the previous steps for all corners.

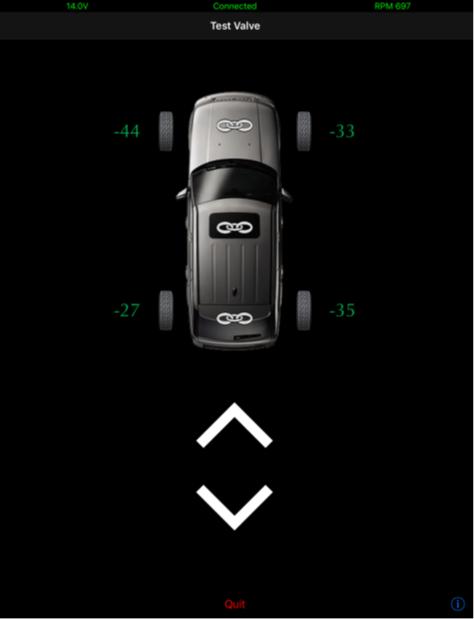

New Suspension Test Valve function layout (new firmware only)



Live values:
-All live values (PIDs) are now available for all supported vehicles (L322: except for older BMW type ECUs, new firmware only)
-Trigger function which allows custom audible or vibration alarm and automatic start/stop logging of live values. (new and old firmwares, already on Android)

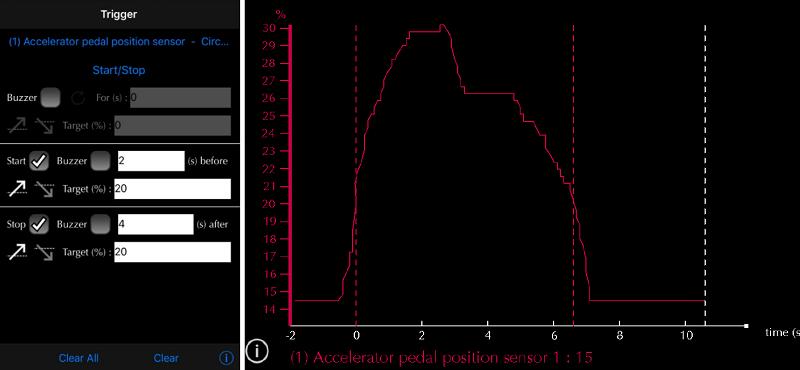

Trigger example:
-The live value increases and passes the Start target of 20 % (first red dotted line)
-Recording begins and the previous data is kept (2 seconds, as set)
-The Stop condition is met at around 6.5 seconds, hence the trigger indicator (red dotted lines)
-Recording continues for 4 seconds as set
-Enabling the Buzzer will generate a sound when the condition is met. Perfect when monitoring live data. Can be used without using the automatic recordings feature.

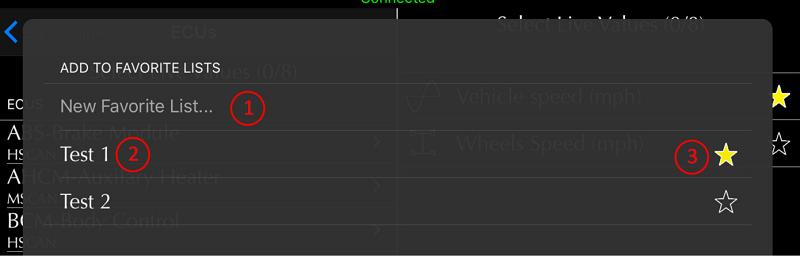

-Favourite Fast Add feature which allows adding live values to favourite list quicker. (new and old firmwares)



Click on the star when viewing an ECU live values



1- Click here to create a new list
2- Current favourite lists are shown here
3- Click on the star to add the live value to this favourite list


-Layout improvements (new and old firmwares)

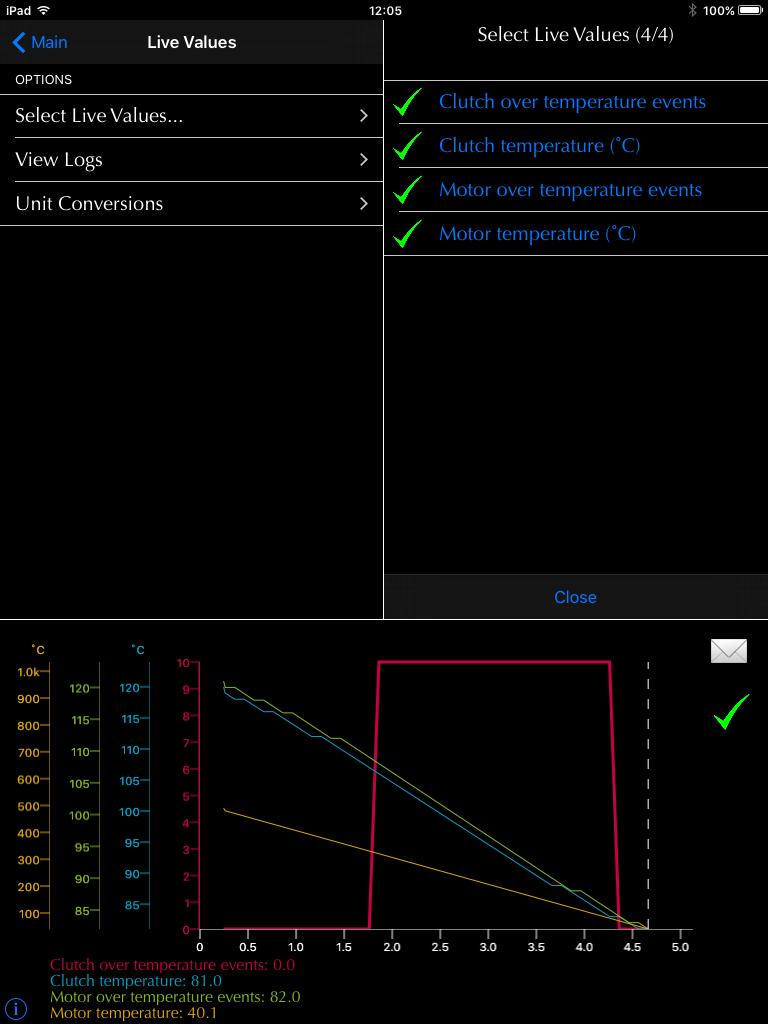

-Selection of which live values to be exported and viewed (logs). (new and old firmwares)



Car Configuration File (new and old firmwares):

-Complete CCF list can be edited upon request.
-Favourite Fast Add feature which allows adding configurations to favourite lists quicker.

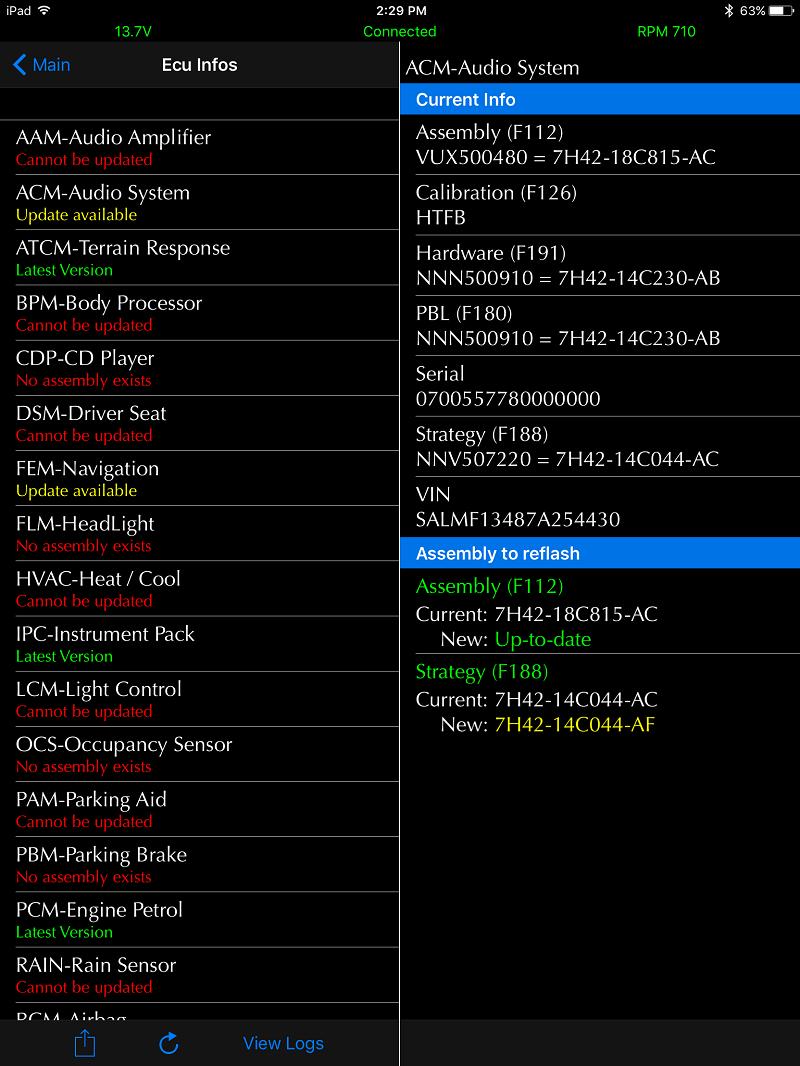

ECU Info (new firmware only): This new layout is the basis for what will be the next step reflashing wise. It now shows which ECUs are up to date and those for which a newer version is available. If you are testing this function, please send us the results using the send e-mail button for our records. This will help us validate the automatic file selection algorithm.



An historic of each ECU Info scan is saved and can be recalled.

Tool Activation (new and old firmwares): Initial activation of the IIDTool can all be done within the App when the mobile device is connected to the internet. Additional licences can also be entered in the App.

New French version (except for live values and car config, new firmware only)

Documentation: The user manual was completely overhauled and is now available in English (second from top) and French:

https://www.gap-diagnostic.com/suppo...ments/IIDTool/

Jaguar support: It is now possible, upon request, to use the IIDTool BT or Pro on 2008 and up Jaguars.

Work on the Android App is still under way. If you are using Android devices only, please do not update to the special firmware 2439 or 3643 and up since the firmware is not backward compatible with earlier App versions. You can, however, revert to the latest beta if Android usage is required after using it on an Apple device.

Our current beta testers using Apple devices can benefit from these new additions by updating the App to V2.9 and IIDTool firmware to:

BT:
-Special Build 2439 (English, French upon request)

Pro:
-Special Build 3643 (English, French upon request)

We strongly recommend updating your mobile device operating system (iOS) to the latest version prior to using the new App and firmware.

As usual, feedback is more than welcome! For those who are not currently beta testers and want to test the new App and firmware simply send us an e-mail or a PM.

Of course, feel free to PM or send an email if you have any questions or need help with our products.

Cheers

I'll have to check my iPad version to ensure its upto date. Thanks for the update
