Thread: Converting camper trailer hubs to D3 hubs?

Commodore stud pattern is the same as D3 (120mm PCD) but has a smaller centre bore. You can get adapter rings to fix that and there a a few places that can supply the right studs (14x1.5 from memory). The issues you will have are that the large offset that the D3 rims have and the rim fouling suspension components and the 18" diameter rim requires a strong hub/axle assembly due to the extra transverse load verses a 15 or 16" rim.
There have been a few threads on this previously so have a search and you should find a lot of useful information.

You can't put D3 alloys on the standard trailer hubs, you can only fit steel rims or D2/P38a alloys.

The steel rims with go on the car but D2 and P38a alloys won't.

To fit D2/P38a alloys you will need to take 5mm off the ends of the D2 wheel nuts, but as they won't fit the car there's no point really.

You can buy steel rims for D3s, Dynamic do them, as do Performance Wheels, at least if you need to they will fit the car if you need to use the trailer spare, unfortunately you won't be able to fit the D3 alloys to the trailer, unless you can get the trailer hubs modified to suit.

There is only one person I know of that has managed this, I just can't remember who.

Baz.

Thanks Baz and rufusking. Your advise has probably saved me a lot of trouble.

Mike

Search for a post by Peter who put d3 rims on a boat trailer.

Cheers Ean

Found the post;

http://www.aulro.com/afvb/trailers-v...t-trailer.html

Baz.

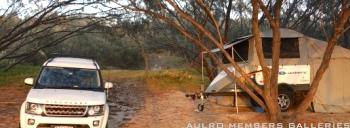

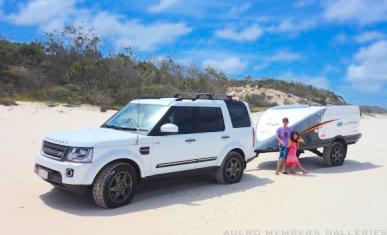

Reviving this thread because I came across this setup (see photos) on MySwag recently.
It very much looks like an Ultimate Xplor with the GOE Compomotive rims matching the D4.




I think the owner is IANDONMAC on here and DON MAC on MySwag but he's not very active on here.
I have copied the photos to my gallery just for reference, so I hope Ian won't be upset.

Anyway, I'd formed the impression that getting trailer hubs to suit D3/D4 rims was problematic but perhaps not so bad after all. Maybe Ultimate Campers modified the hubs in their factory.

Common wheels is something I'd like to specify when we eventually replace our camper trailer.
Does anyone else have a similar setup?

Regards,
Scott

It appears that the Ultimate Xplor is very light. If it only takes light trailer hubs then Commodore pattern would do the trick.

Hmm, not so light as to not require brakes though.

I've had thoughts on using a factory D3/4 front bearing. Wouldn't be too hard to have a plate cut and welded to existing axles and bolt the hub/bearing assembly onto it. Could also use a stock front brake disc and possibly a stock calliper with electric/hydraulic brakes? My only concern at this point is it would put the hub flange further outwards away from the spring tower in order to get the correct track width.
