Thread: Fitting Air bags, Defender

  1. 26th March 2008, 09:23 AM #1
    MW.TD5 Defender's Avatar
    MW.TD5 Defender
    MW.TD5 Defender is offline Fossicker
    Join Date
    Oct 2006
    Location
    Eltham North
    Posts
    99
    Total Downloaded
    0

    Exclamation Fitting Air bags, Defender

    Hi guys,
    My spring air bags have just arrived from the USA and I have a couple of questions regarding fitting them.
    I know I will need to weld plates on the top of the spring turrets, but do these plates need to be counter sunk into the turret or can I just weld a plate to the top?
    What thickness plate would best suit the job?
    Does anybody have photos of installation to make things easier?

    Thanks in advance

    Mal
    Reply With Quote Reply With Quote
  2. 26th March 2008, 08:33 PM #2
    isuzu110's Avatar
    isuzu110
    isuzu110 is offline Master Supporter
    Join Date
    Jan 1970
    Location
    Camp Hill Queensland
    Posts
    775
    Total Downloaded
    0
    Not familiar with the brand of bag you have purchased but...

    For my polyairs, the top plate is about 4mm thick and bolted to the top of the rear turret with a bolt in each of the 4 corners. Not welded.
    '95 110 300TDI, F&R ARB Lockers, Twine Shower, Aux Sill Tank, Snorkel, Cargo barrier, 9 seats, swingaway wheel carrier, MadMan EMS2
    '85 110 Isuzu NA 4BE1 3.6l Diesel, 0.996 LT-95, Rear Maxi (SOLD)
    '76 SIII 109" Nissan ED33 5-SP Nissan GBox (SOLD)
    Reply With Quote Reply With Quote
  3. 26th March 2008, 08:40 PM #3
    Bush65
    Bush65 is offline YarnMaster
    Join Date
    Jan 1970
    Location
    'The Creek' Captain Creek, QLD
    Posts
    3,724
    Total Downloaded
    0
    Sorry don't have experience with defender air bags.

    On my disco, I didn't have to weld any plates on the spring perches. A thick moulded rubber piece fitted up from underneath.
    Reply With Quote Reply With Quote
  4. 26th March 2008, 09:28 PM #4
    isuzu110's Avatar
    isuzu110
    isuzu110 is offline Master Supporter
    Join Date
    Jan 1970
    Location
    Camp Hill Queensland
    Posts
    775
    Total Downloaded
    0

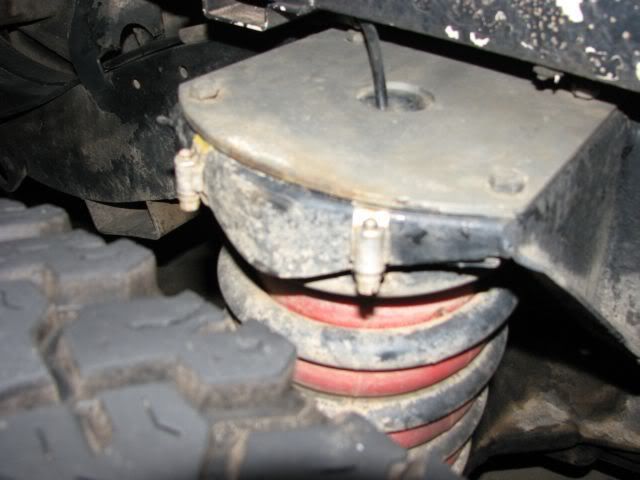

    Ok, you asked for pix...




    with hose clamps retaining the top of the springs
    '95 110 300TDI, F&R ARB Lockers, Twine Shower, Aux Sill Tank, Snorkel, Cargo barrier, 9 seats, swingaway wheel carrier, MadMan EMS2
    '85 110 Isuzu NA 4BE1 3.6l Diesel, 0.996 LT-95, Rear Maxi (SOLD)
    '76 SIII 109" Nissan ED33 5-SP Nissan GBox (SOLD)
    Reply With Quote Reply With Quote
  5. 27th March 2008, 08:00 AM #5
    MW.TD5 Defender's Avatar
    MW.TD5 Defender
    MW.TD5 Defender is offline Fossicker
    Join Date
    Oct 2006
    Location
    Eltham North
    Posts
    99
    Total Downloaded
    0
    Thank's guys,

    Isuzu110. Can you see any problems with welding the plates to the top of the turrets other than the inability to remove them.
    Did you have problems with your springs dislodging thus the clamps or is it just a precautionary move

    Mal
    Reply With Quote Reply With Quote
  6. 27th March 2008, 11:29 AM #6
    isuzu110's Avatar
    isuzu110
    isuzu110 is offline Master Supporter
    Join Date
    Jan 1970
    Location
    Camp Hill Queensland
    Posts
    775
    Total Downloaded
    0
    I'm no expert but I thought we tried to avoid welding chassis/suspension components. I'm sure someone else will chime in who knows more.

    I have had previous issues on my County with rear springs dislocating from the top and puncturing the sidewall of the tyre. The tyre pattern was no longer made so it was an expensive incident to then have to replace a full set of mud tyres. Hence the cheap and nasty precaution of twin hose clamps to try and stop it happening again on this vehicle.
    '95 110 300TDI, F&R ARB Lockers, Twine Shower, Aux Sill Tank, Snorkel, Cargo barrier, 9 seats, swingaway wheel carrier, MadMan EMS2
    '85 110 Isuzu NA 4BE1 3.6l Diesel, 0.996 LT-95, Rear Maxi (SOLD)
    '76 SIII 109" Nissan ED33 5-SP Nissan GBox (SOLD)
    Reply With Quote Reply With Quote
