Thread: fitting an overdrive

Where are you guys getting your winch drive from?
I cant see one of those bottom chain drive hens teeth in the pics.

The winch drive is a unique set up for a 101 landrover.
The 101s winch is mounted on the LHS chassis rail.
It is driven from the bottom of the transfercase via bevel gear set.

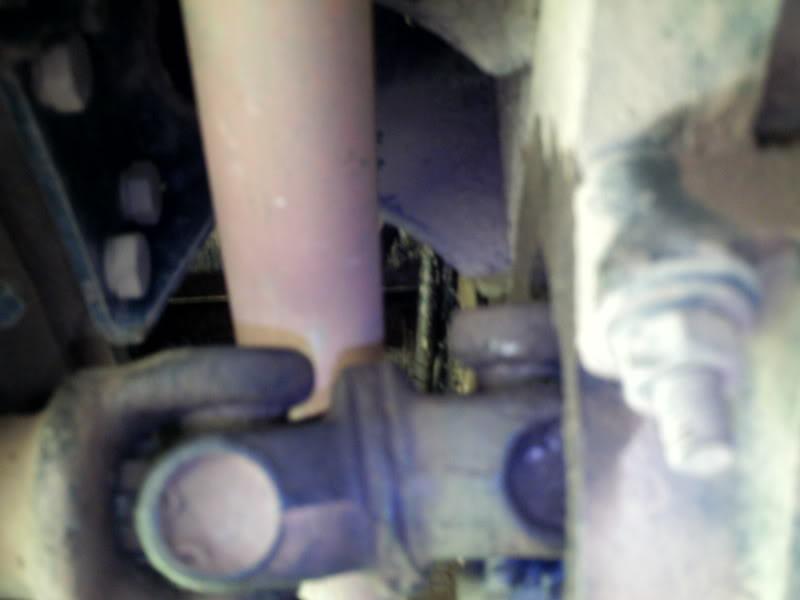

A short double uni joint takes the drive to the winch.
The overload clutch is built in the winch itself.
This system will not fit or work on any other landrover and is totally different to the army perentie landrovers, as the the winch is unusual too.
The 101 winch is one of the best around and very fast too.

Originally Posted by 123rover50

I cant see one of those bottom chain drive hens teeth in the pics.

The 101 pto is gear driven and goes out the side of the bottom of the tfr case.

A normal LT95 pto is chain driven and goes out the front of the bottom of the tfr case.

Garry

Thanks for the photos of the transfer case cable adapter, cool should get cables this week and will get yours back to you. Just quick one ... Engine oil in transfer case not gearbox oil ? Is that right or Am I mad ... Getting some levers made

Originally Posted by iain reed

Engine oil in transfer case not gearbox oil ? Is that right or Am I mad

Engine oil (20w40, 20w50) in the engine, gearbox and transfer case/overdrive.

You are correct but still a bit mad.

Garry

Originally Posted by garrycol

The 101 pto is gear driven and goes out the side of the bottom of the tfr case.

A normal LT95 pto is chain driven and goes out the front of the bottom of the tfr case.

Garry

I learn something every day. I have the chain driven one on the 6x6 driving a hydraulic pump for the winch.
I would like something for my 2B. Are these 101 PTO,s available or just as scarce as the chain drive ones?

Originally Posted by 123rover50

I would like something for my 2B. Are these 101 PTO,s available or just as scarce as the chain drive ones?

Of course the LT95 PTOs will not fit a series tfr case unless the 2B has been changed to a LT95. The point at the top of the tfr case where the overdrive goes in can still be used as a PTO for a rear drive (I guess like your 6x6 has). In the 101 this was the drive takeoff point for the powered trailer.

I guess the 101 bottom PTOs are exceptionally scarce, probably more so than the chain drive ones. In Aust there would have only been enough to service the 50 units on Aust 101s. On overseas 101s the winch was only fitted to a minority of 101s so they are rare overseas. I know that some were brought into Aust by an importer but I believe they were snapped up pretty quickly.

Garry

Originally Posted by garrycol

Of course the LT95 PTOs will not fit a series tfr case unless the 2B has been changed to a LT95. The point at the top of the tfr case where the overdrive goes in can still be used as a PTO for a rear drive (I guess like your 6x6 has). In the 101 this was the drive takeoff point for the powered trailer.

I guess the 101 bottom PTOs are exceptionally scarce, probably more so than the chain drive ones. In Aust there would have only been enough to service the 50 units on Aust 101s. On overseas 101s the winch was only fitted to a minority of 101s so they are rare overseas. I know that some were brought into Aust by an importer but I believe they were snapped up pretty quickly.

Garry

Sorry should have said my 2B has a 4BD1 and LT95.
Thanks for the info on the PTO.
