Thread: riddle me this 130 sals

Originally Posted by Vern

You can get wide bearing and narrow bearing stubbs and spindles. Remove the caliper and stub to check.

is not the inner bearing on eather hub in the same place?

From memory the narrow spacing one has an extended raised area that puts the inner bearing outboard a bit. I may have posted up a photo in the the County disc brake conversion thread a couple of months back.

Steve

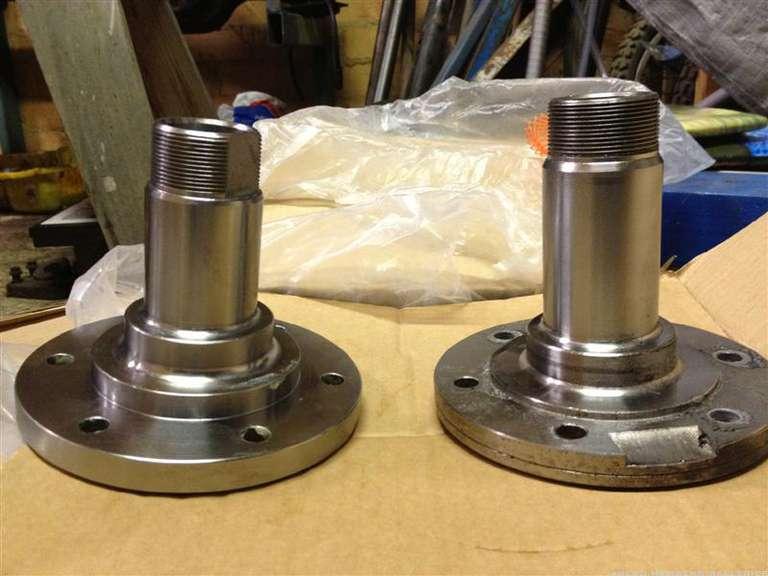

Here's a piccy:

Defender stub on the left, early County on the right.


If you've got different stubs the caliper or disc may have been messed around with to make everything work too.

Edit: Just noticed the drive flanges seem to be different on each side, which would go along with different hubs/stubs etc.

Steve

Worn rear "A" arm bushes?
Are the rims the same part numbers?As 130 rims are different to 110 rims!!

Providing the pictures show measurements from the same point on both sides,then the mounting flange for the wheel is at approx. 167mm on both sides from the inner reference point,so therefore the only variable can be the rims,or the inner reference point

pretty much not unusual.

have a few like that where human error chassis jigging/ welding comes into play.

measure the centre line of the ball joint, i have seen this before and it does seem that some leave the factory with poor alignment, destined to wear tyres unevenly and track poorly. lift or no lift the rear end won't suffer unless the ball joint alignment ie upper a frame bracketry is jigged correctly.

jc

Originally Posted by steveG

Here's a piccy:

Defender stub on the left, early County on the right.


If you've got different stubs the caliper or disc may have been messed around with to make everything work too.

Edit: Just noticed the drive flanges seem to be different on each side, which would go along with different hubs/stubs etc.

Steve

thank for the picks. i have only mucked about with my county ones untill now. looks like the correct amout of OUT as well. tuesday i will strip it down a bit more. narrow hub on a wide stud ??

Originally Posted by justinc

pretty much not unusual.

have a few like that where human error chassis jigging/ welding comes into play.

measure the centre line of the ball joint, i have seen this before and it does seem that some leave the factory with poor alignment, destined to wear tyres unevenly and track poorly. lift or no lift the rear end won't suffer unless the ball joint alignment ie upper a frame bracketry is jigged correctly.

jc

yes done all that, ball center to flange, ball center to chassis. first things i did
