Thread: Chinese diff locks

  1. 4th October 2013, 06:17 AM #81
    Sitec's Avatar
    Sitec
    Sitec is offline YarnMaster Subscriber
    Join Date
    Dec 2009
    Location
    Williamstown, Barossa, SA
    Posts
    3,451
    Total Downloaded
    0
    Quote Originally Posted by isuzurover View Post
    Yes the P38 type diff is so names because it first appeared in the P38A RR.

    As for banjo (rover and P38) vs salisbury, There are 2 main differences:

    The rover and P38A diffs have an 8.25" crownwheel, the salisbury 9.75"

    http://www.lrfaq.org/Series/images/R...sburyDiff2.jpg

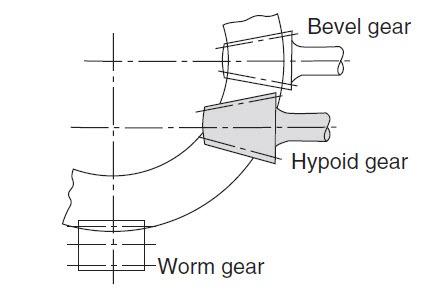

    The sals is hypoid, the rover is spiral bevel. Hypoid diffs are stronger (going forwards) as they have much more tooth contact between pinion and crownwheel for the same geometry and ratio.

    http://lh5.ggpht.com/_EhOQGW2GHBg/TM...jpg?imgmax=800

    In short, the sals diff centre is probably about 4x the strength of a rover or P38A
    Ok, I may now have a daft question... You say the Salisbury/Hypoid is 'stronger going forward'.. What's it like in reverse... (Ie:- The front diff in my 101)? Great pic comparison too! Cheers.
    1995 Mercedes 1222A 4x4
    1969 (Now know! Thanks Diana!!) Ser 2 Tdi SWB

    1991 VW Citi Golf Cti (soon to be Tdi)

    'When there's smoke, there's plenty of poke!!'
    'The more the smoke, the more the poke!!'
    Reply With Quote Reply With Quote
  2. 4th October 2013, 07:18 AM #82
    Slunnie's Avatar
    Slunnie
    Slunnie is offline Swaggie Gold Subscriber
    Join Date
    Jan 1970
    Location
    Central West NSW
    Posts
    14,131
    Total Downloaded
    99.87 MB
    Quote Originally Posted by Sitec View Post
    Ok, I may now have a daft question... You say the Salisbury/Hypoid is 'stronger going forward'.. What's it like in reverse... (Ie:- The front diff in my 101)? Great pic comparison too! Cheers.
    Still outrageously strong!
    Cheers
    Slunnie


    ~ Discovery II Td5 ~ Discovery 3dr V8 ~ Series IIa 6cyl ute ~ Series II V8 ute ~
    Reply With Quote Reply With Quote
  3. 4th October 2013, 08:49 AM #83
    *RR*'s Avatar
    *RR*
    *RR* is offline Master
    Join Date
    Oct 2006
    Location
    Kyneton, Victoria
    Posts
    163
    Total Downloaded
    0
    Quote Originally Posted by rick130 View Post
    Lots in terms of CWP, but you still have the same (read relatively weak) shafts, CV and stub axles, so IMO a well built Rover diff in the front is preferable to sourcing and fitting a Sals.
    That was my next question! haha

    As Dana 44 front diffs are pretty common in the states..
    Reply With Quote Reply With Quote
  4. 4th October 2013, 08:57 AM #84
    isuzutoo-eh's Avatar
    isuzutoo-eh
    isuzutoo-eh is offline TopicToaster
    Join Date
    Apr 2008
    Location
    Near Seven Hills, Sydney
    Posts
    4,342
    Total Downloaded
    0
    RR, I believe the Sals is basically a metric Dana 60, not a 44.
    Reply With Quote Reply With Quote
  5. 4th October 2013, 11:34 AM #85
    isuzurover's Avatar
    isuzurover
    isuzurover is offline Swaggie
    Join Date
    Aug 2006
    Location
    WA
    Posts
    13,786
    Total Downloaded
    0
    Quote Originally Posted by Sitec View Post
    Ok, I may now have a daft question... You say the Salisbury/Hypoid is 'stronger going forward'.. What's it like in reverse... (Ie:- The front diff in my 101)? Great pic comparison too! Cheers.
    As Slunnie said more than strong enough.

    However the 101 is unusual in that it has 2x low pinion hypoid diffs. The front is actually stronger in reverse than forwards.

    Most vehicles with hypoid diffs have a low pinion rear and high pinion front, which means both diffs are weaker driving in reverse.

    Some toyotas with high pinion fronts are known for breaking front diffs if you give them too much right foot in reverse. However these are diffs with 7.5-8" crownwheels...


    Quote Originally Posted by isuzutoo-eh View Post
    RR, I believe the Sals is basically a metric Dana 60, not a 44.
    That is correct. Dana 60 parts can be interchanged with Sals parts.
    Reply With Quote Reply With Quote
  6. 4th October 2013, 12:23 PM #86
    *RR*'s Avatar
    *RR*
    *RR* is offline Master
    Join Date
    Oct 2006
    Location
    Kyneton, Victoria
    Posts
    163
    Total Downloaded
    0
    Quote Originally Posted by isuzutoo-eh View Post
    RR, I believe the Sals is basically a metric Dana 60, not a 44.
    No wonder it's bullet proof! The yanks call the 60 a "1 ton diff"!
    Reply With Quote Reply With Quote
  7. 4th October 2013, 02:58 PM #87
    sheerluck Guest
    When you see those two diffs side by side, you really get an appreciation of why the Salisbury is considered to be tough. That was engineered to last, wasn't it!
    Reply With Quote Reply With Quote
  8. 5th October 2013, 06:14 AM #88
    Bush65
    Bush65 is offline YarnMaster
    Join Date
    Jan 1970
    Location
    'The Creek' Captain Creek, QLD
    Posts
    3,724
    Total Downloaded
    0
    Quote Originally Posted by sheerluck View Post
    When you see those two diffs side by side, you really get an appreciation of why the Salisbury is considered to be tough. That was engineered to last, wasn't it!
    Rather than engineered to last, I tend to think it was a compromise. Based upon the Dana 60, while suitable for the 101 it was designed for larger vehicles than most of our Land Rovers. So they compromised with the size of the half shafts and cv's and reduced the wall thickness of the axle tubes.

    The result is a diff that is overkill strength and size wise, but overall no stronger than the weakest link.
    Reply With Quote Reply With Quote
