Thread: LED Defender - Rear Lights, indicators & flasher unit

Thanks - as far as I can tell those sit on plinths and would protrude further than the other ones I posted....

I'm surprised there are no 'matching' reverse lights from wipac (they do sell the NAS style also).

Hi Vlad,

S6061LED, S6060LED or S6062LED are the same size as the factory parts that they replace (73mm). Unlike the NAS spec lights they do not require a plinth.

Assuming that you currently have the round versions and not the rectangular ones, the NAS spec reversing light and rear (red) fog light, are the same size (95mm) as the factory items that they replace. They fit straight into the factory plinth without modification.

Wipac make all of the above items. Wipac also make the OEM lights on the current defenders.

FWIW, Bizarrely I had to reverse the wiring on the 73mm lights because they didn't work when I plugged them in.

Hope that helps.

reversing the wires - yeah LED are polar - will only work one way.

My current reverse light is rectangular but I want a round one (two actually).

Sorry for ending up a bit OT on this but in for a penny, in for a pound...

Originally Posted by VladTepes

reversing the wires - yeah LED are polar - will only work one way.

Although some lights have additional circuitry so that they work either way. Not these ones though

Originally Posted by VladTepes

My current reverse light is rectangular but I want a round one (two actually).

95mm reversing light is part number S6080LED and the plinth is AMR3850.
Two reversing lights - like this? (all 95mm/NAS on the rear)

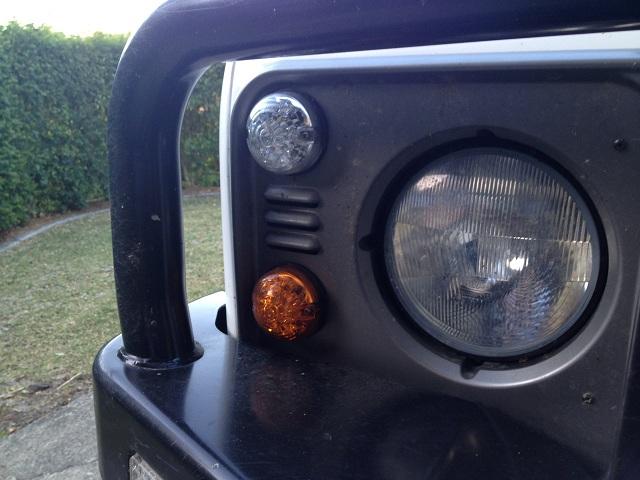

While I'm at it, here's the front with the 73mm LEDs:

Are the rear WIPAC ones designed to use a plinth or not (the brake/tail and indicator ones I mean) ?

Originally Posted by VladTepes

Are the rear WIPAC ones designed to use a plinth or not (the brake/tail and indicator ones I mean) ?

All of the 95mm/NAS lights require a plinth.
None of the 73mm lights require a plinth.

Thanks. Will be ordering mine tomorrow.
If you put LED's on the front as well as the back do you still need to do the mod on the flasher relay?

Yes, the front and/or the back will require the mod or a new LED can.

Only the side lights dont require it as they don't place enough load on the system to trigger the 'bulb failed' fast flash.

Or so I reckon.
