Thread: Defender 130 aftermarket air - BTU requirements?

Search Rainman on here.....he has done this on his 130.

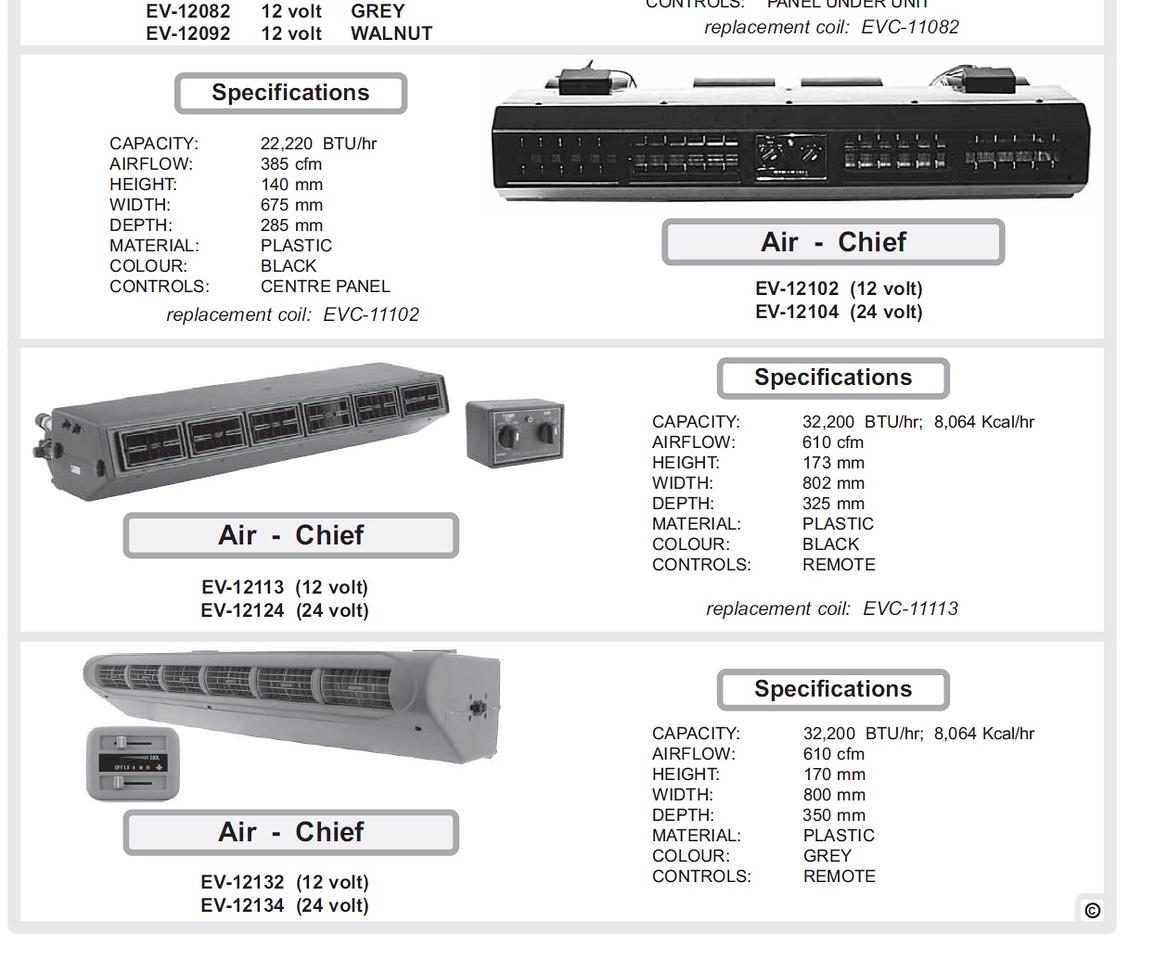

I have what appears to be EV-12113.Check out MY 95 DILDO in members rides for relevent info


AM

Originally Posted by Ancient Mariner

I have what appears to be EV-12113.Check out MY 95 DILDO in members rides for relevent info


AM

It appears you do have the 12113. Neat instal.....with less roof to play with I was planning to run my condenser in the usual spot up front.

Does it do the job in summer? Scrutinizing the pictures I can't tell if you have thermal insulation installed.

Many thanks,

Jason

Originally Posted by weeds

Search Rainman on here.....he has done this on his 130.

Thanks Weeds, I've poured all through those posts now.

I noticed your unit is around the 20kbtu mark.....any complaints in a QLD summer?

Originally Posted by Fubar

It appears you do have the 12113. Neat instal.....with less roof to play with I was planning to run my condenser in the usual spot up front.

Does it do the job in summer? Scrutinizing the pictures I can't tell if you have thermal insulation installed.

Many thanks,

Jason

20mm closed cell foam glued to roof and 10mm cheap chinese self adhesive foil faced every where else .Hottest days in NQ the dog and I are happy on second speed with the window open


AM

Originally Posted by Fubar

Thanks Weeds, I've poured all through those posts now.

I noticed your unit is around the 20kbtu mark.....any complaints in a QLD summer?

Mine needs some adjusting....not performing as good as it should.

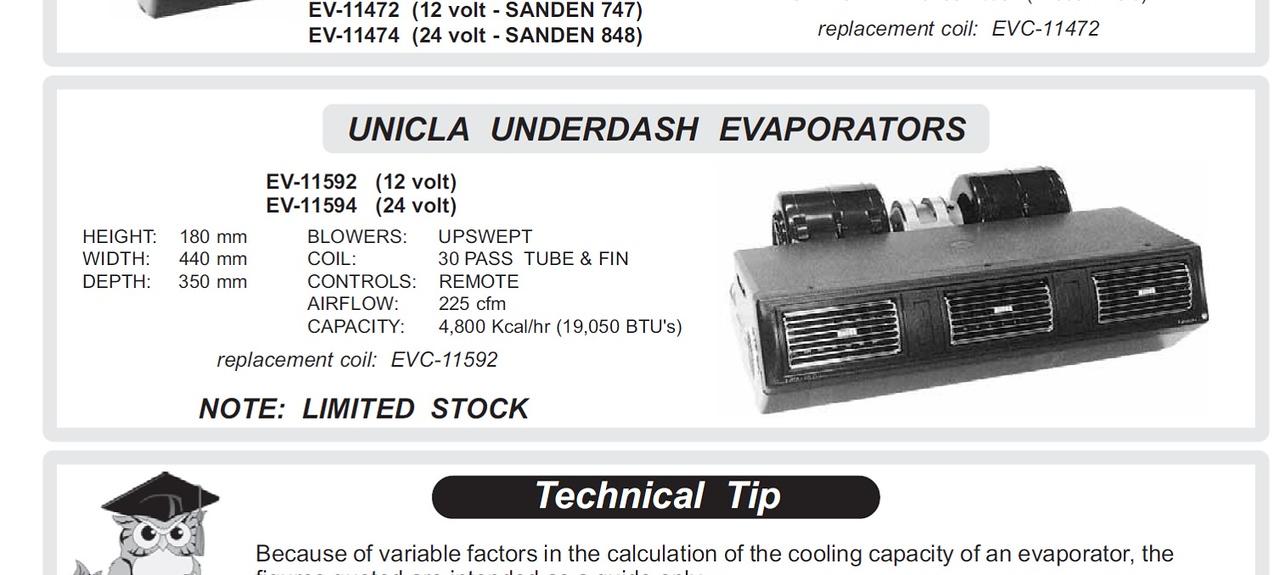

I have a formula king EV2208 18,000btu in my 110 wagon. It's very well insulated including foam and dynamat on roof etc.

It's plenty cold enough on all but the very hottest (40+) days. I like it cold though so i would probably go a bit bigger next time. But....the down side is that mine is already way too cold even on its lowest setting on the not so hot days. The thermostat setup is pretty crude so you have to keep switching it off otherwise you freeze. You can only run it a few minutes at a time so this gets very annoying.

Like weeds mine is not working too well at the moment so is suspect it's losing a bit of gas. I had the same problem before and following a top up it was back to icy cold again.

One of the best mods I have done.

Thanks gents,

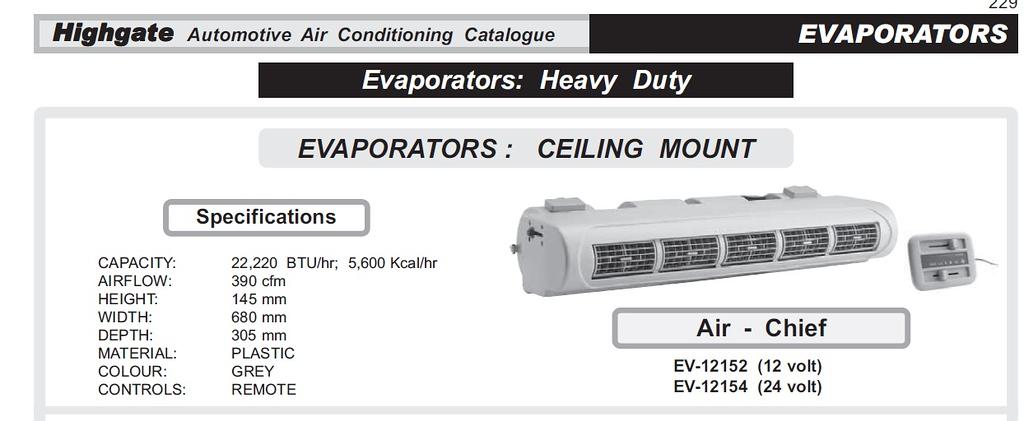

I ordered the 22,220btu air chief model.

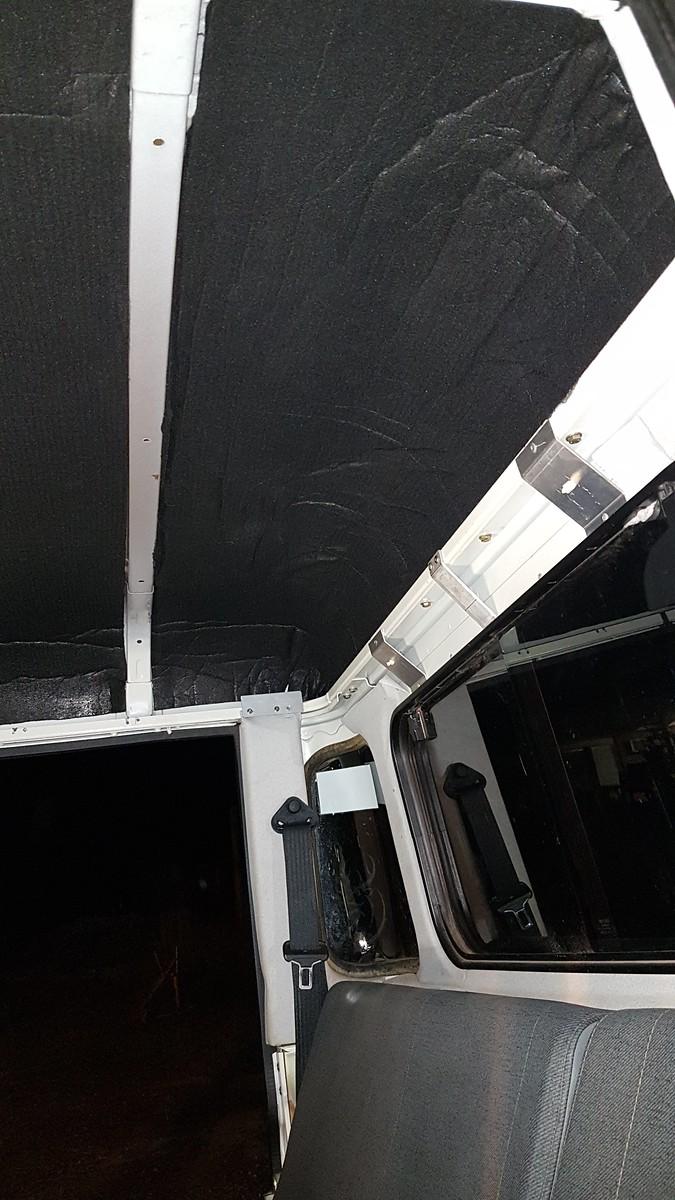

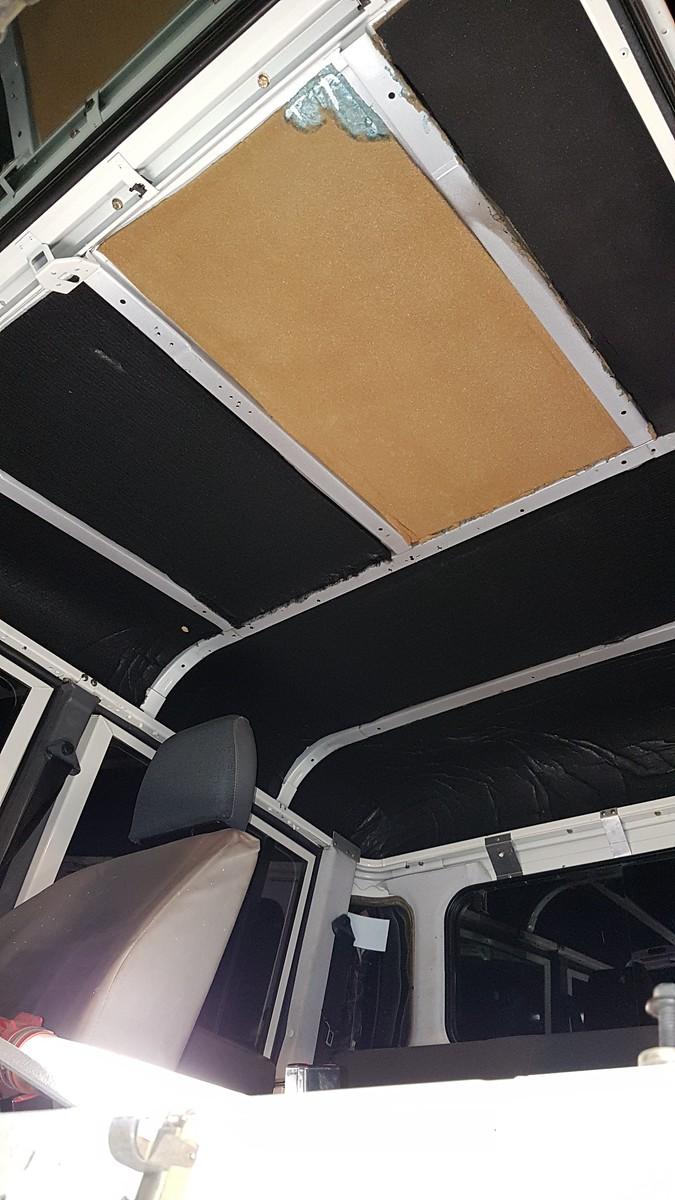

I went with this model as it is suited for a mini-bus, there will be bulk thermal insulation added and the 130 cab is 2/3 the size of a 110 wagon. Additionally I am removing the rear window which will allow the entire rear cab panel to be insulated. The evaporator unit is narrow enough to still leave full height head clearance in the rear for passengers, thin enough for most humans to sit under it in the centre rear seat without touching.

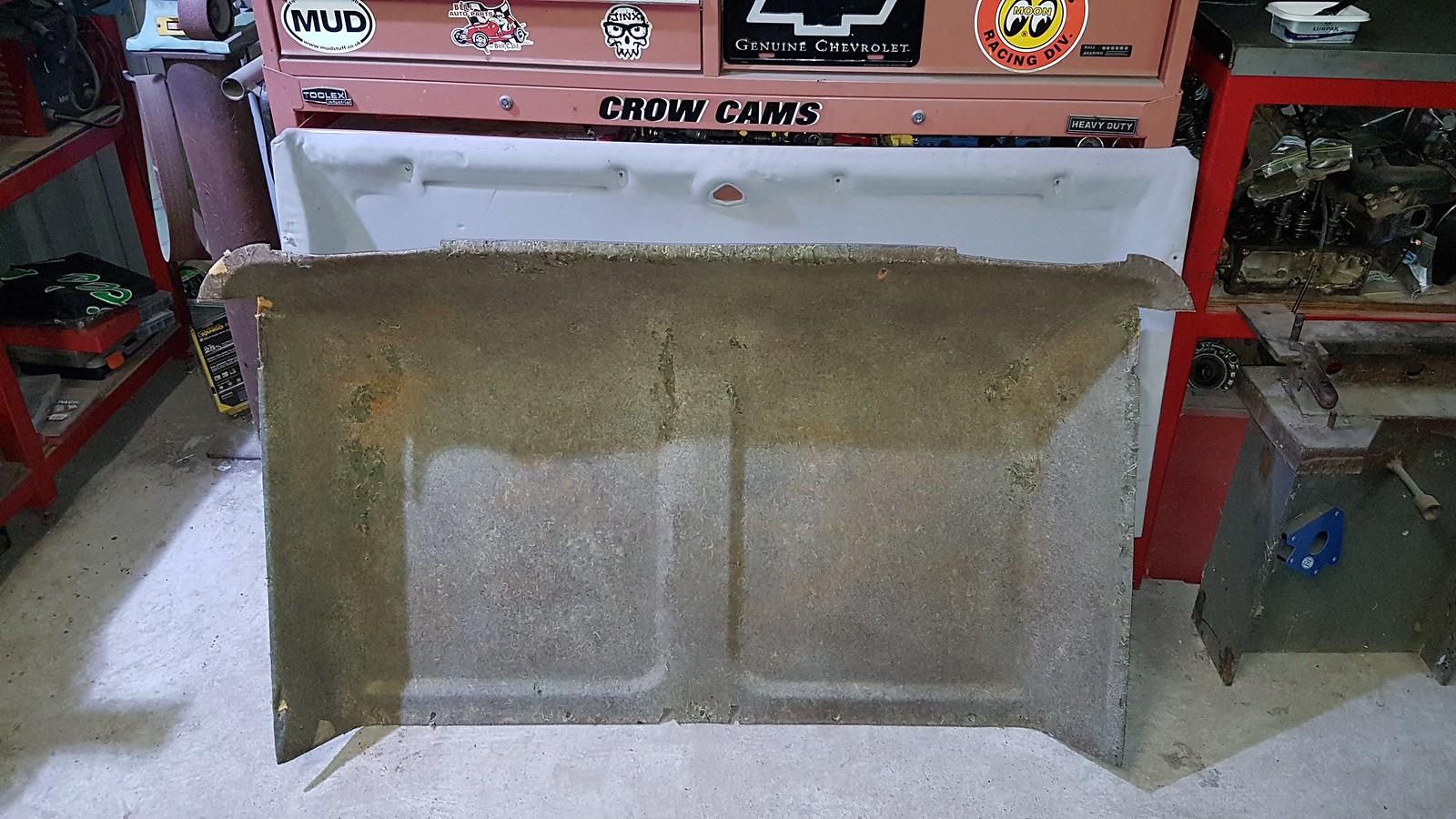

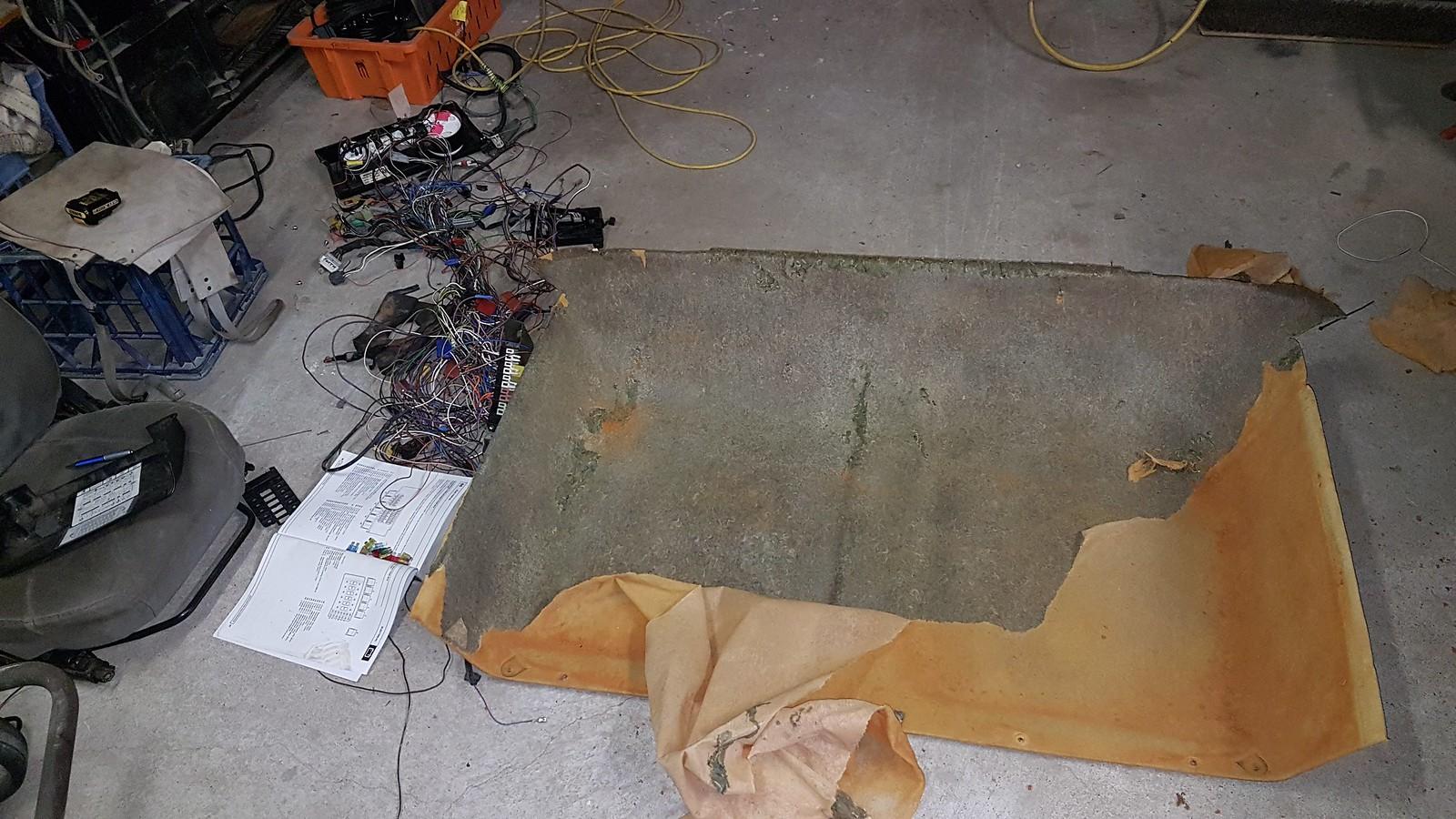

Commenced stripping the headling & existing cheap foam insulation to prep the cab for the evaporator.
