Thread: Aftermarket Aluminium Radiator

Hello out there,

I recently bought a aftermarket radiator from a company called ASI Performance for my Disco 1 1999 V8 Petrol.
When trying to fit the transmission lines the thread on the end of the adapters that they sent me so the transmission lines fit onto the header tank are wrong, they are the right orientation of adapters but the external thread male end where the cooler lines go on are a BSP thread size and not metric,
I have hunted around every where to find some and cant find any of the correct ones. I have also contacted the seller and he has no clue what im talking about.
Does anyone know whom may sell these adapters please.

*Sorry I don't post much, I read more than post, in the pictures below you'll also see my personal custom electric 2 speed fan and shroud. The shroud was taken off the factory shroud and melted with the customer shroud.*


There's fitment issues with the ASI radiator.



1. The bracket with the nipple at the bottom is off by approx. 2cm and does not sit into the holes in the factory radiator mount

The fix you'll have to cut the nipple off so the radiator can seat properly

Picture shows the nipple is off


Solution cut off the nipple


2. The bracket extending out the face of the radiator that is suppose to retain the fan shroud is upside and on the wrong end. At the current configuration it does nothing.

Those bracket are useless and gets in the way to have your fan shroud sitting properly so cut those off.

Picture of the brackets which should belong at the bottom of the radiator and face the opposite direction


Must be cut off so the shroud can sit on the radiator, the bracket has no use as its in the wrong place and upside down.



3. The lower radiator hose outlet is too close to the radiator face and when the fan shroud installed there is no space for the radiator hose to fit. So either have the outlet stick out further or instead of a 90 degree angle it needs a 35-45 degree point out.

This you'll have to cut up your fan shroud to make proper clearance




After cutting shroud and adding plates to avoid air getting sucked in from the side.

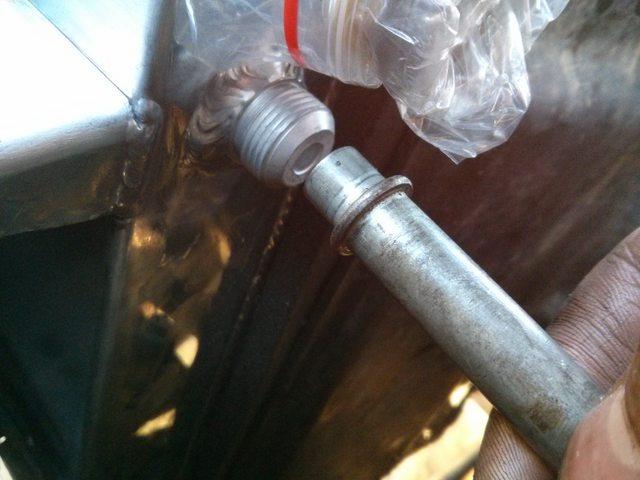

4. The transmission cooler inlet outlet are correct thread but the hole is too small for the male section of the pipe to fit into causing the nut Not to be able to reach the thread. Either provide the proper adapter or enlarge the hole to allow the male portion of the pipe to fit into.

You'll need to find the correct adapter from a hardware store, if not from a specialty hose store. If you have the right tool you can enlarge the hole but you'll get aluminum flake inside the cooler.



I have no experience yet on the effectiveness of the radiator and its performance and reliability as I still haven't gotten over the hurdle with finding the adapter for the transmission cooler

I spent so far about 3 hours of modification and fitment test. Not sure if this radiator is worth it. It has the same amount of fins as the factory radiator. Copper is more effective in transferring heat vs. aluminum. The only pros of aluminum rads are its lighter weight and transfer 30% more heat because they can pack more fins and channels BUT this particular aluminum rad has the same amount of fins as the copper one, which means this will perform less effective as the copper one.

This IS NOT a plug and play and needs a good amount of modification. The only advantage it cheaper ~$299 than the factory OEM ~$500-$800 but the amount of work to make it fit and work is probably NOT worth it.
