Thread: flex pics...

Originally Posted by jeep_boy

extending your bumptsops wont make it flex more it will stop it, what you need to look at is why its not reaching bumpstop????, are your shocks stopping this, are swaybars stopping it, are the springs to stiff, downtravel is of more value than uptravel, you could look at taller shock towers than a long travel shock

The reason i want to extend bumpstops is to stop the shocks bottaming out, not for extra travel, the shocks are the first to stop down travel not the springs, but the springs are fairly solid
Thanks

TIM.

Originally Posted by long stroke

The reason i want to extend bumpstops is to stop the shocks bottaming out, not for extra travel, the shocks are the first to stop down travel not the springs, but the springs are fairly solid
Thanks

TIM.

another good reason why not to shorten your shock mounts. if you raise them by 50mm then the compressed length of the shock will get closer to the bumpstop, thats IF your spring rates arent to stiff. i found that 220lb in the rear and 190lb in the front of a disco worked really well on and off road, that coupled with 10'' stroke shocks front and rear. if your shocks are +4'' then your running 12'' stroke would be a good starting point as to why your shocks are topping out!

where did you get the springs and shocks from?

cheers phil

Originally Posted by long stroke

The reason i want to extend bumpstops is to stop the shocks bottaming out, not for extra travel, the shocks are the first to stop down travel not the springs, but the springs are fairly solid
Thanks

TIM.

bumpstops dont have anything to do with downward travell.
they stop shocks topping out.

cheers phil

Originally Posted by discowhite

another good reason why not to shorten your shock mounts. if you raise them by 50mm then the compressed length of the shock will get closer to the bumpstop, thats IF your spring rates arent to stiff. i found that 220lb in the rear and 190lb in the front of a disco worked really well on and off road, that coupled with 10'' stroke shocks front and rear. if your shocks are +4'' then your running 12'' stroke would be a good starting point as to why your shocks are topping out!

where did you get the springs and shocks from?

cheers phil

Thanks again Discowhite
I got my shocks off Philco, see here..http://www.aulro.com/afvb/verandah/5...ft-shocks.html
And i got my springs off Shane at suspension stuff

CHEERS TIM.

righto,
shanes springs should be dobbinsons, they may be a bit stiff but will work well with a bit of weight in the disco. as others said in the linked post the shocks are only +2'' not +4''.

cheers phil

Originally Posted by discowhite

righto,
shanes springs should be dobbinsons, they may be a bit stiff but will work well with a bit of weight in the disco. as others said in the linked post the shocks are only +2'' not +4''.

cheers phil

Yep Shanes springs are dobbinsons, they are 3" flexy coils (only flexy in the rear) and he has only sold afew sets as he is still testing them and receiving feedback from the few who have bought them, he hasn't advetised yet
I didn't notice those posts about them only being only 2" longer then stock, i measured them against a standard shock and they were about 4" longer

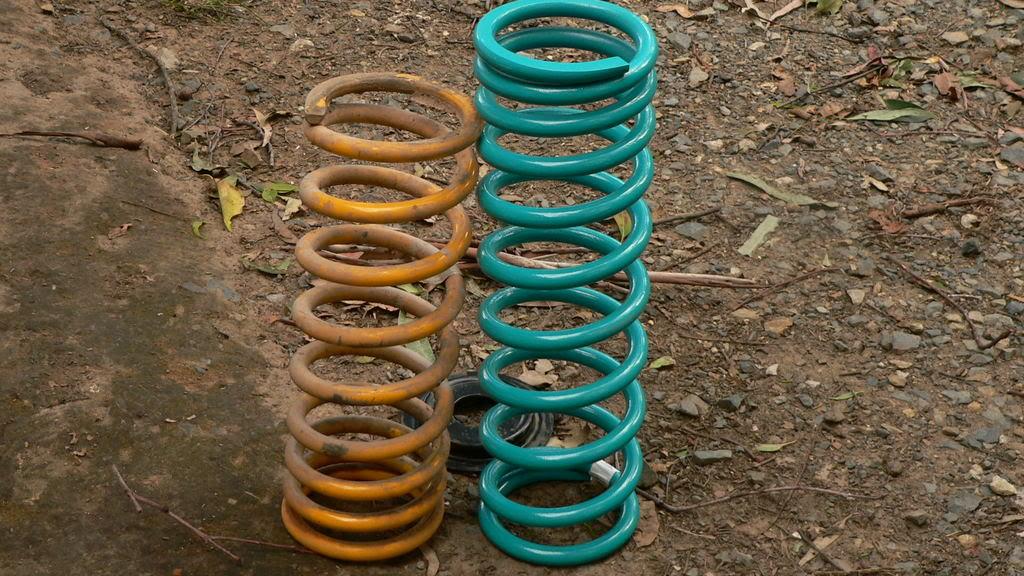

Here are some pics of the rear springs against some 2" kings..


So if i raise shock mounts will i loose down travel?

CHEERS TIM.

well, yes and no, what it dose is change where the opperating range of the stroke is. there is no point having 10'' stroke shocks if your only using 8'' of travell. say now you have 6'' down and 2'' up, if you raised the towers you ''should'' be able to get 5''down and 5'' up, roughly... as said the front is hard to flex so you might as well get the most out of it that you can. another thing is to flip the big cup washers on the radius arm chassis end's around, this frees the bush up and allows more movement.

cheers phil

Originally Posted by discowhite

well, yes and no, what it dose is change where the opperating range of the stroke is. there is no point having 10'' stroke shocks if your only using 8'' of travell. say now you have 6'' down and 2'' up, if you raised the towers you ''should'' be able to get 5''down and 5'' up, roughly... as said the front is hard to flex so you might as well get the most out of it that you can. another thing is to flip the big cup washers on the radius arm chassis end's around, this frees the bush up and allows more movement.

cheers phil

Thanks Phil
I'll do some measuring and play around with raising it and see if it helps
I might even flip the big cup washer

CHEERS TIM.
