Thread: Les Richmond Automotive Stage 2 Flare Kit Pictures

Hey mate.

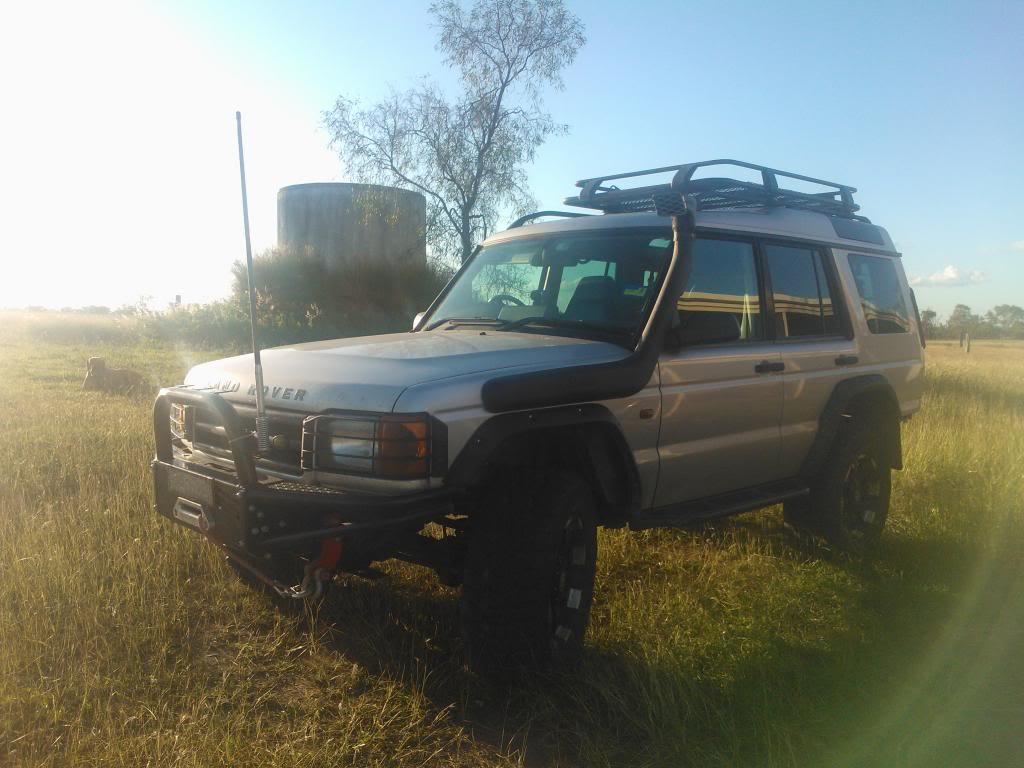

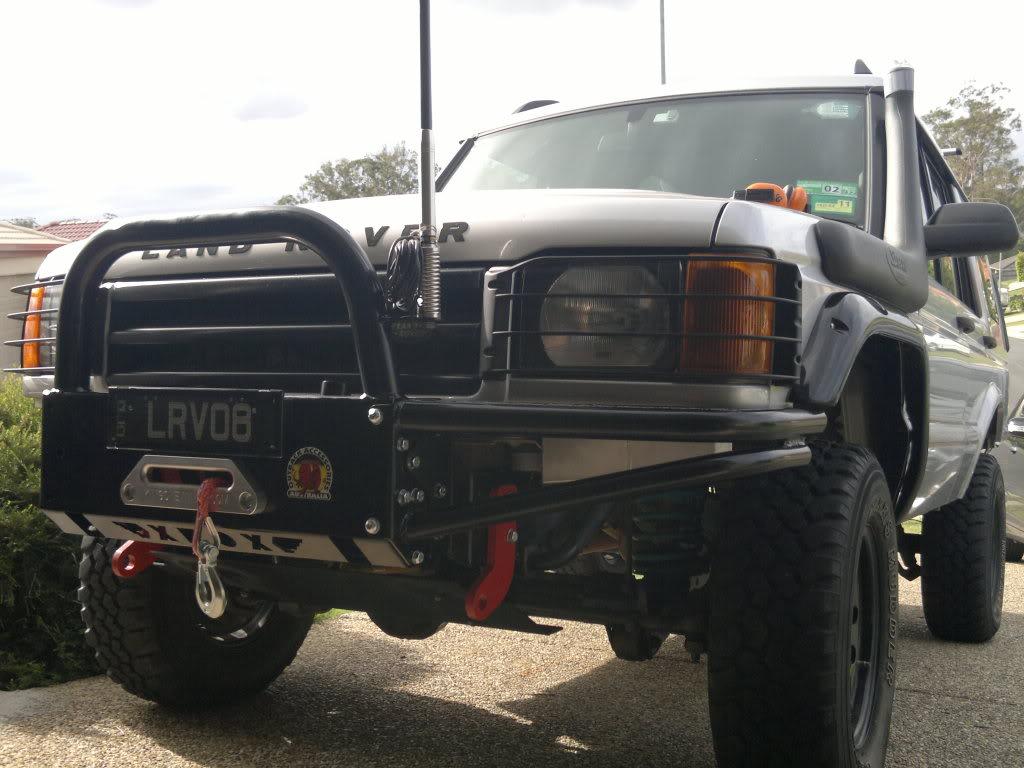

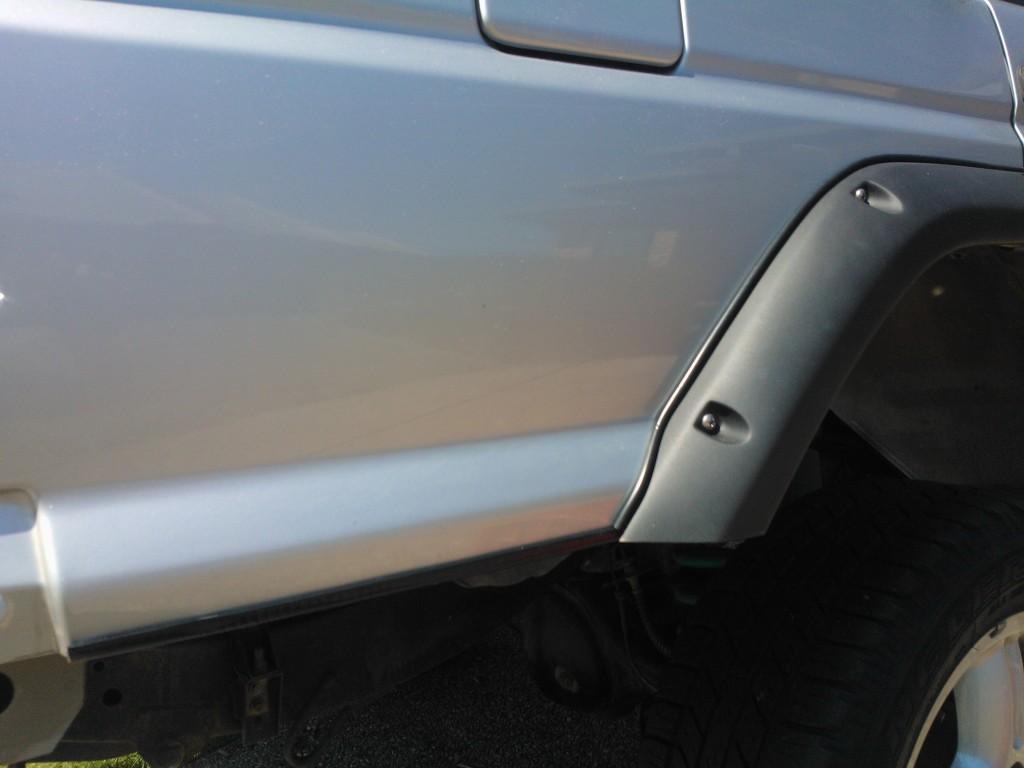

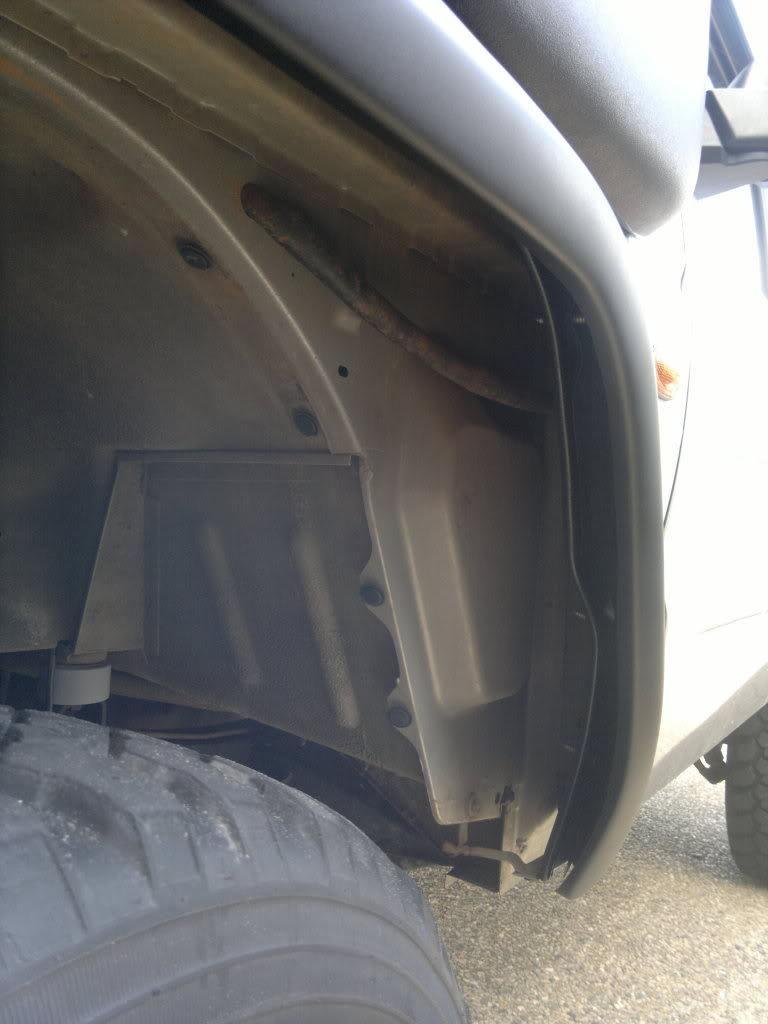

I've got those flares on mine. The fronts were easy to do but the rears were a pain in the backside.

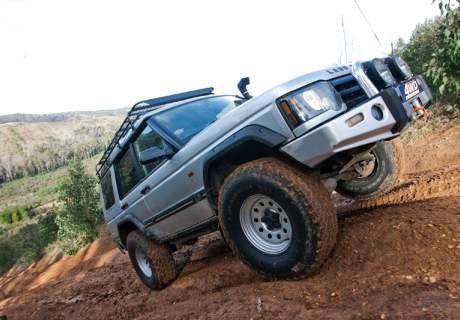

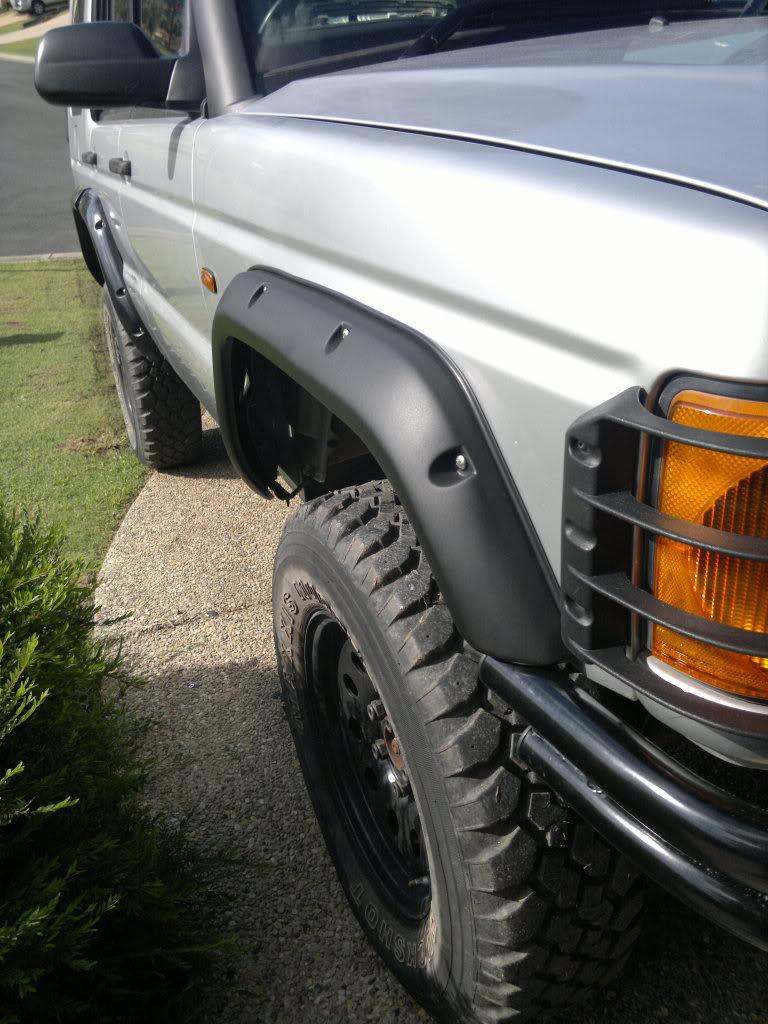

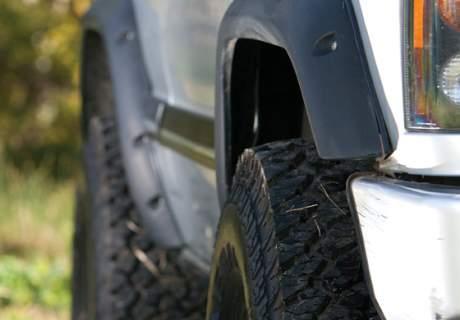

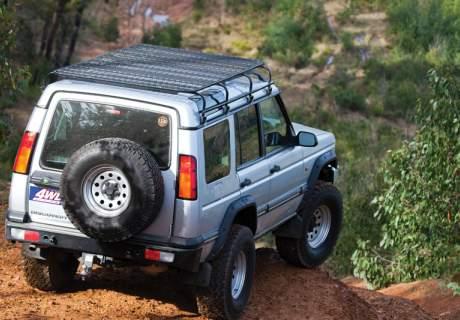

The photos on the page from Les Rich auto site were what he sent me when I did mine. As there were only photos of how to do the rear I just used this photo below to get the front done.

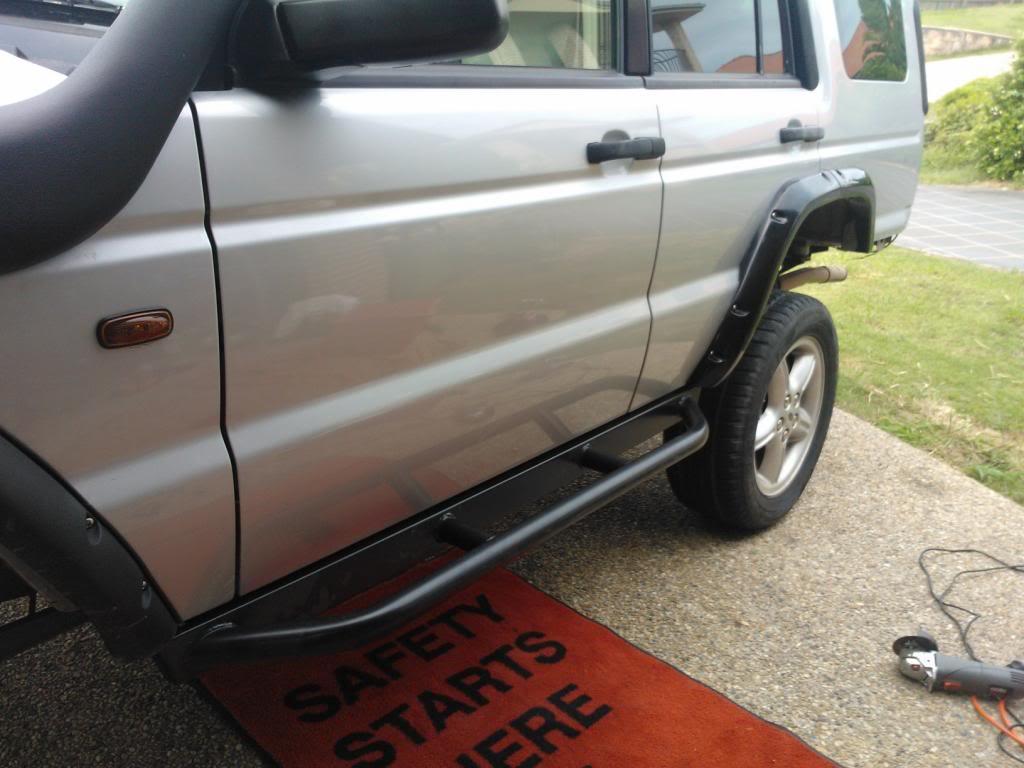

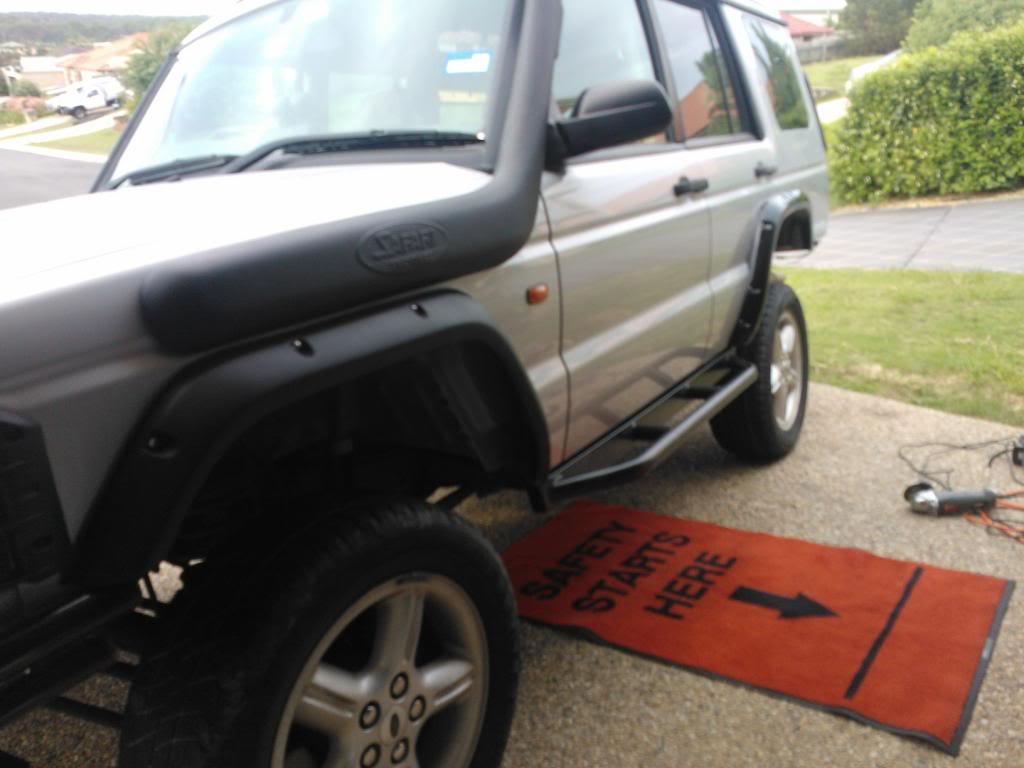

When you do start putting them on I'd recommend doing one side first then the other. so you can make them look the same.

As for cutting the guards I used a 1mm metal cutting disc on an angle grinder, it goes through them like a hot knife in butter. I think I only used about 2 discs.

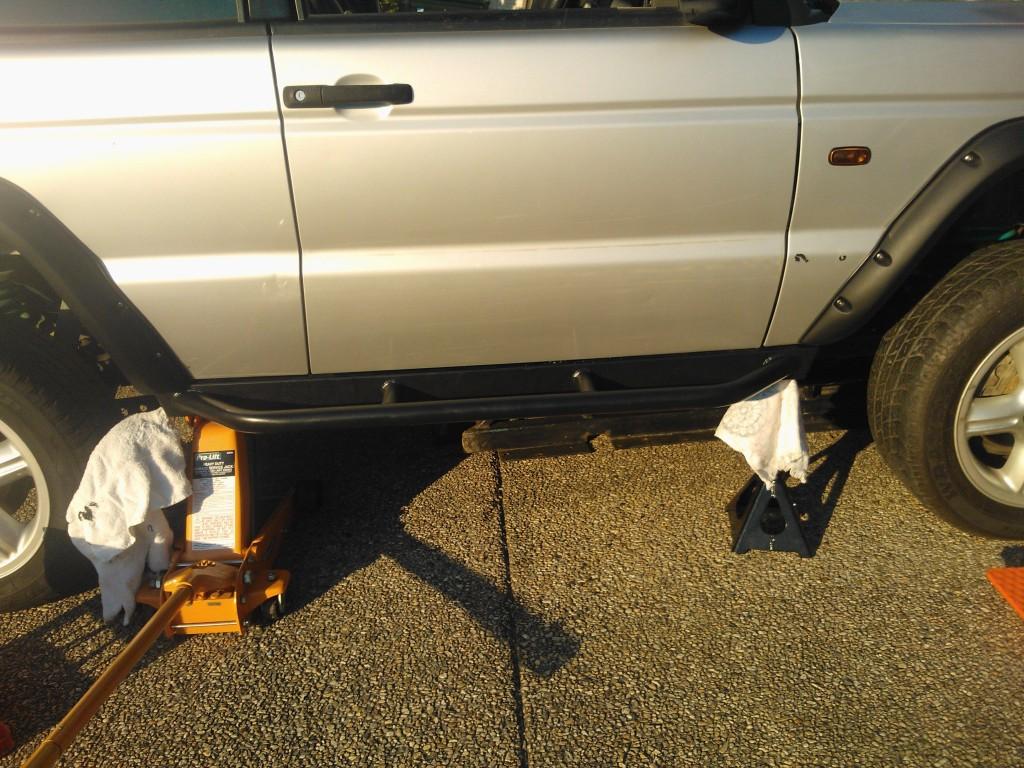

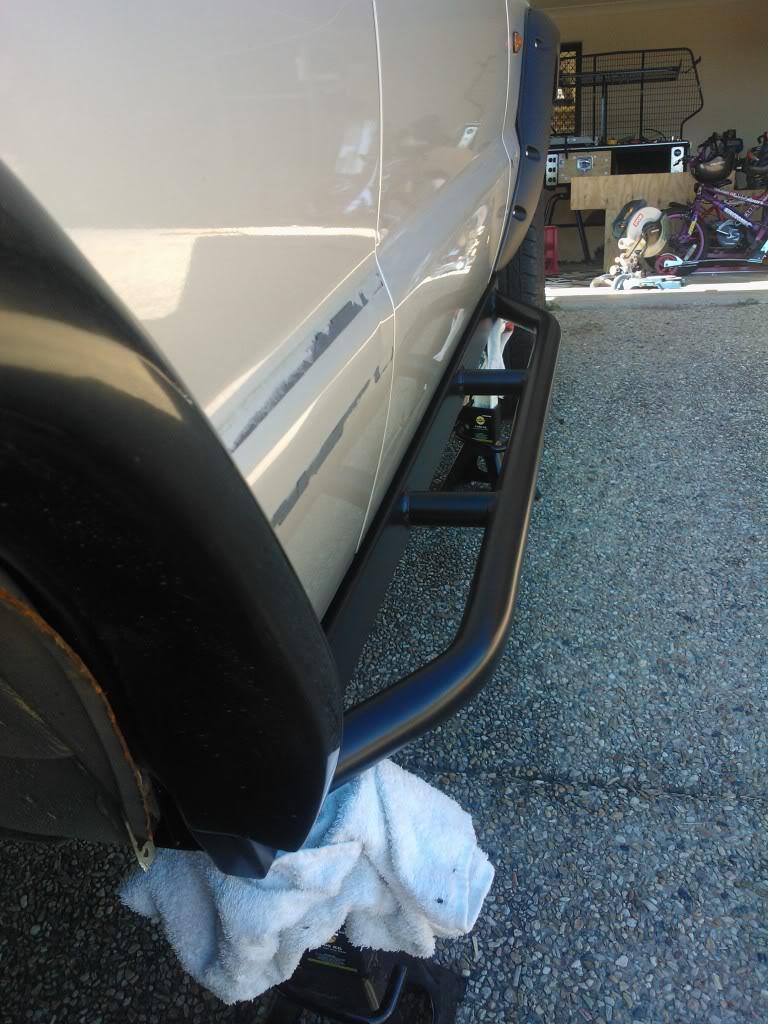

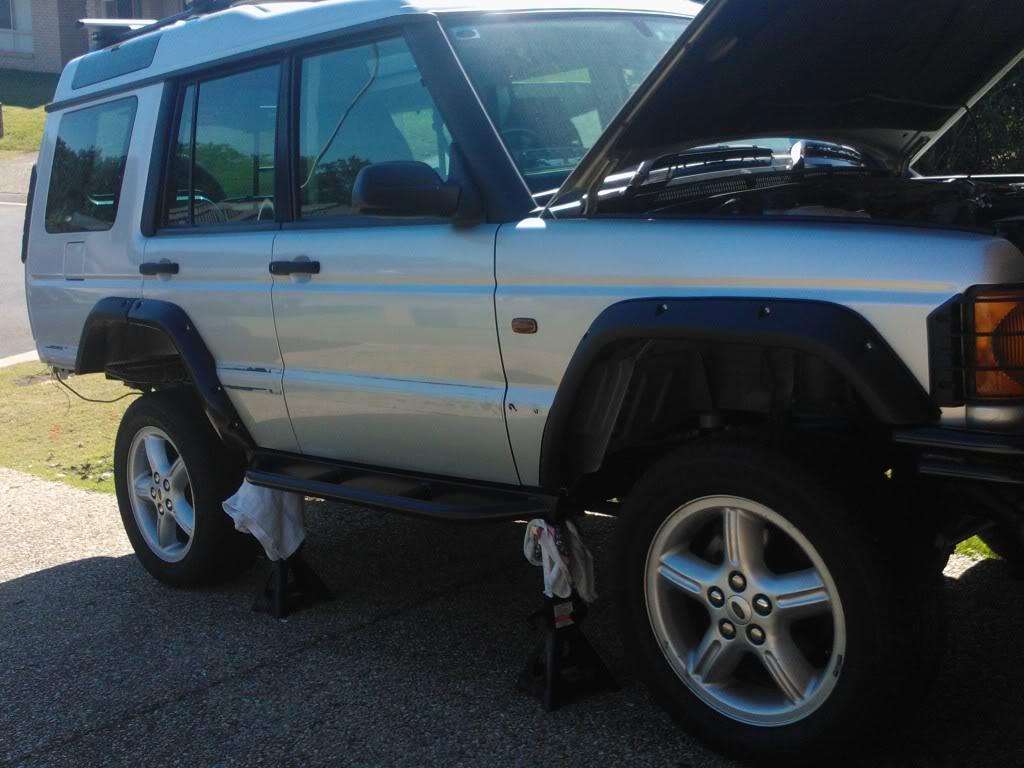

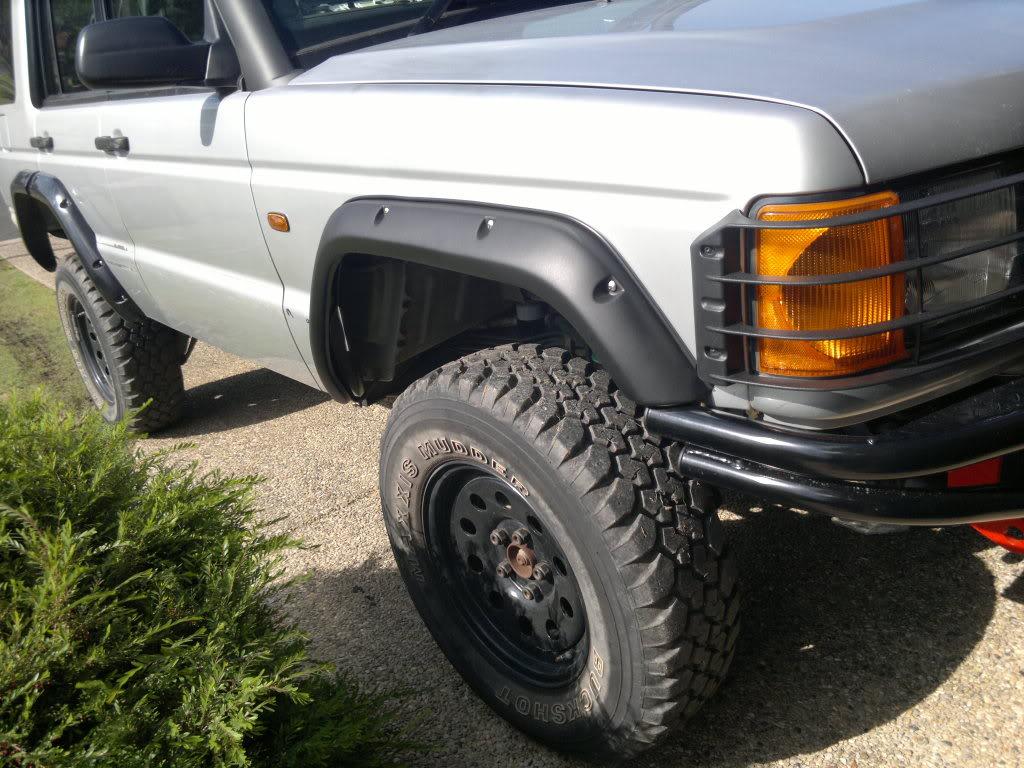

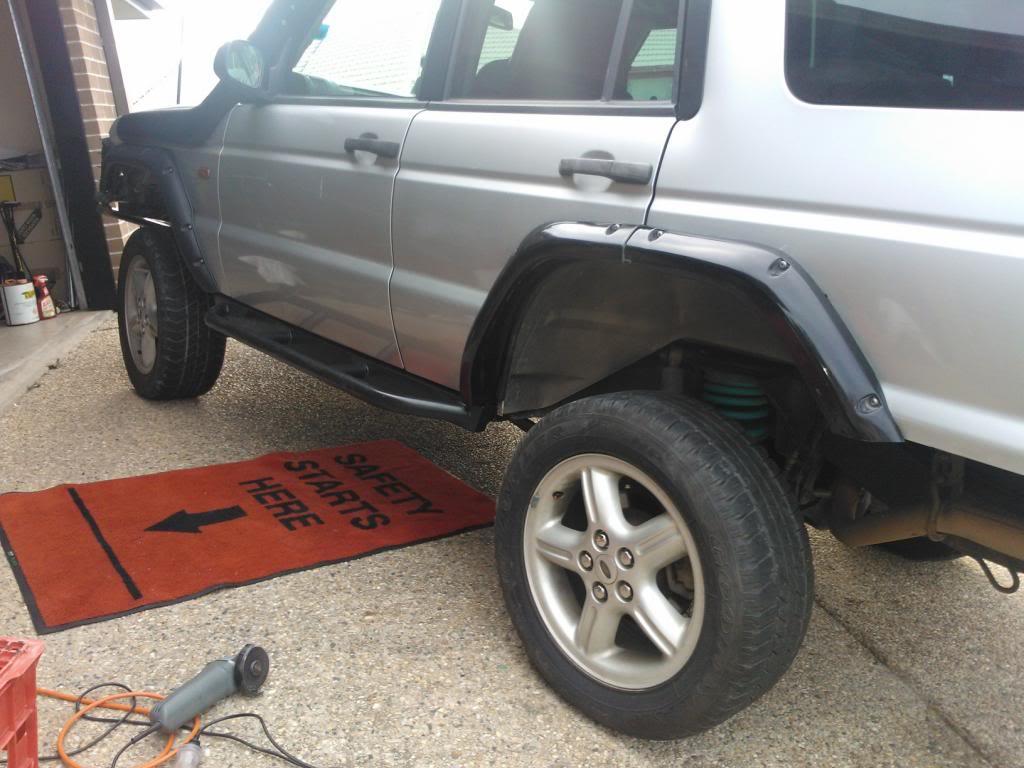

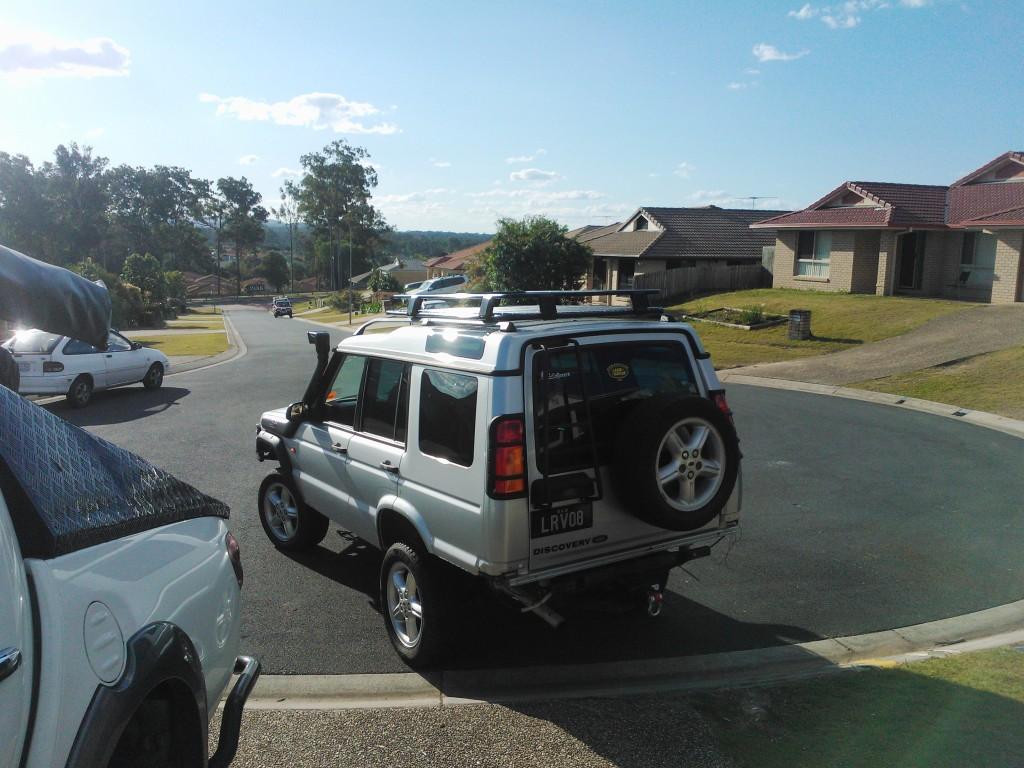

Oh and be careful cutting, take less then you need to start, then fine tune it, especially on the rear. I'll try to get some photos up of mine if you want.

Good luck, hope this has helped.

Cheers,
Albert

Originally Posted by Dodes

I'll try to get some photos up of mine if you want.

Thanks for the tips!

Any photographs that you have would be great!

Before you get the LR ones, look at the pommy ones....prices aren't bad and they look smaller than the LR ones....means you don't have to cut as much metal away.

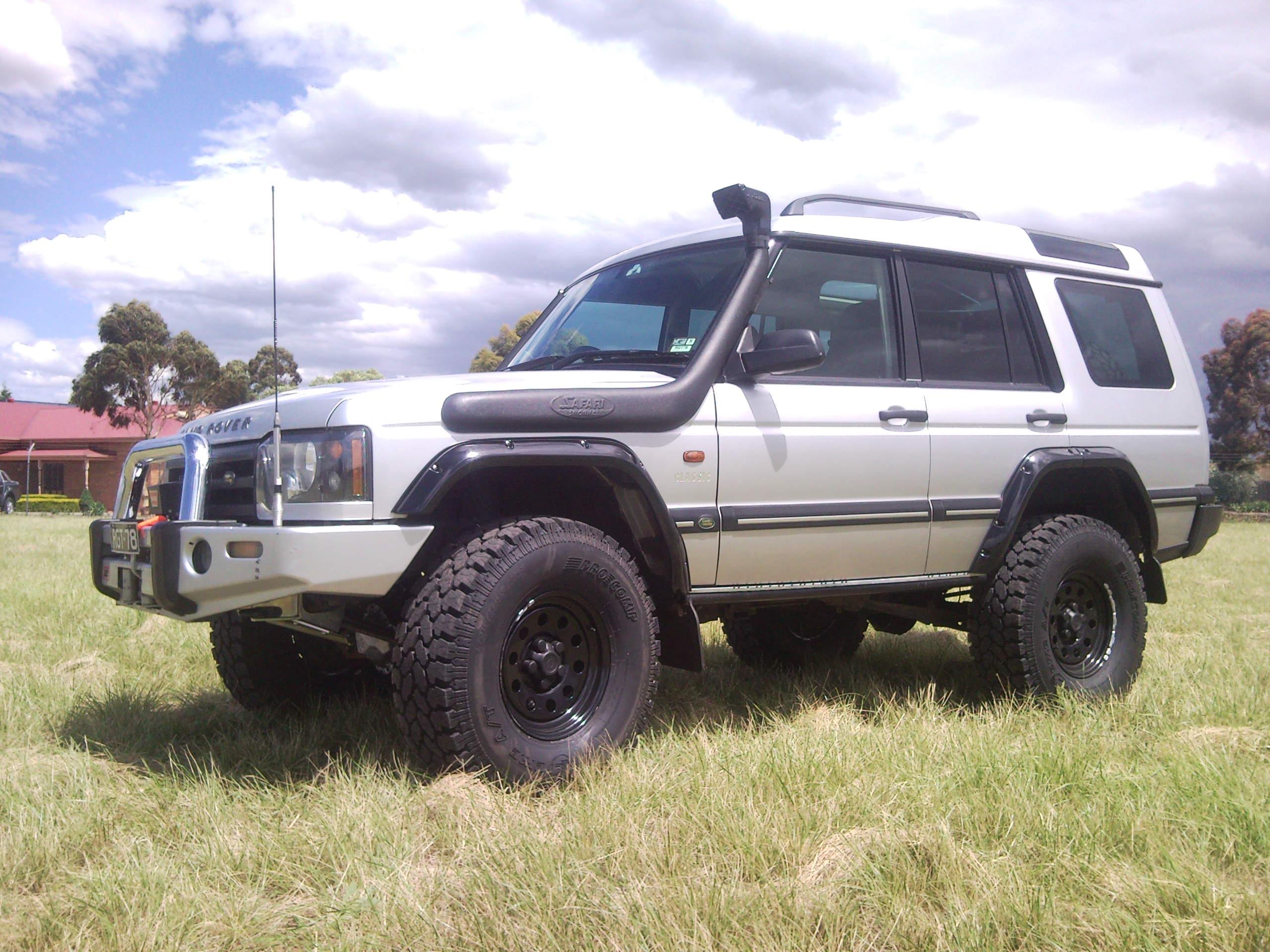

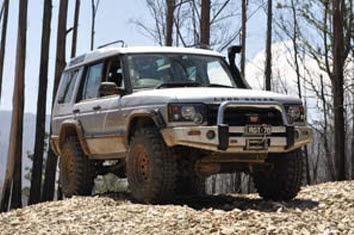

I'll find the link to the blue D2 on this forum with 33s and the pommy flares....looks very balanced I think....the LR ones are obviously made to go the max with 35s or more.

Ahhh, sorry just read that you've already bought them......maybe you could sell those and get these...

Cheers
Kev
http://www.flatdoguk.com/search.asp'...3E+Discovery+2 for seller.

http://www.aulro.com/afvb/members-ri...td5inside.html for piccies of the fitting.

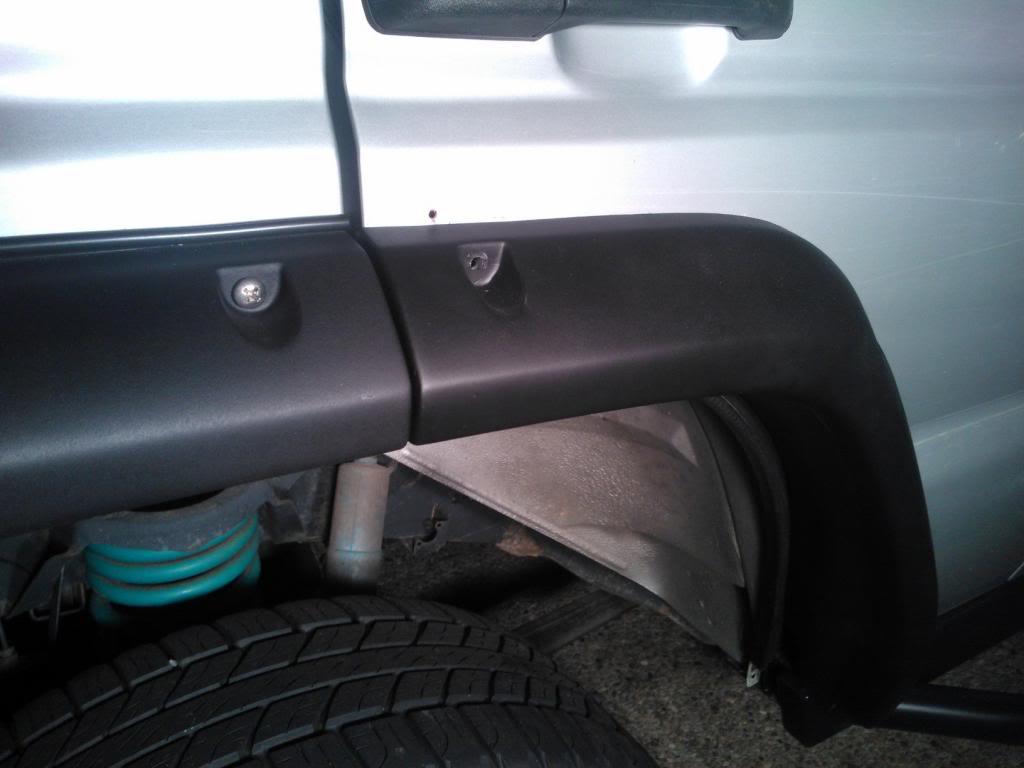

The UK ones don't deal the rear doors (or at least never did previously).

LR Auto ones are much stronger too...
They crack if hit really hard but repair easily.

Originally Posted by Tombie

The UK ones don't deal the rear doors (or at least never did previously).

LR Auto ones are much stronger too...
They crack if hit really hard but repair easily.

Sorry Tombie...."deal" the rear doors? Is that meant to be seal...?

I haven't looked at either brand, but I like the idea of cutting less out....even if I have to get constructive to seal up the rear doors....the local ones just seem to be huge....as I guess they would be to cover bigger tyres like 35s.

Cheers
Kev

Originally Posted by TD50WA

Before you get the LR ones, look at the pommy ones....prices aren't bad and they look smaller than the LR ones....means you don't have to cut as much metal away.

I have previously considered the Flat Dog brand flares - http://www.aulro.com/afvb/discovery-...50mm-75mm.html - after speaking to those who had owned/installed/used them I decided to go with the LRA product.

Originally Posted by TD50WA

I haven't looked at either brand, but I like the idea of cutting less out....even if I have to get constructive to seal up the rear doors....the local ones just seem to be huge....as I guess they would be to cover bigger tyres like 35s.

In my case the whole point of fitting them is to ensure that they cover my tires for roadworthy/engineering purposes and to remove at least an inch of metal from above the tyre to prevent any rubbing issues when I lower the vehicle an inch.

Originally Posted by TD50WA

Sorry Tombie...."deal" the rear doors? Is that meant to be seal...?

I haven't looked at either brand, but I like the idea of cutting less out....even if I have to get constructive to seal up the rear doors....the local ones just seem to be huge....as I guess they would be to cover bigger tyres like 35s.

Cheers
Kev

Err... Yes *seal*

Good choice in the flares in my opinion anyway :-)
I used 1mm grinding discs to do mine, one thing though, make sure you cover your panels and windows. The metal sparks melt into the clear coat as well as the windows.

Let me know what photos your after. Also, I think I have a fair few photos on my build thread, just click the link in my sig line.
