    AC clutch fell off Td5... Can we still drive it?

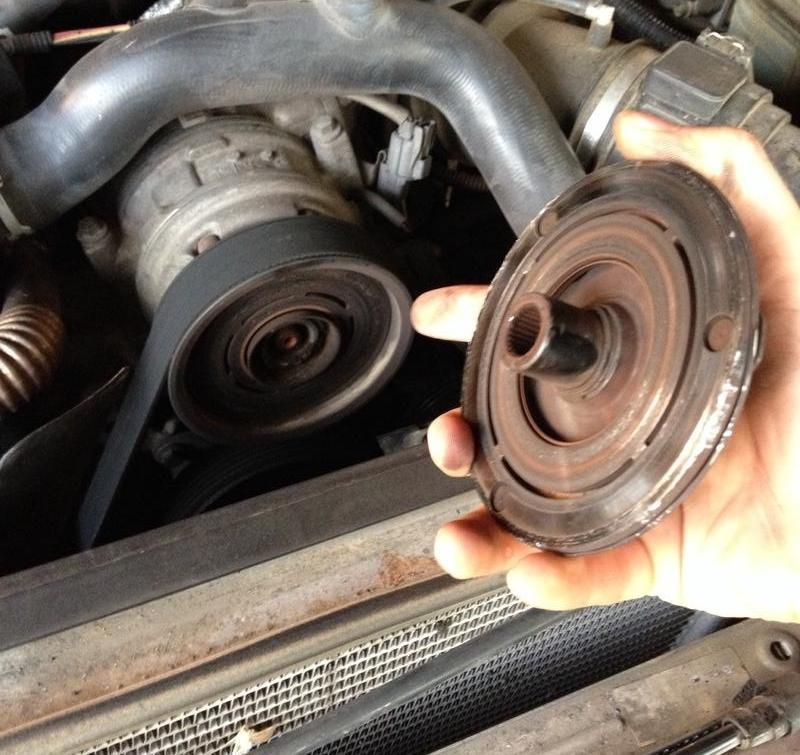

    Just after I put a white shirt on today mum came flying back up the driveway and handed me the face of the AC clutch she picked up off the road (they'd just left home).

    So off she went in my car... And I got to pull it apart.

    The M6 bolt has rattled out and the front of the clutch has fallen out of the pulley. It appears to luckily have missed all the fan blades and anything else in the way upon its exit.

    My question is, can she drive it without the clutch plate on there, obviously the AC won't work, but is the circlip enough to hold the pulley on as an idler.

    Cheers
    Will
    Attached Images Attached Images
    Reply With Quote Reply With Quote
  2. 17th October 2013, 05:37 PM #2
    MR LR
    MR LR is offline ChatterBox
    Join Date
    Apr 2009
    Location
    South Sydney
    Posts
    2,499
    Total Downloaded
    0
    You can't win with this photo rotation! Even tried to flip it in the iPhone haha
    Reply With Quote Reply With Quote
  3. 17th October 2013, 05:40 PM #3
    Disco Muppet's Avatar
    Disco Muppet
    Disco Muppet is offline Moderator Gold Subscriber
    Join Date
    Apr 2012
    Location
    Orange, NSW
    Posts
    7,965
    Total Downloaded
    0


    The Phantom - Oslo Blue 2001 Td5 SE.
    Half dead but will live again!

    Nina - Chawton White 2003 Td5 S
    Slowly being improved

    Quote Originally Posted by Judo View Post
    You worry me sometimes Muppet!!

    Reply With Quote Reply With Quote
  4. 17th October 2013, 05:50 PM #4
    MR LR
    MR LR is offline ChatterBox
    Join Date
    Apr 2009
    Location
    South Sydney
    Posts
    2,499
    Total Downloaded
    0
    Quote Originally Posted by Disco Muppet View Post


    HAHAHAHAHA

    It's upside down Cameron!


    EDIT: Apparently it's my iphone that's upside down... wtf
    Last edited by MR LR; 17th October 2013 at 07:19 PM. Reason: Muppet made me look like a muppet
    Reply With Quote Reply With Quote
  5. 17th October 2013, 05:51 PM #5
    RR P38's Avatar
    RR P38
    RR P38 is offline Master
    Join Date
    Jul 2010
    Location
    Sydney/Balmain
    Posts
    735
    Total Downloaded
    0
    If the cir clip is in place there is no reason why you cant drive it.
    Make sure you turn your AC off......or the coil will be energised continuously trying to draw that clutch in.
    Reply With Quote Reply With Quote
  6. 17th October 2013, 06:45 PM #6
    MR LR
    MR LR is offline ChatterBox
    Join Date
    Apr 2009
    Location
    South Sydney
    Posts
    2,499
    Total Downloaded
    0
    Quote Originally Posted by RR P38 View Post
    If the cir clip is in place there is no reason why you cant drive it.
    Make sure you turn your AC off......or the coil will be energised continuously trying to draw that clutch in.
    Glad to know my thoughts were right! Thanks
