Thread: Swearing and Skinned Knuckles

  1. #11
    Join Date
    Dec 2008
    Location
    Melbourne, Victoria
    Posts
    157
    Total Downloaded
    0
    Today I was working on the ball joint replacement. I was videoing but the rain and hail was so loud it completely drowned out the audio. Probably just as well because I said quite a lot of bad words and shouted a bit. Probably one of the less pleasant jobs I've done on a car.


    I've got the drivers side finished and will do the passengers side tomorrow. I'll try the get the process on video. I worked it all out today so I should be able to step by step it (without swearing too much).

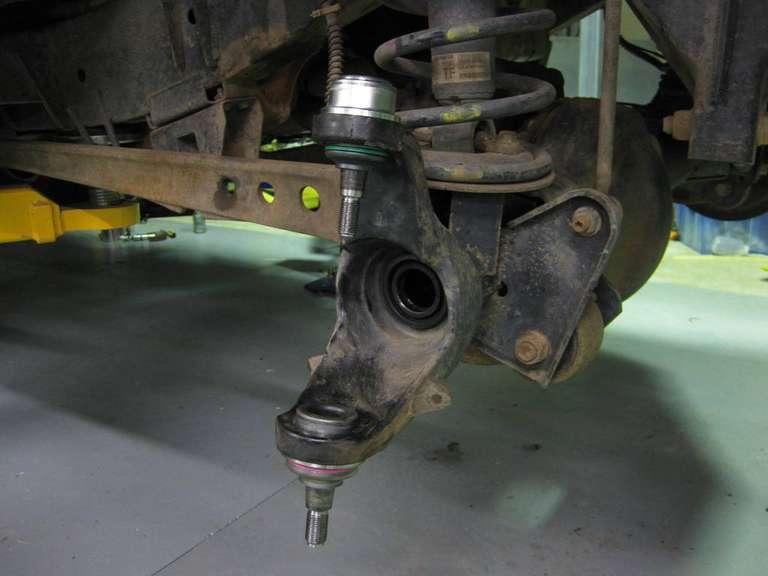

    New ball joints installed:

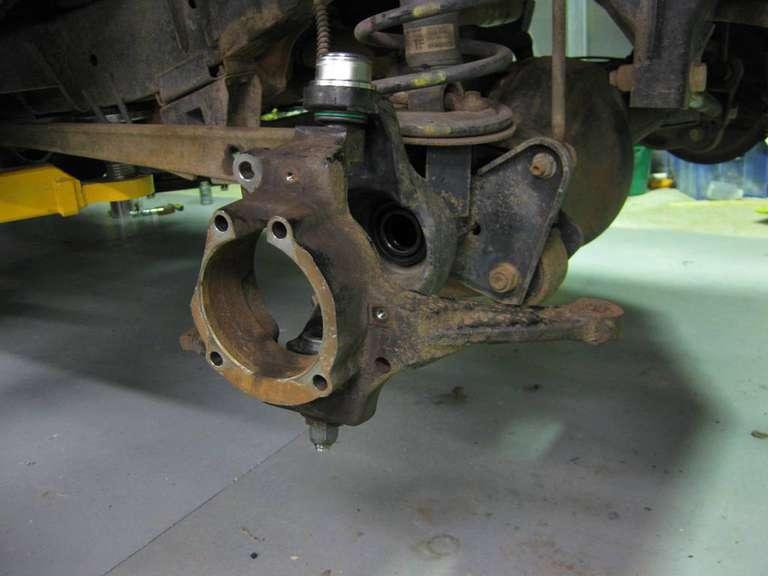

    Hub carrier reinstalled:





    Axle re-fitted

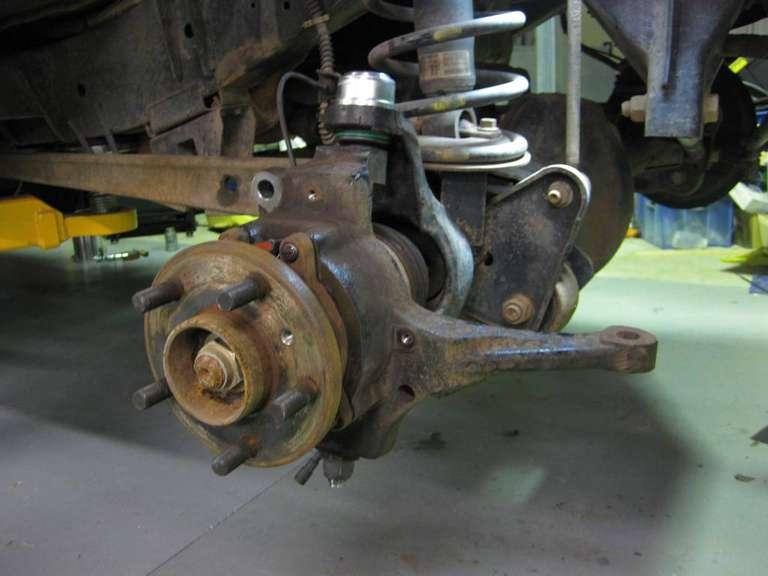

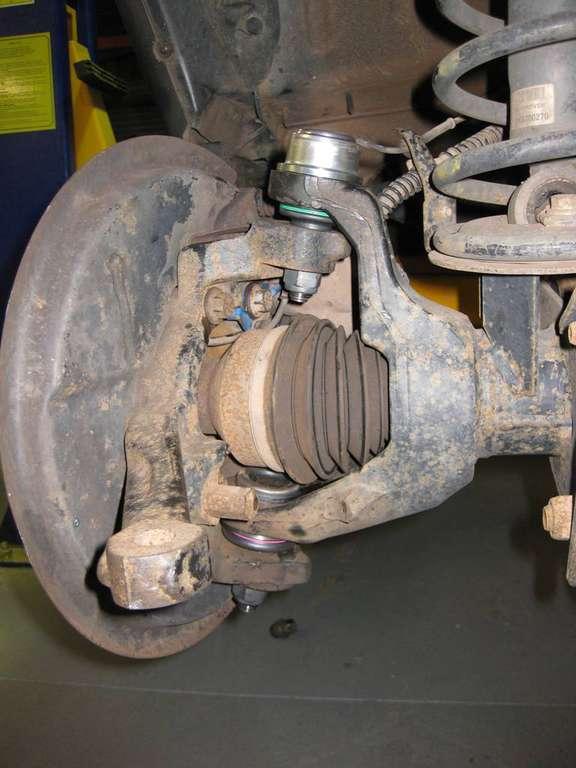

    Drivers side finished:





    Cheers


    Michael

  2. #12
    Join Date
    Aug 2007
    Location
    Brisbane
    Posts
    3,234
    Total Downloaded
    0
    If I had a shed like that...I'd live in it
    MY99 RR P38 HSE 4.6 (Thor) gone (to Tasmania)
    2020 Subaru Impreza S ('SWMBO's Express' )
    2023 Ineos Grenadier Trialmaster (diesel)

  3. #13
    Join Date
    Dec 2008
    Location
    Melbourne, Victoria
    Posts
    157
    Total Downloaded
    0
    Quote Originally Posted by Hoges View Post
    If I had a shed like that...I'd live in it
    I just about do. I spend a lot of time out there. It's a work in progress. I've got the plumbing in for toilet and shower, just haven't built that section yet.


    Cheers


    Michael

  4. #14
    Join Date
    Aug 2007
    Location
    Brisbane
    Posts
    3,234
    Total Downloaded
    0
    Terrific acquisition to have a hoist. The two post ones seem to be very popular. They certainly give you a lot of access. The only prob with the P38 with such a device...apart from ensuring the axles don't drop too far and pop the airbags is that LR implies the P38 is unsafe on a 2 post and recommend against it. Not sure why if it's well positioned and properly balanced.
    cheers
    MY99 RR P38 HSE 4.6 (Thor) gone (to Tasmania)
    2020 Subaru Impreza S ('SWMBO's Express' )
    2023 Ineos Grenadier Trialmaster (diesel)

  5. #15
    Roverlord off road spares is offline AT REST
    Major part of the heart and soul of AULRO.com
    Vendor

    Subscriber
    Join Date
    Jul 2012
    Location
    Tecoma Vic
    Posts
    9,642
    Total Downloaded
    0
    Thanks again Michael, I'm waiting with baited breath to see the procedure on the upper and lower ball joints. Considering how difficult to remove and install them I keep hearing it'll be great to see the tips and trips you used to install them. I think many of us have put off this job and binned it into the too hard basket.
    My rubbers have split, so your video tutorial will certainly spur me on to attempt it.
    I've haven't sworn much lately, so I am saving them up for this type of job
    Cheers,
    Mario


  6. #16
    Join Date
    Dec 2008
    Location
    Melbourne, Victoria
    Posts
    157
    Total Downloaded
    0
    Here's the latest episode. I've split the ball joint fix into 2 vids since it ended up a bit long. Episode #3 is removing the ball joints.


    [ame=http://www.youtube.com/watch?v=yodDswj5qIU]Swearing and Skinned Knuckles Episode #3 - YouTube[/ame]


    Cheers


    Michael

  7. #17
    Join Date
    Dec 2008
    Location
    Melbourne, Victoria
    Posts
    157
    Total Downloaded
    0
    Quote Originally Posted by Hoges View Post
    Terrific acquisition to have a hoist. The two post ones seem to be very popular. They certainly give you a lot of access. The only prob with the P38 with such a device...apart from ensuring the axles don't drop too far and pop the airbags is that LR implies the P38 is unsafe on a 2 post and recommend against it. Not sure why if it's well positioned and properly balanced.
    cheers

    The shock absorbers should stop the suspension drooping so much that the air bags are damaged. You just have to remember that if you are changing the shocks.


    Cheers


    Michael

  8. #18
    Roverlord off road spares is offline AT REST
    Major part of the heart and soul of AULRO.com
    Vendor

    Subscriber
    Join Date
    Jul 2012
    Location
    Tecoma Vic
    Posts
    9,642
    Total Downloaded
    0
    Quote Originally Posted by Disco Mick View Post
    Here's the latest episode. I've split the ball joint fix into 2 vids since it ended up a bit long. Episode #3 is removing the ball joints.


    Swearing and Skinned Knuckles Episode #3 - YouTube


    Cheers


    Michael
    Love it Michael, thanks
    It would have to be a high quality ball joint remover tool, and not a cheap copy as I'd imagine the stress put on that tool would be great.
    what brand of tool are you using if you don't mind me asking.
    Regards,
    Mario


  9. #19
    Zypper Guest
    Quote Originally Posted by Disco Mick View Post
    Here's the latest episode. I've split the ball joint fix into 2 vids since it ended up a bit long. Episode #3 is removing the ball joints.


    Swearing and Skinned Knuckles Episode #3 - YouTube


    Cheers


    Michael
    Thanks Mick, good info there. A little tip I learned many moons ago when, as an apprentice my hammer aiming wasn't too good, when using the hammer method to separate ball joints, tie rod ends etc. leave the nut on the end of the taper a few turns, not only does it protect the threads from errant hammer blows but it stops assemblies falling apart when things finally let go and possibly causing component or mechanic (sorry "Technician") damage!!
    Looking forward to the second half.

    Zypper
    Last edited by Zypper; 9th December 2013 at 02:37 PM. Reason: Add comment

  10. #20
    Join Date
    Jan 1970
    Location
    Wantirna South, Vic
    Posts
    1,459
    Total Downloaded
    0
    Mick, you could run a "give a hand" day for a couple of cars at a time...
    Regards, Will

    Stornoway Grey '09 D3 TDV6 SE, 2015 TERRITORY Engine at 348k
    LLAMS, FYRLYTS, OL D4 Bar
    Safari Snorkel, D4 hitch, ARB CKMA12
