Thread: 2000 Discovery 2 TD5 - Wont start after head gasket replacement :(

  1. 2nd March 2014, 09:10 PM #1
    ryan1980 Guest

    2000 Discovery 2 TD5 - Wont start after head gasket replacement :(

    Hey guys,
    About a month ago i bought a td5 which required a head gasket replacement. The previous owner had already removed the head . I have had the had machined, installed the new gasket, and everything is back together. However i can not get this bloody thing to start!!

    I suspect there is air in the fuel lines but first i would like to make sure i have done a few things correctly.

    On the fuel pressure regulator (on the side of the head) the line with the clip on connector (coming from the fuel tank) goes on the top - correct??

    The tacho does not register anything whilst cranking - is this normal??

    I have compression. I have been purging the lines using the method where you press the accelerator 6 times with the ignition in position 2, for at least the last 2 hours!!! I have also tried starting with the pedal down. Occasionally it kicks a little bit, like it wants to start...

    I can still hear a little gurgling coming from the head or the fuel line , which sounds to me like there is still some air in there. However there are no fuel leaks which i can see...

    Also the M and S lights are on. And there is a wire coming from what i believe is an oil pressure sensor... looks like it should be an earth... this isnt connected. I tried earthing it out - made no difference.

    Cleaned the ecu plugs too - they were a little oily, but again, no difference

    any tips on how to bleed this thing better??? Any suggestions would be greatly appreciated!!!

    Ryan
    Reply With Quote Reply With Quote
  2. 2nd March 2014, 09:38 PM #2
    ScotsD2
    ScotsD2 is offline Master
    Join Date
    May 2013
    Location
    Aberdeen Scotland
    Posts
    195
    Total Downloaded
    0

    Power

    Td5 need plenty of volts to fire hook up to a running
    car with jumper leads and have another go
    M&S usually mean low volts battery flattening with fuel
    pump ECUs charging and starter.
    Reply With Quote Reply With Quote
  3. 3rd March 2014, 12:28 AM #3
    Disco W.A's Avatar
    Disco W.A
    Disco W.A is offline Master Gold Subscriber
    Join Date
    Dec 2008
    Location
    Beechboro Perth
    Posts
    447
    Total Downloaded
    0
    On the fuel pressure regulator (on the side of the head) the line with the clip on connector (coming from the fuel tank) goes on the top - correct

    Will check in the morning and let you know

    The tacho does not register anything whilst cranking - is this normal??

    Yes I think so


    Also the M and S lights are on. And there is a wire coming from what i believe is an oil pressure sensor... looks like it should be an earth... this isnt connected. I tried earthing it out - made no difference.




    The M&Slights is an indication that the battery voltage is low, the second wire on the oil pressure switch is an extra and does not connect to any thing

    Where in Perth are you?
    Reply With Quote Reply With Quote
  4. 3rd March 2014, 06:37 AM #4
    ScotsD2
    ScotsD2 is offline Master
    Join Date
    May 2013
    Location
    Aberdeen Scotland
    Posts
    195
    Total Downloaded
    0

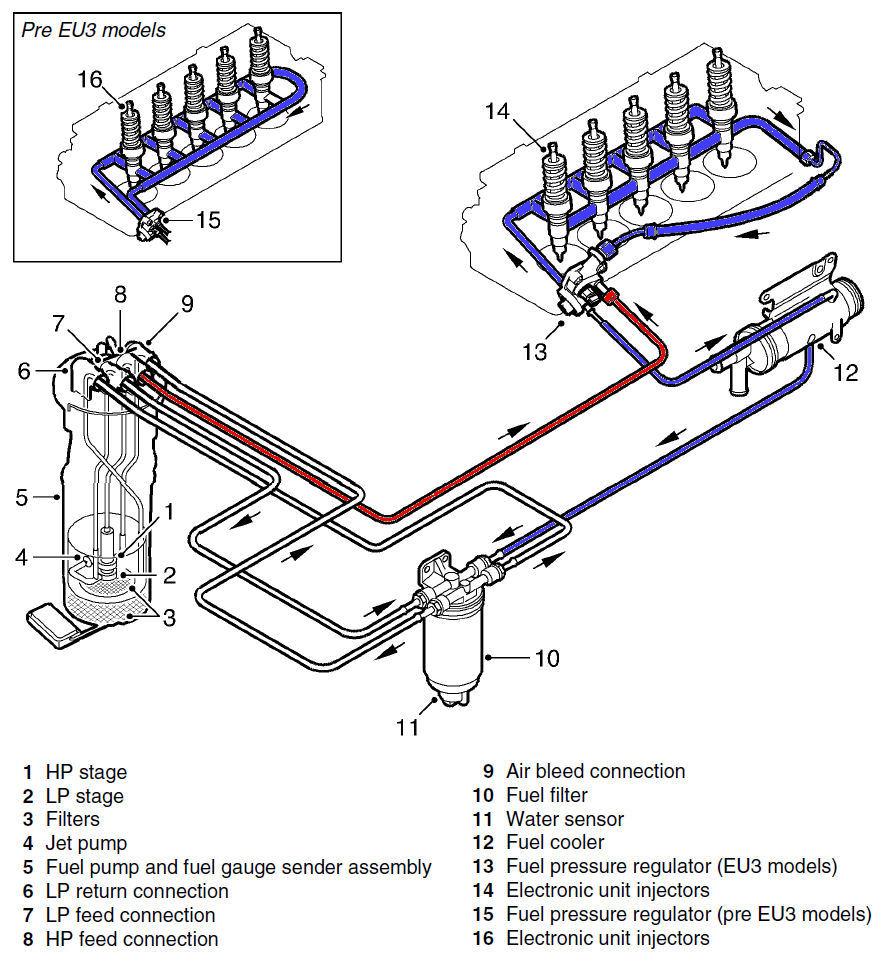

    FPR

    Reply With Quote Reply With Quote
  5. 3rd March 2014, 12:56 PM #5
    ryan1980 Guest
    im in marangaroo . Its cranking pretty hard , ill try again now with the battery fully charged. I might have to work today mate but i appreciate the offer and ill give you a message as soon as im free!
    Reply With Quote Reply With Quote
  6. 3rd March 2014, 01:32 PM #6
    ryan1980 Guest
    I didnt replace the copper washers at the bottom of the injectors and now i'm worried that this is the problem - would this cause no starting at all?

    Also, i only have about 10 litres of fuel in the tank - should i have more?
    Reply With Quote Reply With Quote
  7. 3rd March 2014, 02:39 PM #7
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0
    Were the injectors replaced in their correct order ? They are coded to their own cyclinder . If they are replaced in the wrong position (order) your firing order will be wrong hence no start
    Reply With Quote Reply With Quote
  8. 3rd March 2014, 03:14 PM #8
    strangy
    strangy is offline ChatterBox
    Join Date
    May 2007
    Location
    Australia
    Posts
    2,827
    Total Downloaded
    0
    Quote Originally Posted by rangieman View Post
    Were the injectors replaced in their correct order ? They are coded to their own cyclinder . If they are replaced in the wrong position (order) your firing order will be wrong hence no start
    Sorry this is incorrect .
    The car will start and run despite this.
    The codes are for the ECU to trim the injector appropriately for optimum operation.
    Reply With Quote Reply With Quote
  9. 3rd March 2014, 04:36 PM #9
    justinc's Avatar
    justinc
    justinc is offline Swaggie Vendor
    Join Date
    Aug 2006
    Location
    Kingston, Tassie, OZ.
    Posts
    13,728
    Total Downloaded
    0
    Copper washers are the problem. you MUST replace them or air just keeps getting pushed into the fuel rail from compression pressures

    JC
    The Isuzu 110. Solid and as dependable as a rock, coming soon with auto box😊
    The Range Rover L322 4.4.TTDV8 ....probably won't bother with the remap..😈
    Reply With Quote Reply With Quote
  10. 3rd March 2014, 11:10 PM #10
    ryan1980 Guest
    thanks for all the replies guys. Ian (justfishing) came around today - twice - to help me out He confirmed the timing was correct . I changed the copper washers but unfortunately it has made no difference.

    The diagnostic tester revealed that the injectors are functioning properly. These were all numbered when they were removed and installed back in the correct order.

    We are now suspecting the crank angle sensor - perhaps if it is faulty, the injectors do not work??

    Does anyone know a way of testing it??
    Reply With Quote Reply With Quote
