Thread: Brake controller and factory tow wiring

  1. 14th September 2015, 02:33 PM #1
    Dhickm
    Dhickm is offline Fossicker Supporter
    Join Date
    Sep 2014
    Location
    Sydney
    Posts
    17
    Total Downloaded
    0

    Brake controller and factory tow wiring

    Hi,
    I need to fit an electric brake controller (Tekonsha Primus). I already previously sourced a LR towing loom with a flat pin adaptor, which just plugged in and worked well, but am unsure if I can wire the brake controller through that (via blue pin) or if I have to replace with a new plug, if so what?
    Obviously I want to find the easiest route to having the ability to tow an electric brake trailer.
    Also, if I am doing this, is it worth the extra effort to look at a power plug (Ansderson?) for the trailer? I don't require it just yet, but I would like to future proof if possible.

    many thanks.
    Reply With Quote Reply With Quote
  2. 14th September 2015, 07:41 PM #2
    Outback 1
    Outback 1 is offline ChatterBox Supporter
    Join Date
    Sep 2007
    Location
    Bairnsdale enjoying the rural view no rooftops to see here
    Posts
    2,450
    Total Downloaded
    0
    easiest way is to run a single wire from the controller to the trailer plug
    have a good one :D ken :wasntme:
    MY07 L320 RANGE ROVER SPORT MORE GOODNESS TO COME
    MY03 D2A TD5 EXTRA GOODIE ENHANCED :D now parting from life
    1996 D1 300TDI GONE
    08 ford ranger c/c
    WRECKING DISCOVERY 2
    PM ME FOR WHAT YOU ARE LOOKING FOR
    Reply With Quote Reply With Quote
  3. 14th September 2015, 08:13 PM #3
    rangieman's Avatar
    rangieman
    rangieman is offline Swaggie
    Join Date
    Jan 1970
    Location
    Free Again Thanks Dan
    Posts
    10,150
    Total Downloaded
    0
    Quote Originally Posted by Outback 1 View Post
    easiest way is to run a single wire from the controller to the trailer plug
    x2 Thats what i did . That easy
    Reply With Quote Reply With Quote
  4. 15th September 2015, 06:34 AM #4
    Pedro_The_Swift's Avatar
    Pedro_The_Swift
    Pedro_The_Swift is offline The MOD Father
    Join Date
    May 2003
    Location
    On The Road
    Posts
    30,031
    Total Downloaded
    0

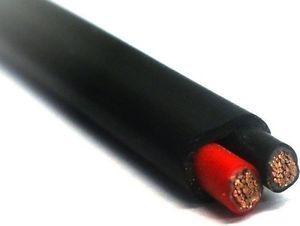

    and this at the same time,,
    "How long since you've visited The Good Oil?"

    '93 V8 Rossi
    '97 to '07. sold.
    '01 V8 D2
    '06 to 10. written off.
    '03 4.6 V8 HSE D2a with Tornado ECM
    '10 to '21
    '16.5 RRS SDV8
    '21 to Infinity and Beyond!

    1988 Isuzu Bus. V10 15L NA Diesel
    Home is where you park it..

    [IMG][/IMG]
    Reply With Quote Reply With Quote
  5. 15th September 2015, 06:46 AM #5
    PhilipA
    PhilipA is offline Swaggie Subscriber
    Join Date
    Jan 1970
    Location
    Avoca Beach
    Posts
    14,152
    Total Downloaded
    0
    I successfully ran the wire into the 7pin and also added a similar earth.
    I used8GA wire so this stretched the rubber sealing sleeve somewhat, but a bit of sealant fixed that.
    Regards Philip A
    Reply With Quote Reply With Quote
