Thread: TD5 Coolant and PAS Pump Assembly Bracket bolt and nut torque settings

Anyone able to advise on the torque settings for the five bolts and nut/stud combination for the Coolant and PAS Pump Assembly Bracket on the TD5?

I cannot find this information in RAVE. It shows the bracket in the diagram on 12-1-2 as 41 and 42, 12-1-3 names the bracket as "Coolant and PAS Pump Assembly Bracket" yet a word search results in no further references in the entire RAVE manual.

I'm fitting the ERR6711 TD5 COOLANT PUMP SIDE SEAL. Have it all apart and at the reassembly stage.

Originally Posted by sierrafery

It seems even lower:

I believe that some confusion exists between the brackets. There is the Coolant and PAS Pump Bracket which is the one that I refer to. This is the one with the o-ring, water pump on the back, ACE and PAS pumps mount to it.

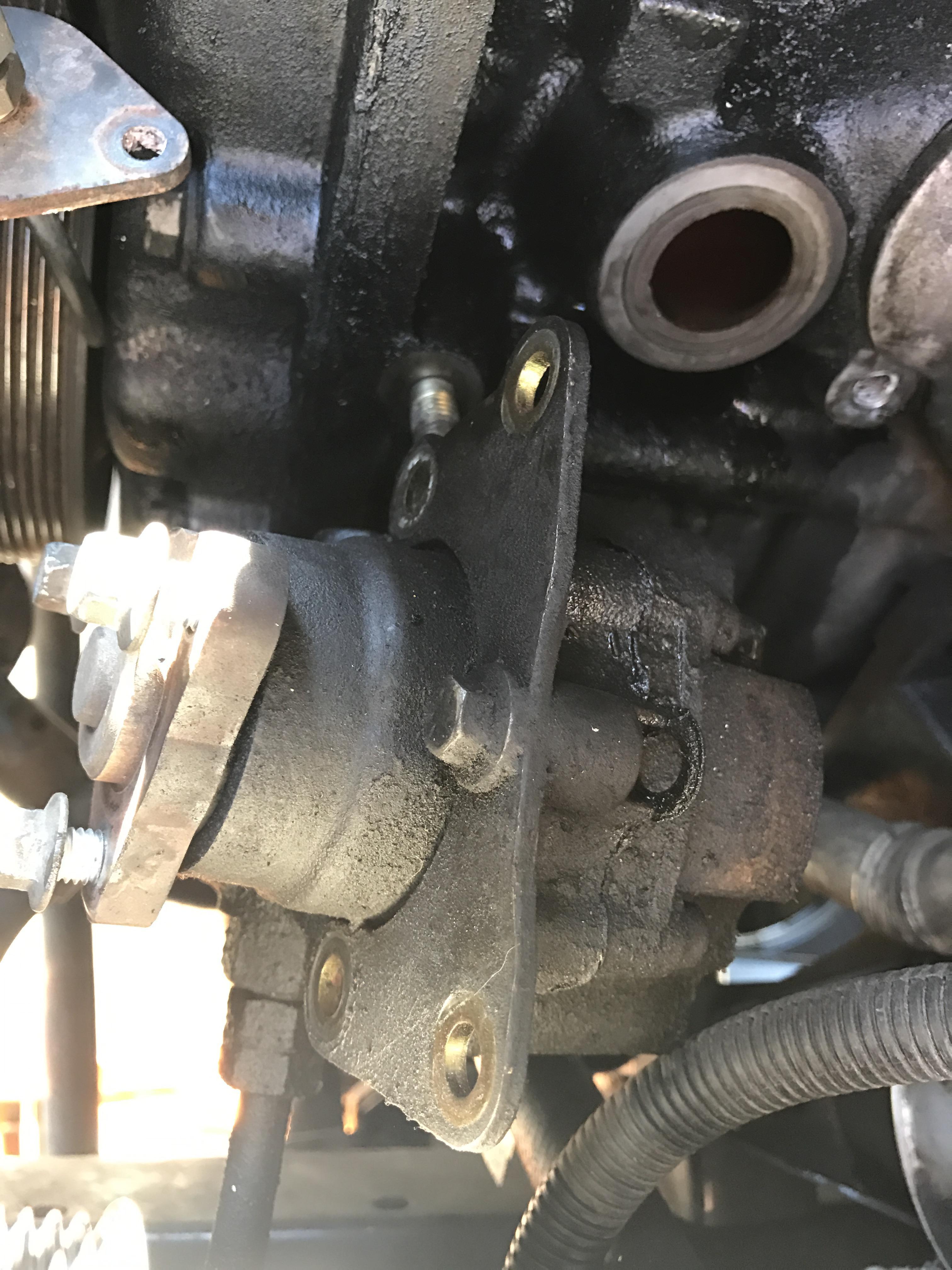

There is also the PAS Pump bracket. This is a little plate type bracket on the PAS pump, see the picture below for illustration. It has four bolts that go through it and one bolt which secures it to the pump assembly. I believe that this is the one which is 27NM, not the large bracket which as JC confirmed above should be much tighter given all the other fruit which hangs on it.
